Stahl SHR 6 - Fleet Angles

BASH_02_1.FM
3 Installation
9

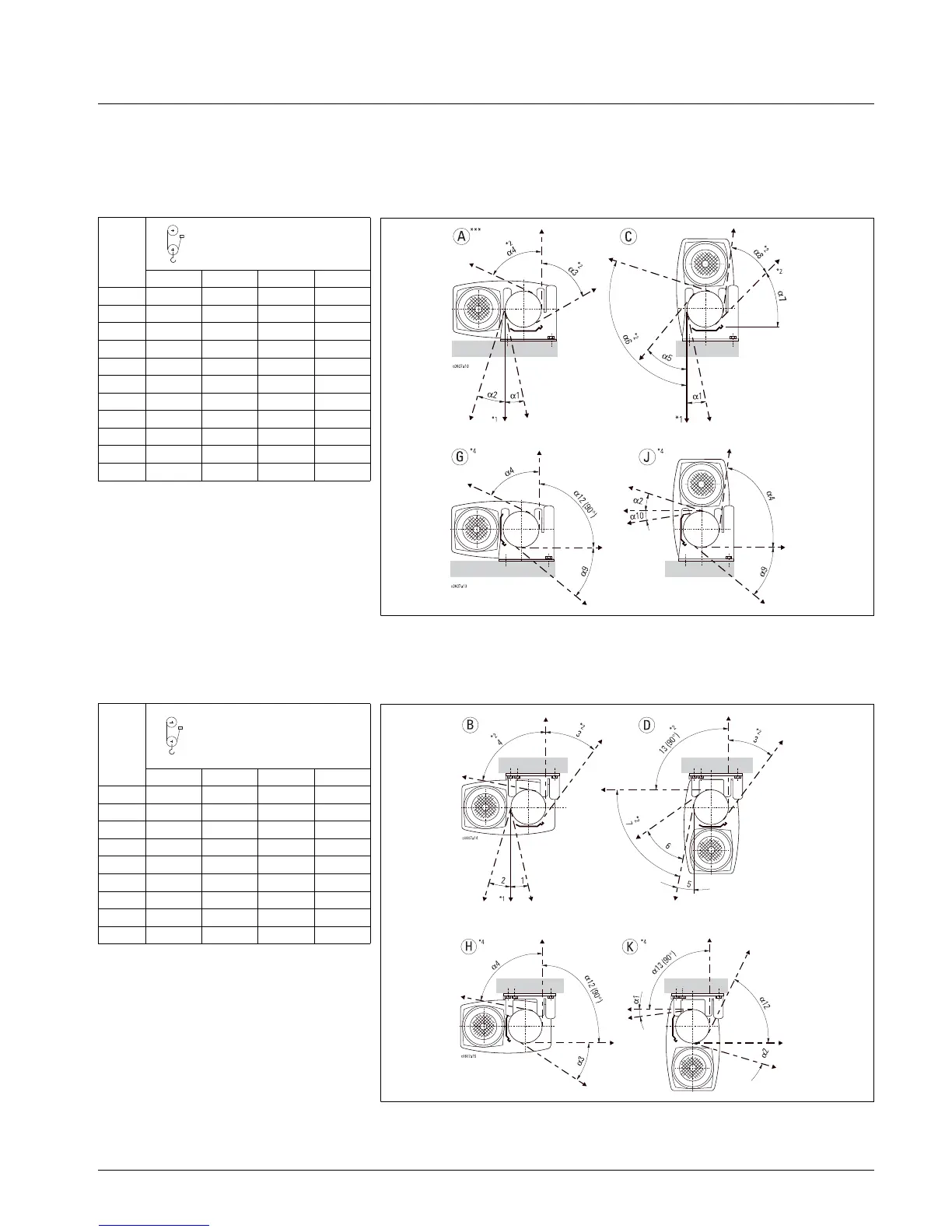

3.2 Fleet angles
3.2.1 Feet at bottom
3.2.2 Feet at top
1/1, 2/2
SH 3 SH 4 SH5 SH6
α14°5°8°8°
α2 23° 13° 20° 18°
α3 27° 30° 30° 30°
α4 74° 73° 76° 80°
α5 30° 30° 30° 25°
α6 113° 103° 110° 108°
α7 83° 81° 60° 60°
α8 11 12° 18° 20°
α9 24° 26° 30° 12°
α10 7° 7° 8° 8°
α12 90° 90° 90° -
SH 3
SH 4
SH 5
SH 6
1/1, 2/2
SH 3SH 4SH 5SH 6
α14°5°8°8°
α2 23° 13° 20° 18°
α3 27° 30° 30° 12°
α4 74° 73° 76° 80°
α5 16° 17° 14° -
α6 34° 32° 36° -
α7 74° 73° 76° -
α12 90° 90° 90° 8°
α13 90° 90° 90° 30°
SH 3
SH 4
SH 5
SH 6
α
α
α
α
α
α
α
α
α
*** Preferred installation position
*1 Standard
*2 By turning rope guide
*4 By turning rope guide and grease pan; version G, H not possible for SH 6
07.04
