Stahl SHR 6 - Getting to Know the Wire Rope Hoist

BASH_02_1.FM
2 Seilzug kennen lernen
7
The modular concept of our series of wire rope hoists permits a multitude of
variations on the basis of series components.
Our certified quality assurance system to DIN ISO 9001/EN 29001 guarantees
consistently high quality.
If you have any questions, for example on hoists modified to customers’ specific
applications, please contact one of our branches or subsidiaries. We will be pleased
to advise you!

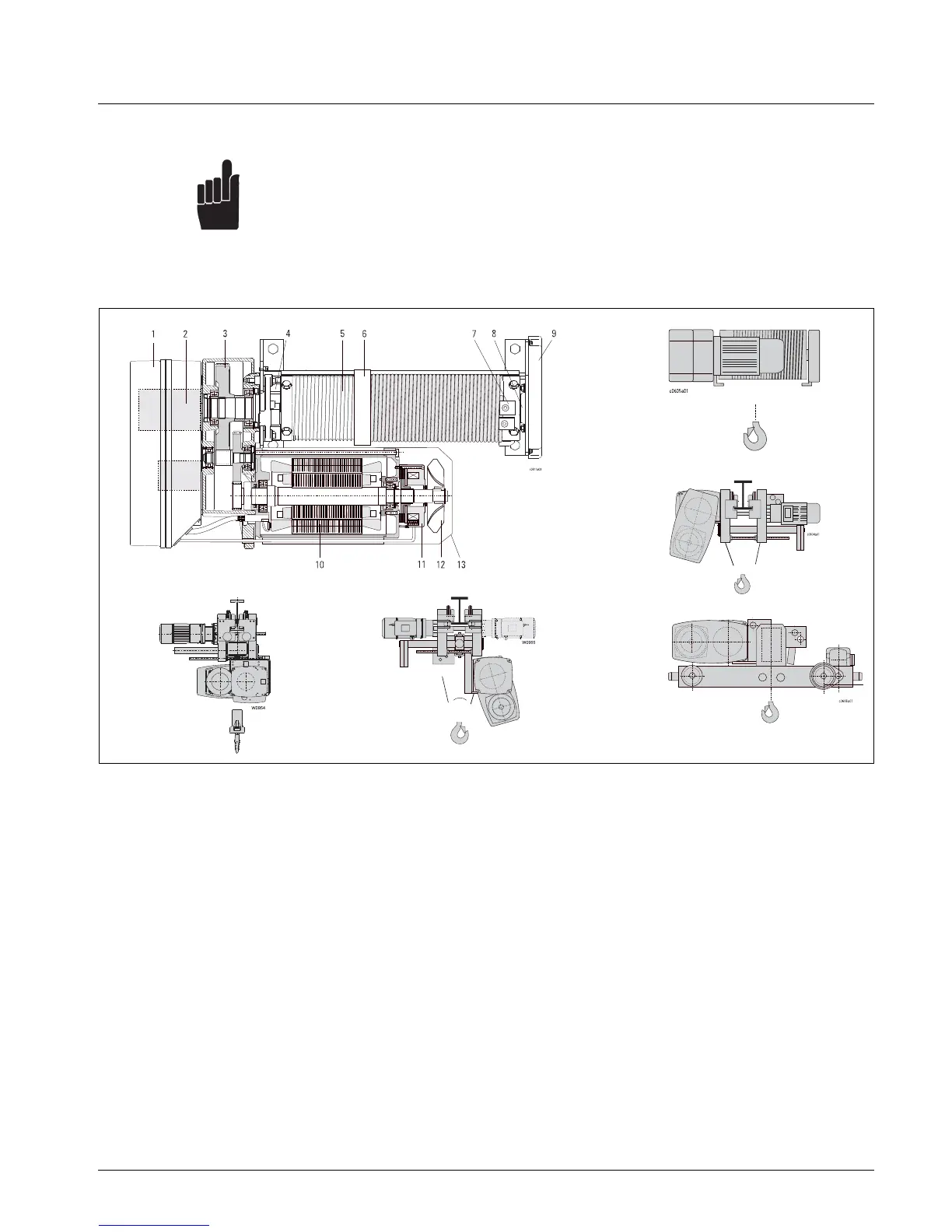

1 Panel box with connection parts
2 Gear limit switch
3 Gear
4 Mounting point for safety brake (SH4 - SH6)
5 Rope drum
6 Rope guide with rope tensioning spring
7 Clamps for rope attachment
8 Rope drum bearing
9 End cover
10 Motor
11 Brake
12 Fan
13 Fan cover
14 Stationary wire rope hoist, hoist for installation
15 Wire rope hoist with "short headroom" monorail trolley
16 Wire rope hoist with "standard headroom" monorail trolley
17 Wire rope hoist with "articulated" monorail trolley
18 Wire rope hoist with double rail crab
14
15
18
16
17
09.07
