ASSEMBLY INSTRUCTIONS
STEP 3

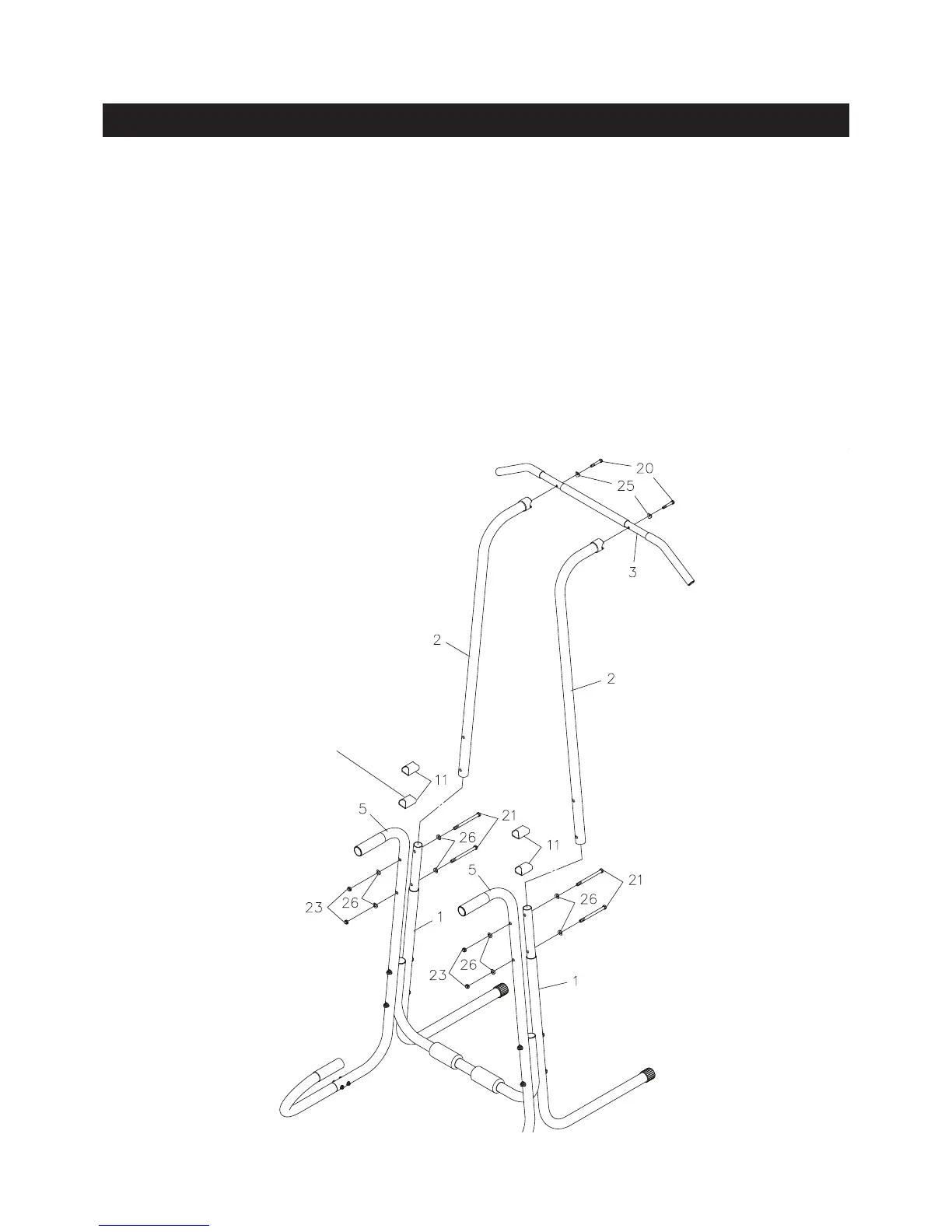

Insert the two UPRIGHTS(2) onto the MAIN STANDS(1). Place a ARC WASHER(M10)(26) onto a
HEX BOLT(M10x1.5x130mm)(21). Slide a SPACER TUBE(11) between the UPRIGHT(2) and the DIP
STAND(5), then insert the bolt through all these tubes and bolt them together with a ARC WASHER(M10)
(26) and a NYLOCK NUT(M10x1.5)(23). Repeat to assemble the other SPACER TUBES(11) between
the UPRIGHT(2) and the DIP STAND(5).
NOTE: When assembling the SPACER TUBE(11), start from the one at the lower position.
STEP 4
Attach the PULL-UP BAR(3) to both the UPRIGHTS(2) with HEX BOLTS(M8x1.25x45mm)(20) and
ARC WASHERS(M8)(25).
SECURELY TIGHTEN ALL OF THE BOLTS FROM STEP 1 TO STEP 4.
8
To assemble the SPACER
TUBES(11), start from the one
at the lower position.
