Place all parts from the box in a cleared area and position them on the oor in front of you. Remove
all packing materials from your area and place them back into the box. Do not dispose of the
packing materials until assembly is completed. Read each step carefully before beginning. If you
are missing a part please call our toll-free number for assistance 1-800-375-7520 or e-mail us at
customerservice@staminaproducts.com.
ASSEMBLY INSTRUCTIONS
NOTE: DO NOT SECURELY TIGHTEN ALL BOLTS UNTIL STEP 4.
STEP 1

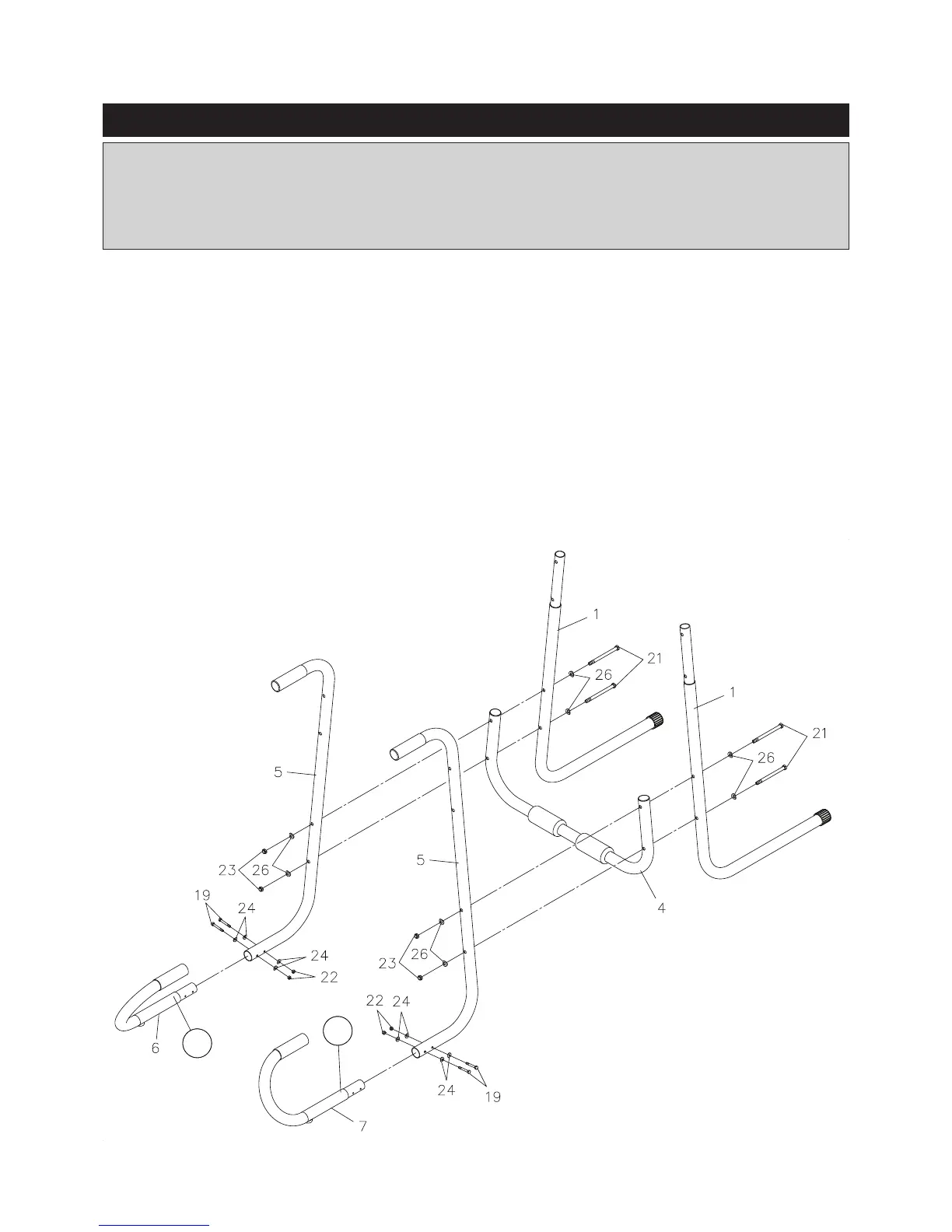

Bolt the MAIN STAND(1), CROSS BAR(4), and DIP STAND(5) together with HEX BOLTS
(M10x1.5x130mm)(21), ARC WASHERS(M10)(26), and NYLOCK NUTS(M10x1.5)(23). Repeat on
other side.
STEP 2
There is an “L” decal on the LEFT PUSH-UP BAR(6), and an “R” decal on the RIGHT PUSH-UP
BAR(7). Insert the LEFT PUSH-UP BAR(6) into the DIP STAND(5) on the left side and secure with HEX
BOLTS(M6x1x45mm)(19), ARC WASHERS(M6)(24), and NYLOCK NUTS(M6x1)(22). Repeat on the
right side.
7
R
L
LEFT
RIGHT
