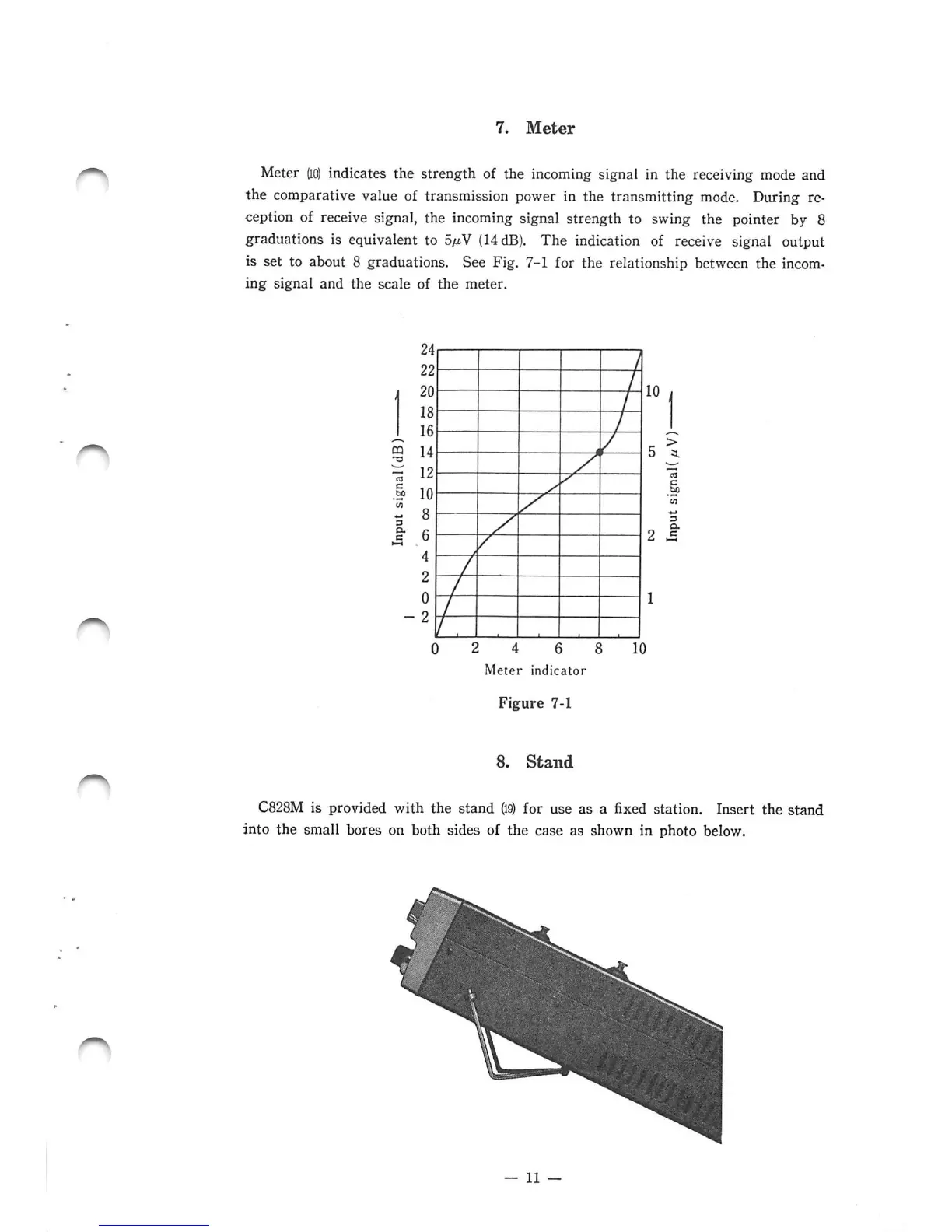

7,
Meter
Meter
(lO)
indicates
the
strength
of
the
incoming
signal
in
the
receiving
mode
and
the
comparative
value
of
transmission
power
in
the
transmitting
mode.
Düring
re-
ception
of
receive
signal,
the
incoming
signal
strength
to
swing
the
pointer
by
8
graduations
is
equivalent
to
5fiY
(14
dB).
The
indication
of
receive
signal
Output
is
set
to
about
8
graduations.
See
Fig.
7-1
for
the
relationship
between
the
incom
ing
signal
and
the
scale
of
the
meter.
14
<0
.1
10
2
4
6
8
Meter
indicator
Figure
7-1
8.
Stand
C828M
is
provided
with
the
stand
(i9)
for
use
as
a
fi
xed
Station.
Insert
the
stand
into
the
small
bores
on
both
sides
of
the
case
as
shown
in
below.
-
11
—
