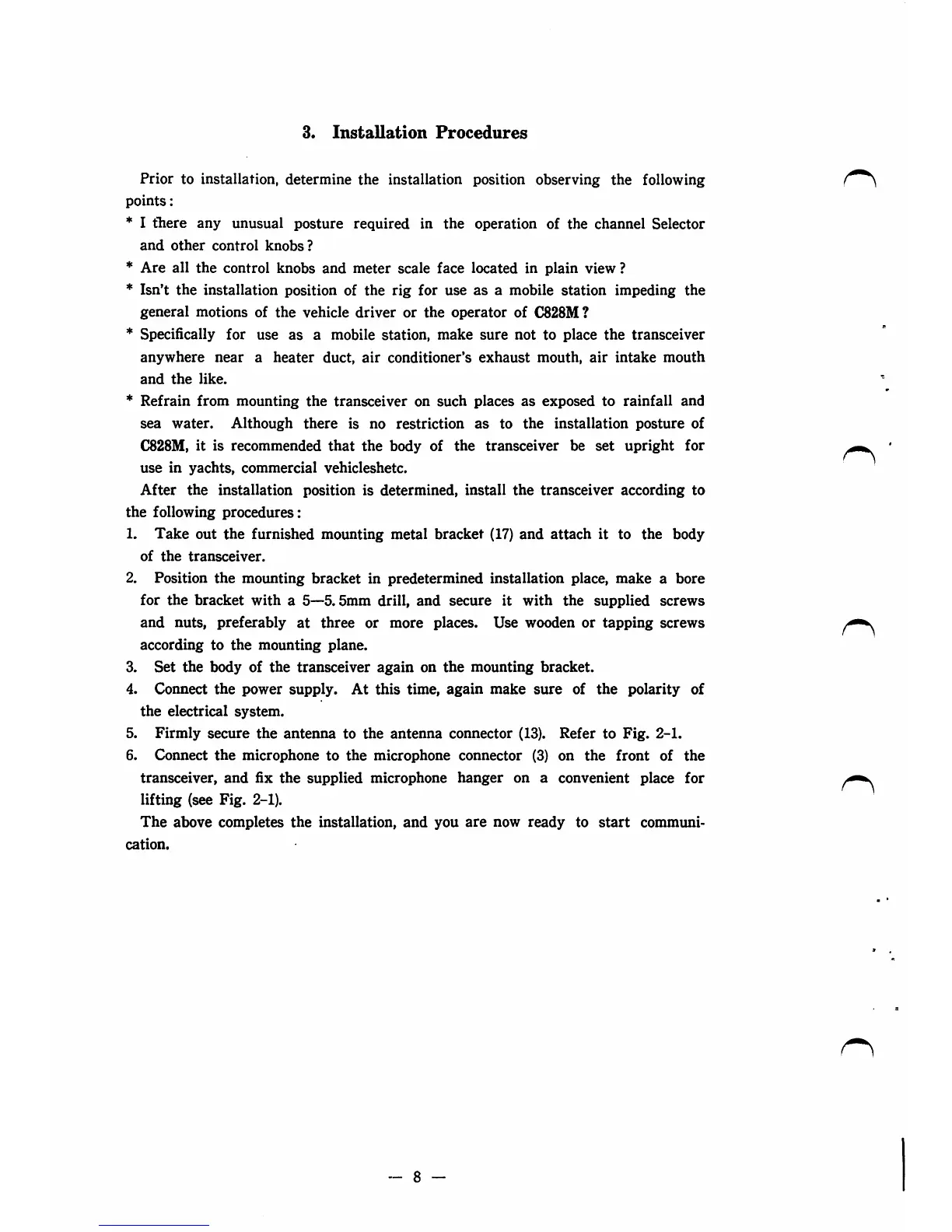

3. Installation Procedures
Prior to Installation, determine the instaliation position observing the following
Points:
* I fhere any unusual posture required in the Operation of the Channel Selector
and other control knobs?
* Are all the control knobs and meter scale face located in piain view ?
* Isn't the instaliation position of the rig for use as a mobile Station impeding the
general motions of the vehicle driver or the Operator of C828M?
* Specifically for use as a mobile Station, make sure not to place the transceiver
anywhere near a heater duct, air conditioner's exhaust mouth, air intake mouth
and the like.
* Refrain from mounting the transceiver on such places as exposed to rainfall and
sea water. Although there is no restriction as to the Installation posture of
C828M, it is recommended that the body of the transceiver be set upright for
use in yachts, commercial vehicleshetc.
After the instaliation position is determined, install the transceiver according to
the following procedures:
1. Take out the furnished mounting metal bracket (17) and attach it to the body
of the transceiver.
2. Position the mounting bracket in predetermined instaliation place, make a bore
for the bracket with a 5—5.5mm drill, and secure it with the supplied screws
and nuts, preferably at three or more places. Use wooden or tapping screws
according to the mounting plane.
3. Set the body of the transceiver again on the mounting bracket.
4. Connect the power supply. At this time, again make sure of the polarity of
the electrical system.
5. Firmly secure the antenna to the antenna connector (13). Refer to Fig. 2-1.
6. Connect the microphone to the microphone connector (3) on the front of the
transceiver, and fix the supplied microphone hanger on a convenient place for
lifting (see Fig. 2-1).
The above completes the instaliation, and you are now ready to start commimi-
cation.
