11. Accessory Terminal

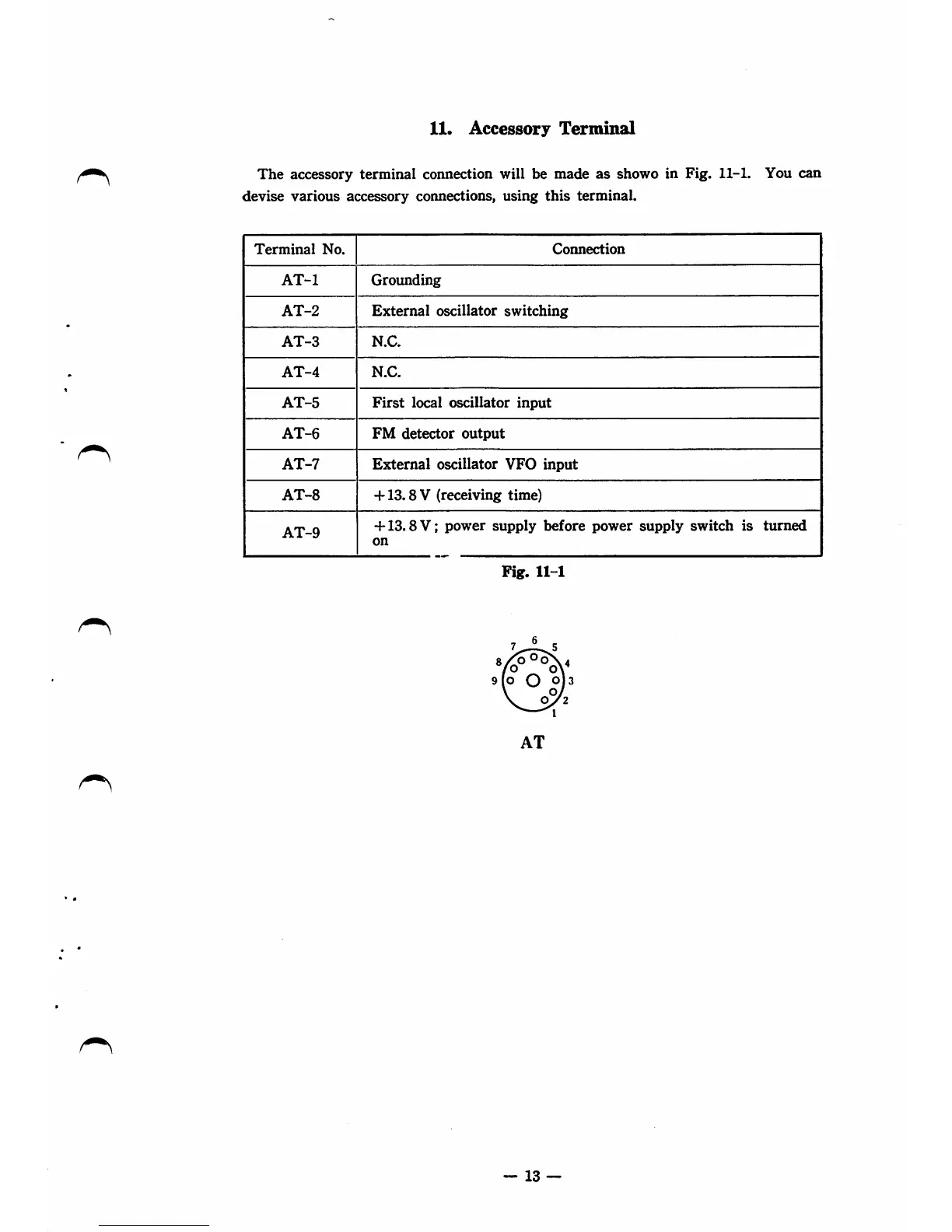

The accessory terminal connection will be made as showo in Fig. 11-1. You can
devise various accessory connections, using this terminal.
Terminal No.
Connection
AT-1 Grounding
AT-2 External oscillator switching
AT-3 N.C.
AT-4 N.C.
AT-5
First local oscillator input
AT-6
FM detector Output
AT-7 External oscillator VFO input
AT-8 +13.8 V (receiving time)
AT-9
+13.8 V; power supply before power supply switch is turned
on
Fig. 11-1
