7
OFF/O
ON/I
3
C
D

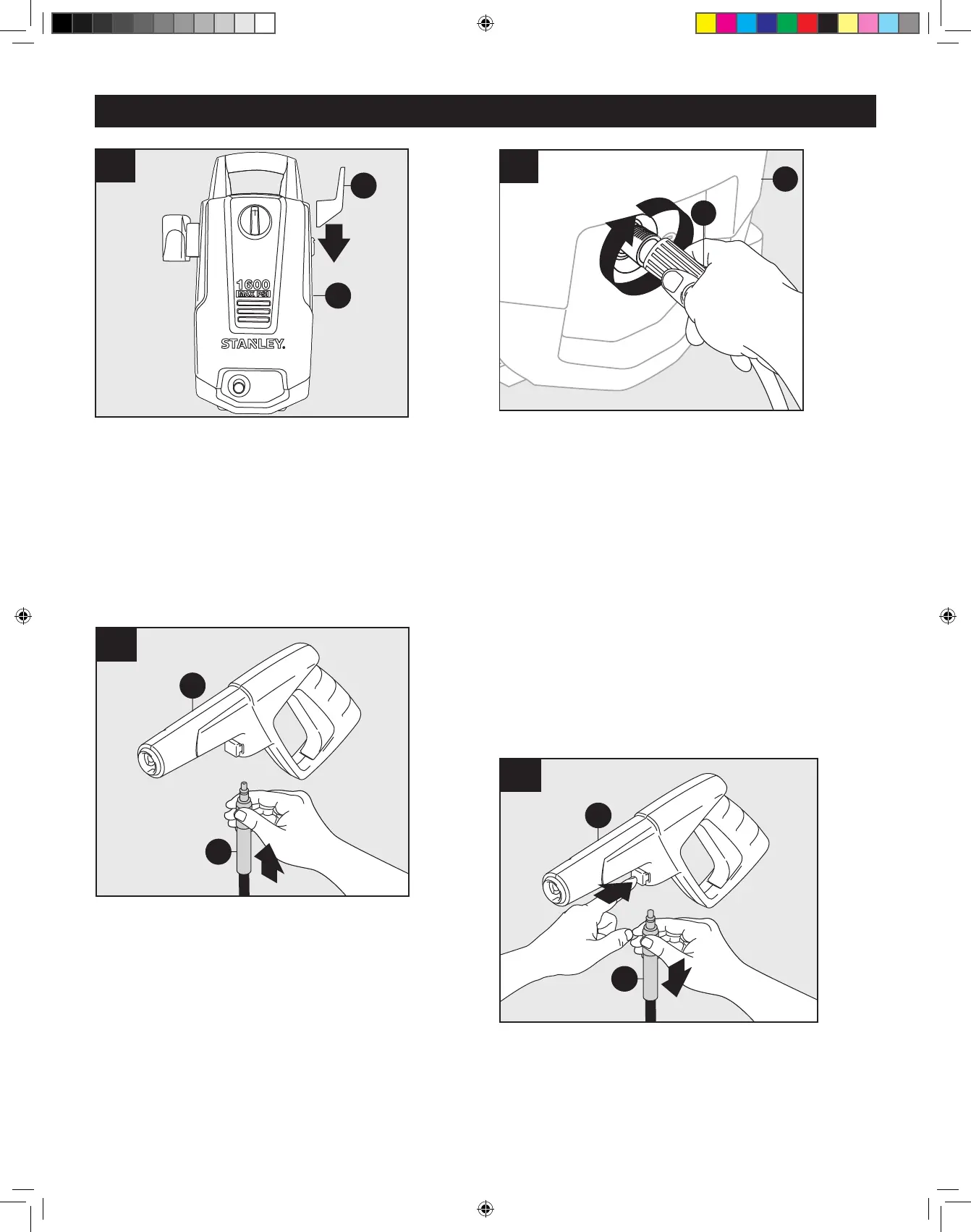

Slide cord hook holster (D) onto right side, when fac-
ing unit, of power washer unit (C) as shown.
Note: This step does not require any screws.
4
C
E
Soft PVC High Pressure Hose Assembly
Screw Soft PVC high pressure hose (E) clockwise onto
bottom front of power washer unit (C). Pull back collar
and insert o-ring post into water outlet far enough so
collar can thread onto outlet threads until hand tight.
If it takes fewer than six turns you have not properly
tightened the Soft PVC high pressure hose fitting. It is
easier to position the power washer in front of you to
ensure that the threads are started correctly. Failure to
properly tighten Soft PVC high pressure hose will result
in the hose slipping or popping off immediately upon
turning unit on. Do not worry about damage if this
occurs–just reinstall and take extra care when screwing
on the Soft PVC high pressure hose fitting.
Note: DO NOT use pliers or locking pliers to tighten.
5
E
F
Connect the other end of Soft PVC high pressure
hose (E) to spray gun (F) by inserting the silver metal
tip of Soft PVC high pressure hose into the fitting just
ahead of trigger guard. It will lock into spray gun with
a “click”. Confirm hose is locked into spray gun by
slightly pulling on hose. The hose is now securely at-
tached to spray gun.
Note: DO NOT press button on underside of gun
when connecting hose to gun.
To release hose (E) from spray gun (F), press button on
underside of gun toward trigger guard. The hose will
slide out from connection.
