8
ASSEMBLY INSTRUCTIONS

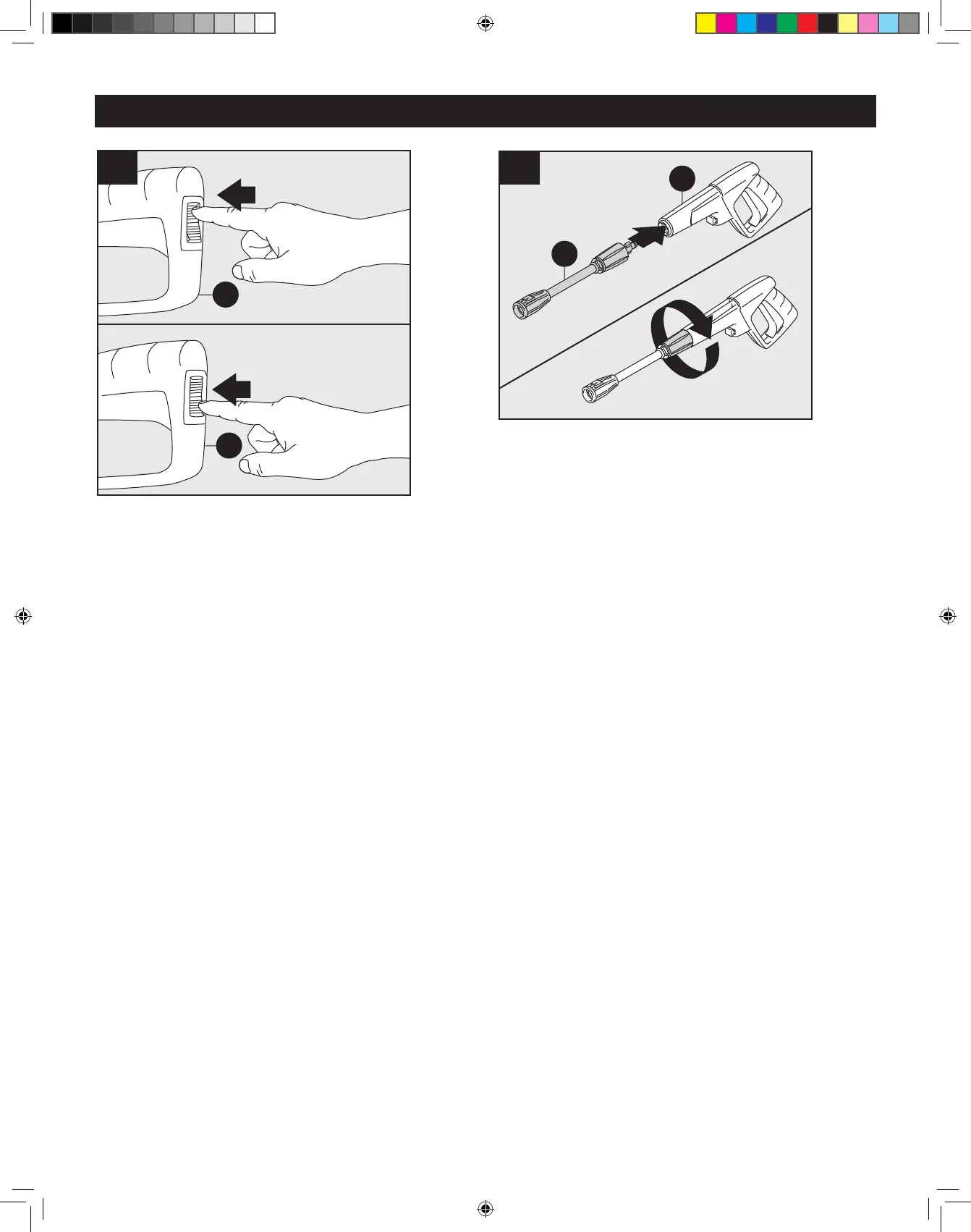

Locking Spray Gun (before Lance installation)
To lock trigger of spray gun (F), point gun away from
you and press bottom half of lock button to engage
lock. Squeeze or pull trigger to make sure it is locked.
ALWAYS leave lock button in locked position when
not in use. This ensures the gun is in “safe” mode until
it is ready for use. To unlock, press top half of lock
button to release.
Note: The trigger lock prevents trigger from being ac-
cidentally engaged.
Lock
Unlock
7
F
F
1
2
8
J
F
Extension Lance installation
With spray gun (F) in locked position, attach extension
lance (J) directly to spray gun. Insert lance extension
into gun, pushing together and turning clockwise
simultaneously. Turn the extension collar clockwise
to lock into place. To remove extension lance (J), turn
extension collar counterclockwise to unlock, then
push together and turn counterclockwise to release.
Note: The extension lance must be inserted in gun
before using any of the other attachments, and
in place for storage. It is recommended that once
extension is connected to leave it in place.
