The Midilift SLplus is a hydraulic cabin platform lift for the moving of persons between a
number of levels. Its operation differs from a standard passenger lift in that it is limited in
speed to 0.15m/s.
LIFT OPERATION FROM THE LANDING
LIFT OPERATION FROM THE LANDINGLIFT OPERATION FROM THE LANDING
LIFT OPERATION FROM THE LANDING

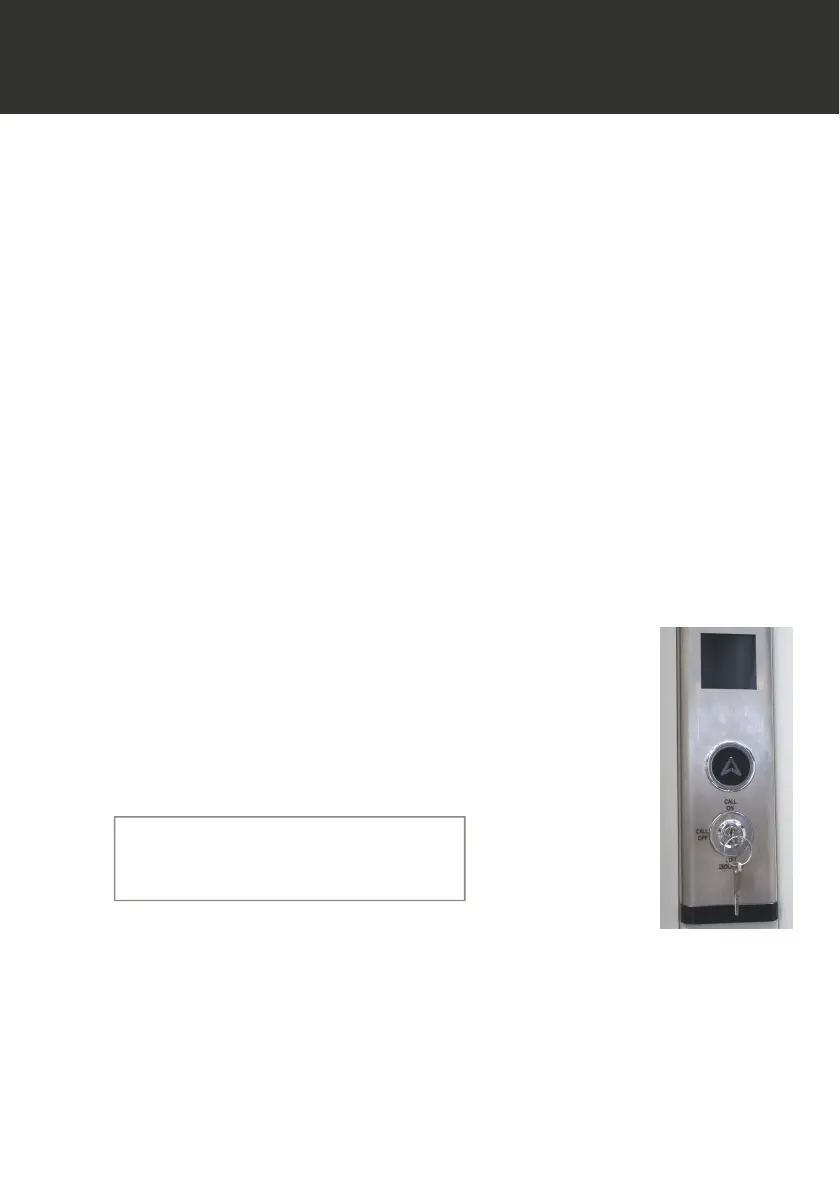

 As you approach any entrance to the lift you will find a landing control faceplate.
 These faceplates may differ slightly from this picture. Digital display and keyswitch are
optional parts but every landing will have a button for calling the lift or unlocking the
door.
 As the button is pressed, the light around it will illuminate acknowledging it activation.
 If the lift is at the same level, the door will unlock allowing the user to manually open the
door and enter the lift.
 If the lift is at a different level, the button will remain illuminated and the lift called to the
landing that the button is pressed. When the platform arrives, the door will unlock
allowing the user to manually open the door and enter the lift.
KEYSWITCH OPERATION
KEYSWITCH OPERATIONKEYSWITCH OPERATION
KEYSWITCH OPERATION
 At the lowest level, the keyswitch can be used to isolate
the lift. By turning the keyswitch to the ‘Lift off’ position
the whole lift can be isolated to stop it being used.*
 Turn the keyswitch to ‘On’ to enable the lift again and
allow five seconds for the lift to reset.
 If the keyswitch has an ‘Off’ position then this can be
used to only isolate the button at that landing. This
option means that the lift can be only be accessed by
those with the key.
Digital Display
Unit
Call Button
Keyswitch
*
This is the preferred method for turning the lift off. In this state the batteries on the lift will
continue to be charged and lift use disabled. This is not the case if the lift is isolated at the
main power source. Loss of power will mean that the lift will continue to operate in battery
back up mode.
‘
‘‘
‘Lift Off
Lift OffLift Off
Lift Off’
’ ’
’ -
--
- Isolate lift
Isolate liftIsolate lift
Isolate lift
‘
‘‘
‘Off
OffOff
Off’
’ ’
’ -
--
- Isolate button only
Isolate button onlyIsolate button only
Isolate button only
‘
‘‘
‘On
OnOn
On’
’ ’
’ -
--
- Lift operational
Lift operationalLift operational
Lift operational
