A vertical platform lift intended primarily for the transportation of people with impaired
mobility, including wheelchair users, the elderly, parents with pushchairs etc. The Midilift
is designed to carry the majority of Type A and B wheelchairs, but not Type C
wheelchairs or electric scooters due to their weight and size.
The Midilift SL has a full height door on all levels (model shown to the left). The Midilift GL
has a half height gate at the top landing but has no other operational differences.
LIFT OPERATION FROM THE LANDING
LIFT OPERATION FROM THE LANDINGLIFT OPERATION FROM THE LANDING
LIFT OPERATION FROM THE LANDING

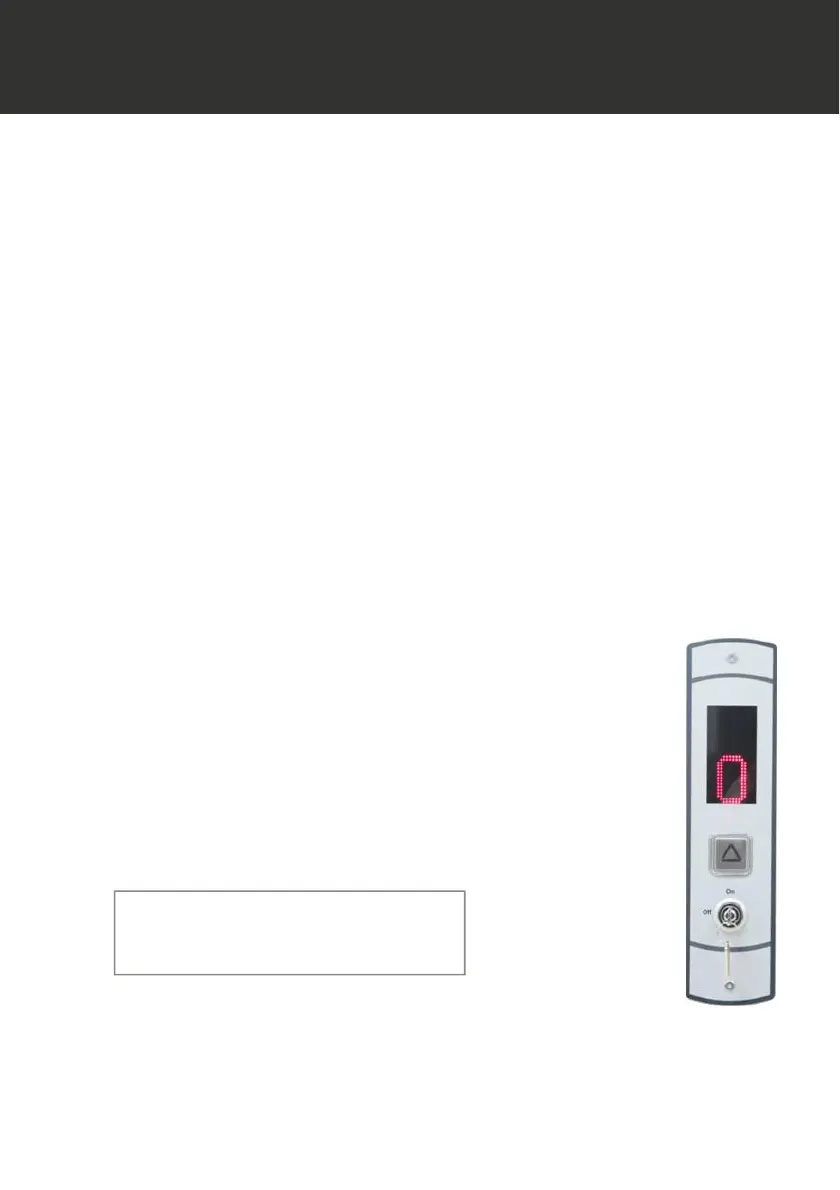

On any entrance to the lift you will find a landing control faceplate (below).
Digital display and keyswitch are optional parts but every landing will have a button for
calling the lift and unlocking the door.
As the button is pressed, the light around it will illuminate acknowledging its activation.
If the lift is at the same level, the door will unlock allowing the user to manually open the
door and enter the lift.
If the lift is at a different level, the button will remain illuminated and the lift called to the
landing that the button is pressed. When the platform arrives, the door will unlock
allowing the user to manually open the door and enter the lift.
KEYSWITCH OPERATION
KEYSWITCH OPERATIONKEYSWITCH OPERATION
KEYSWITCH OPERATION
At the lowest level, the keyswitch can be used to isolate
the lift. By turning the keyswitch to the ‘Lift off’ position the
whole lift can be isolated to stop it being used.*
Turn the keyswitch to ‘On’ to enable the lift again and
allow five seconds for the lift to reset.
If the keyswitch has an ‘Off’ position then this can be
used to only isolate the button at that landing. This option
means that the lift can be only be accessed by those with
the key.
MI D I LI F T G L / S L PL AT F
MI D I LI F T G L / S L PL AT FMI D I LI F T G L / S L PL AT F
MI D I LI F T G L / S L PL AT F O RM L I F T
OR M L I F TOR M L I F T
OR M L I F T
Digital Display
Unit
Call Button
Keyswitch
‘
‘‘
‘Lift Off
Lift OffLift Off
Lift Off’
’ ’
’
-
--
-
Isolate lift
Isolate liftIsolate lift
Isolate lift
‘
‘‘
‘Off
OffOff
Off’
’ ’
’
-
--
-
Isolate button only
Isolate button onlyIsolate button only
Isolate button only
‘
‘‘
‘On
OnOn
On’
’ ’
’
-
--
-
Lift operational
Lift operationalLift operational
Lift operational
*
This is the preferred method for turning the lift off. In this state the batteries on the lift will
continue to be charged and lift use disabled. This is not the case if the lift is isolated at the
main power source. Loss of power will mean that the lift will continue to operate in battery
back up mode.
