– 33 –
10-4. Electrical Characteristics
10-4-1. U Model
(1) Input Voltage 100 to 240 V AC, 50/60 Hz
(2) Current Consumption Operating: Approx. 40 W (at ASCII printing)
Stand-by: Approx. 3 W
10-2. Auto Cutter Specifications
(1) Cutting frequency Max. 20 cuts per minute
(2) Thickness of paper 65~85
µ
m
10-3. Interface
(1) Specifications USB 2.0 full speed
Printer class and vendor class compatible
(2) Connector
U Model Type B
PU Moedl Type B and PoweredUSB connector

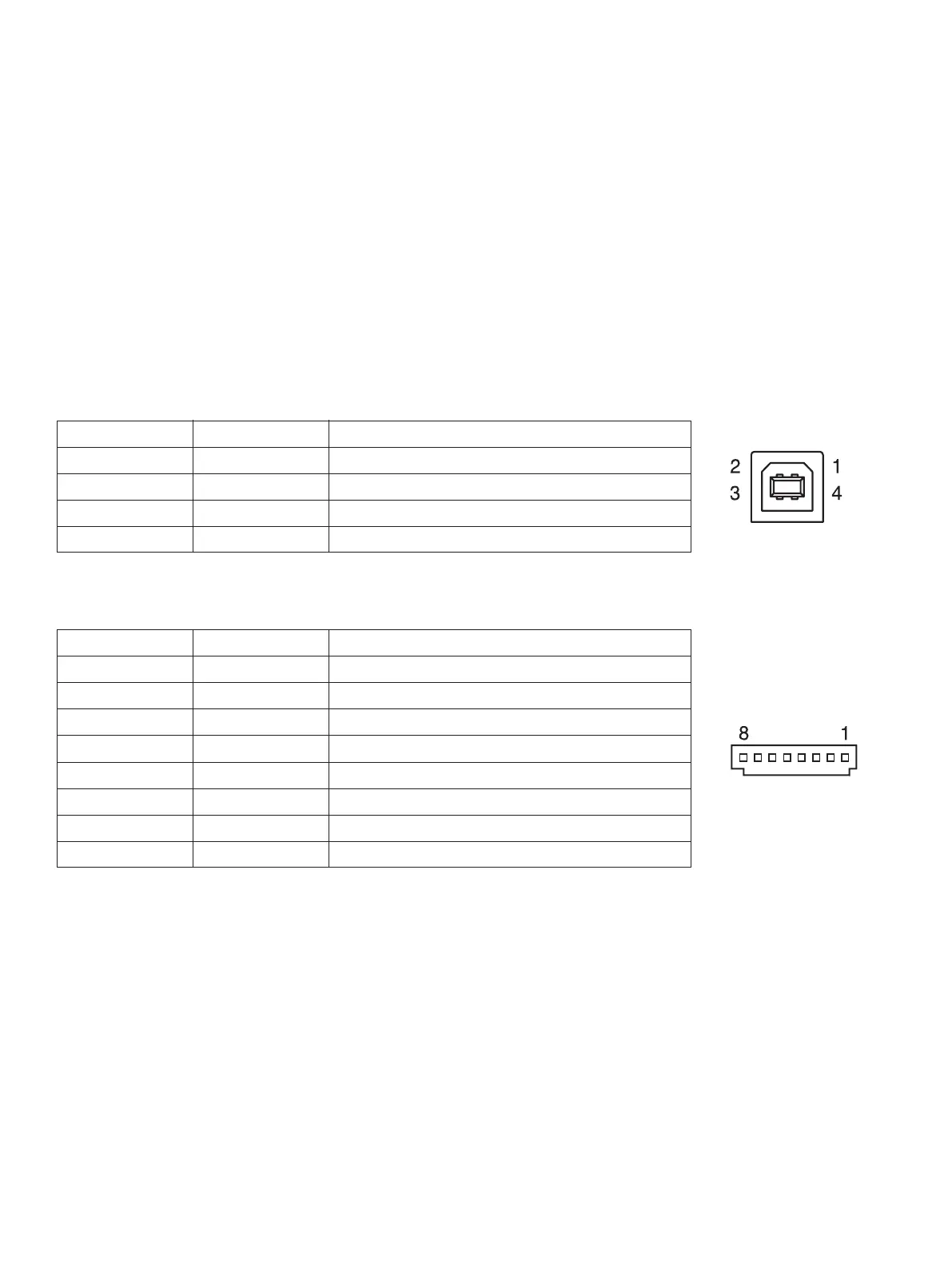

Type B connector:
DUSB-BRA42-T11(D2)-FA (manufacturer: DDK)
Pin No. Signal name Function
1 VBUS USB Power pin (+5V DC)
2 D - Serial Date -
3 D + Serial Date +
4 GND Signal ground
PoweredUSB connector:
69913-104LF (manufacturer: FCI)
Pin No. Signal name Function
1 F-GND Frame ground
2 +24V +24V DC
3 GND Signal ground
4 D + Serial Date +
5 D - Serial Date -
6 VBUS USB Power pin (+5V DC)
7 +24V +24V DC
8 F-GND Frame ground
