Star Micronics TUP900 Series - Board Chassis Unit

– 20 –
A
1
2
3
4
5
6
6
7
7
7
8
A
11 -
11-1 37497200 CONTROL BOARD UNIT TUP9 1 O
11-2 37490530 BOARD CHASSIS L ASSY TUP9 1 S
11-3 37220200 SUB-BOARD UNIT PBD-9 1 O
11-4 37220001 MAIN LOGIC BOARD UNIT TBD9 1 O
11-5 30721760 CABLE UNIT 6X220CC TUP9 1 S
11-6 04991254 CORD CLAMP EDS-1208U 2 S
11-7 01903030 SCREW TR 3-4 FL 7 S
11-8 00630504 SCREW TR 3-5 2 S
DRWG.NO. REV. PARTS NO. PARTS NAME Q'TY REMARKS RANK

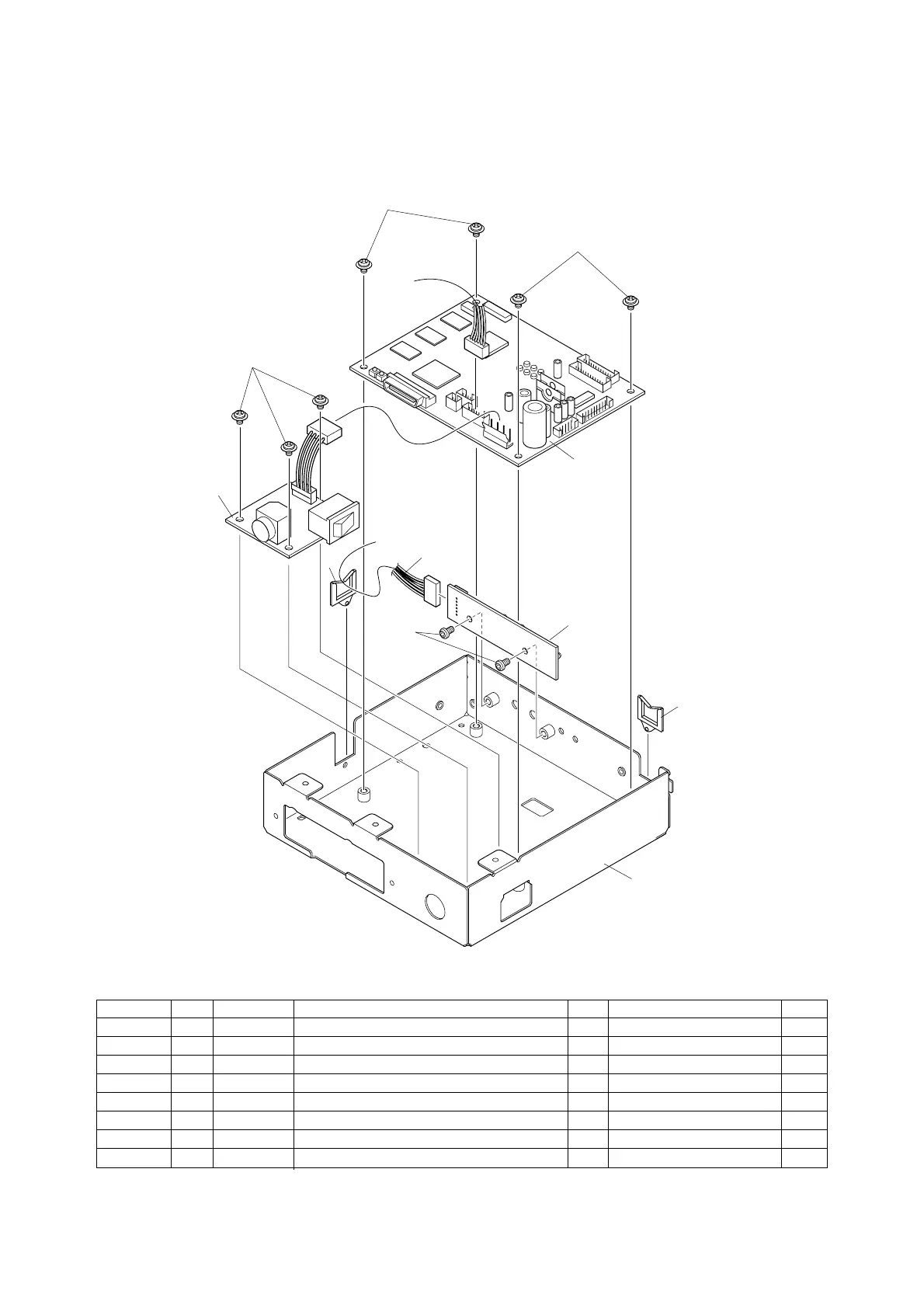

3-3. Board chassis Unit
