6
600-7919 Rev A

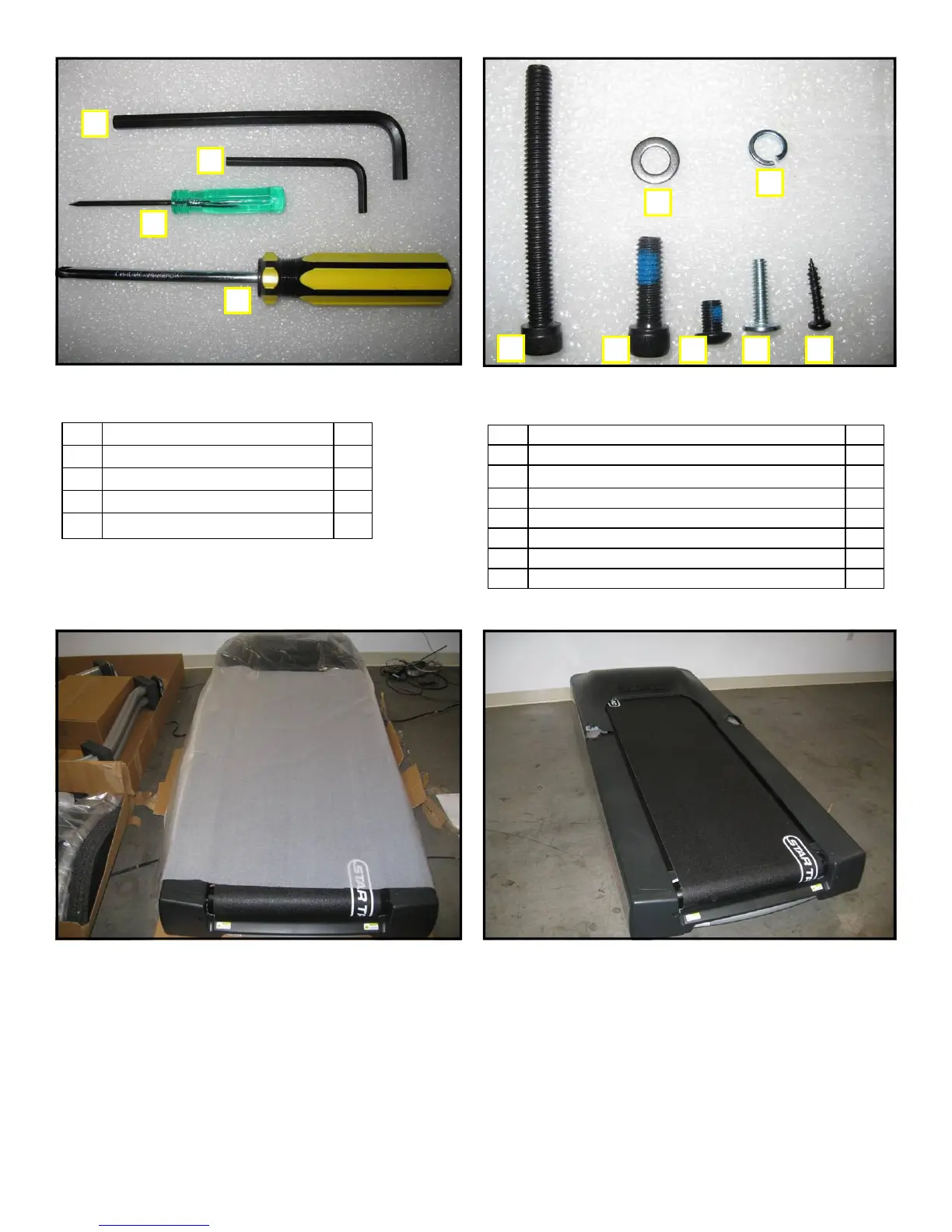

Step 9.
Verify tools included in the hardware kit :
Step 10.
Verify hardware included in the hardware kit:
Step 12.
With a helper, lift the treadmill frame assembly
from the shipping crate platform and place it in
the location where it will be used. Make sure the
unit is placed near a power outlet.
Caution: The motor shroud end of the frame assem-
bly is very heavy. It may require two people to lift this
end when moving the frame assembly.
Step 11.
Remove the packaging materials from the
frame assembly with motor shroud.
Item Description QTY
1
Hex (Allen) key, 1/4”
1
2
Hex (Allen) key, 5/32”
1
3
Screwdriver (blade-tip), 3/32”
1
4
Screwdriver, Phillips, #2
1
Item Description QTY
1 Screw 5/16”-18x3.0”, Socket Head Cap 2
2 Screw 5/16”-18x1.0”, Socket Head Cap 12
3 Screw 1/4”-28 3/8”, Button Head Socket Cap 4
4 Screw #10-24 x 3/4, Truss Head, 4
5 Screw M4x.7, 19mm, Pan Head, 14
6 Washer, Flat, 5/16” I.D. x 1.2” O.D. 14
7 Washer, Split Lock, 5/16” 14
1
2 3 4 5
6
7
1
3
2
4
To Next Page
