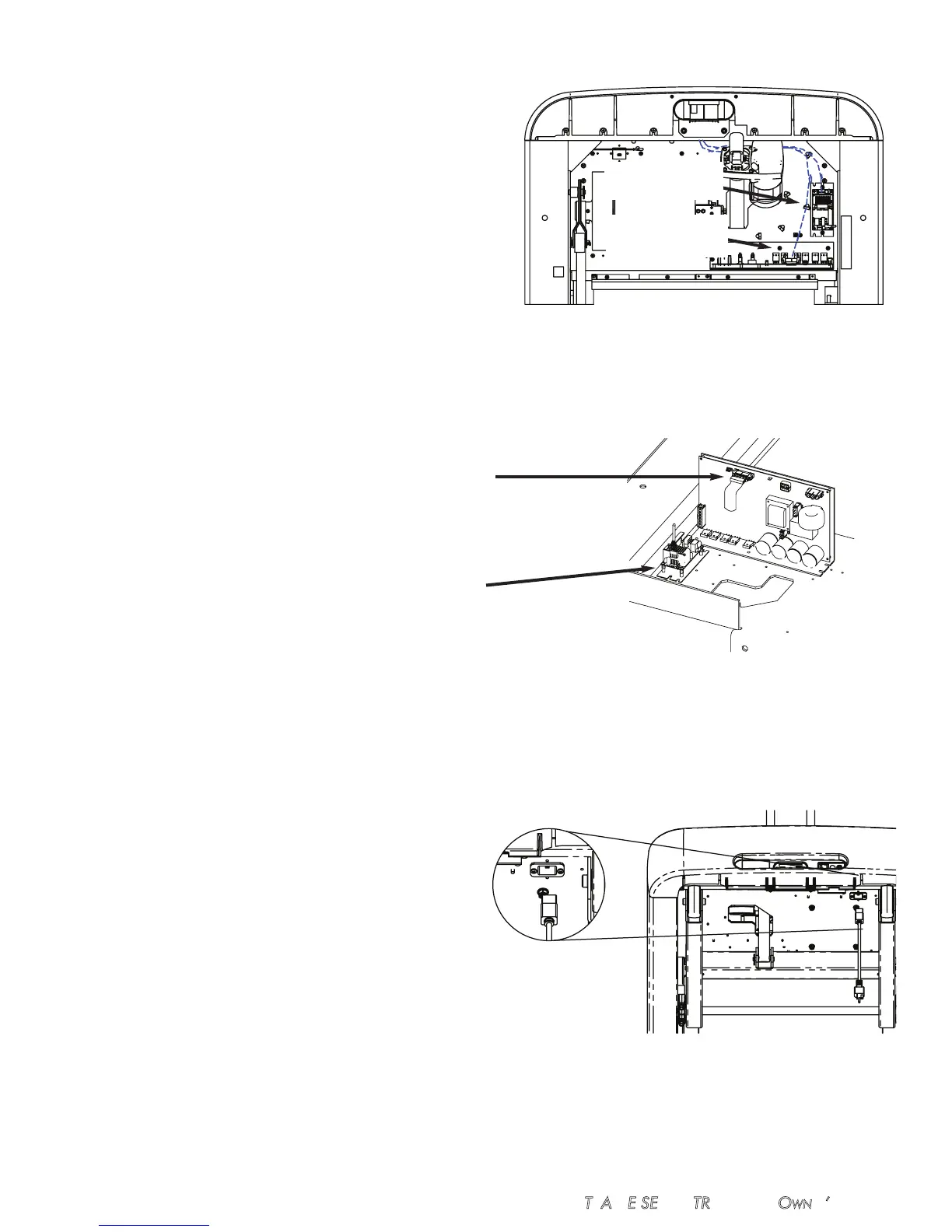

5. Connect the Cables
5a) Locate the DC Powerboard and the Motor Control board in
the front of the treadmill.
5b) Take the cable labeled Motor Control Board (MCB) and
connect it to the MCB.
5c) Take the cable labled DC Power and connect it to the DC
Power Board.
6. Connect the Power Cable
6a) Connect the female end of the power cord to the under
side front of the treadmill.
14 STAR TRAC E SERIES TREADMILL OWNER’S MANUAL
Motor Control
Board
DC Power
Board
Step 5a
Step 5b & 5c
Step 6a
