Starline Roldeck - Programming the Roldeck Control; Initial Roldeck Control Setup

RDCM V03-101512
5 Programming the Roldeck Control with S-Switch
5.1 Roldeck Control

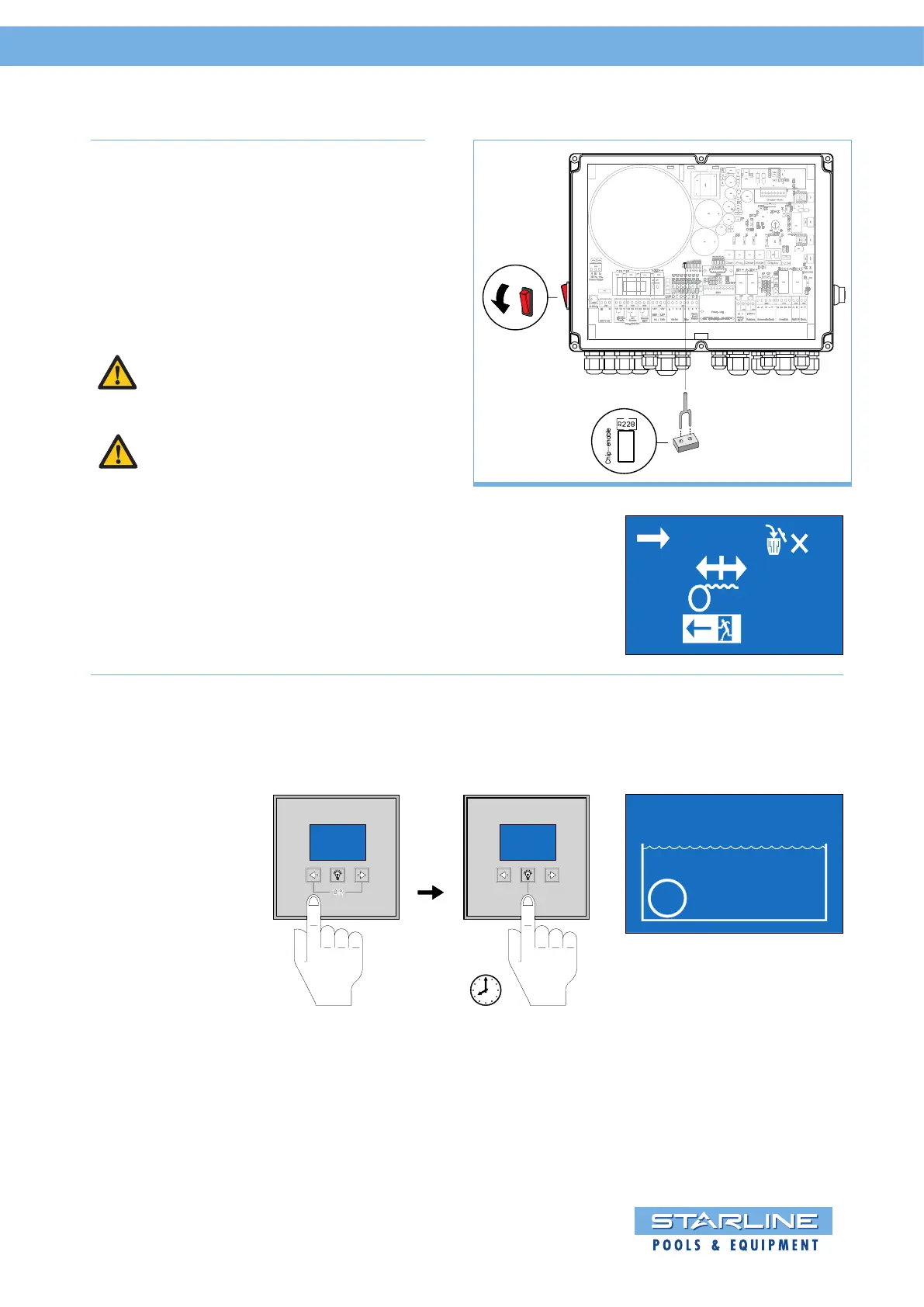

Programming of the Roldeck control occurs
with the help of the S-switch control panel.
• First turn on the Roldeck Control by
means of the red button (1) and connect
the jumper of the RD2013 into socket
(2).
Leave the jumper connected
during use.
User manual Starline Roldeck
3,15A/T
J202
J202
1.
2.
Programming the Roldeck with
automatic lid is not possible on
the S-switch!
During first programming use the arrow keys
 or  to change the running direction. Press
the middle key “light symbol“ shortly to save the
running direction.
The display shows the following picture
“programming“ the Roldeck.
The running direction of the Roldeck
can be changed.
PROG
OPEN CLOSE
KEY DIRECTION
1 sec.
OR
