StarTech.com USB2G4LEXT2 User Manual

Instruction Manual
5
Note: Some networks may be congured to block devices with unfamiliar MAC
addresses. If this is the case, you will need to provide your network administrator the
MAC addresses of the Local and Remote Extender units. These can be found on the
label on the bottom of each unit.
Preparing Your Site
Before you can install the USB2G4LEXT2, you need to prepare your site:
1. Place the computer where desired and set it up.
2. Ensure that where you want to locate the USB device(s) is within 100m (330ft) of the
switch.
3. Ensure that where you want to locate the computer is within 100m (330ft) of the
switch.
Note: The cable distance between switches must be no greater than 100m (330ft).

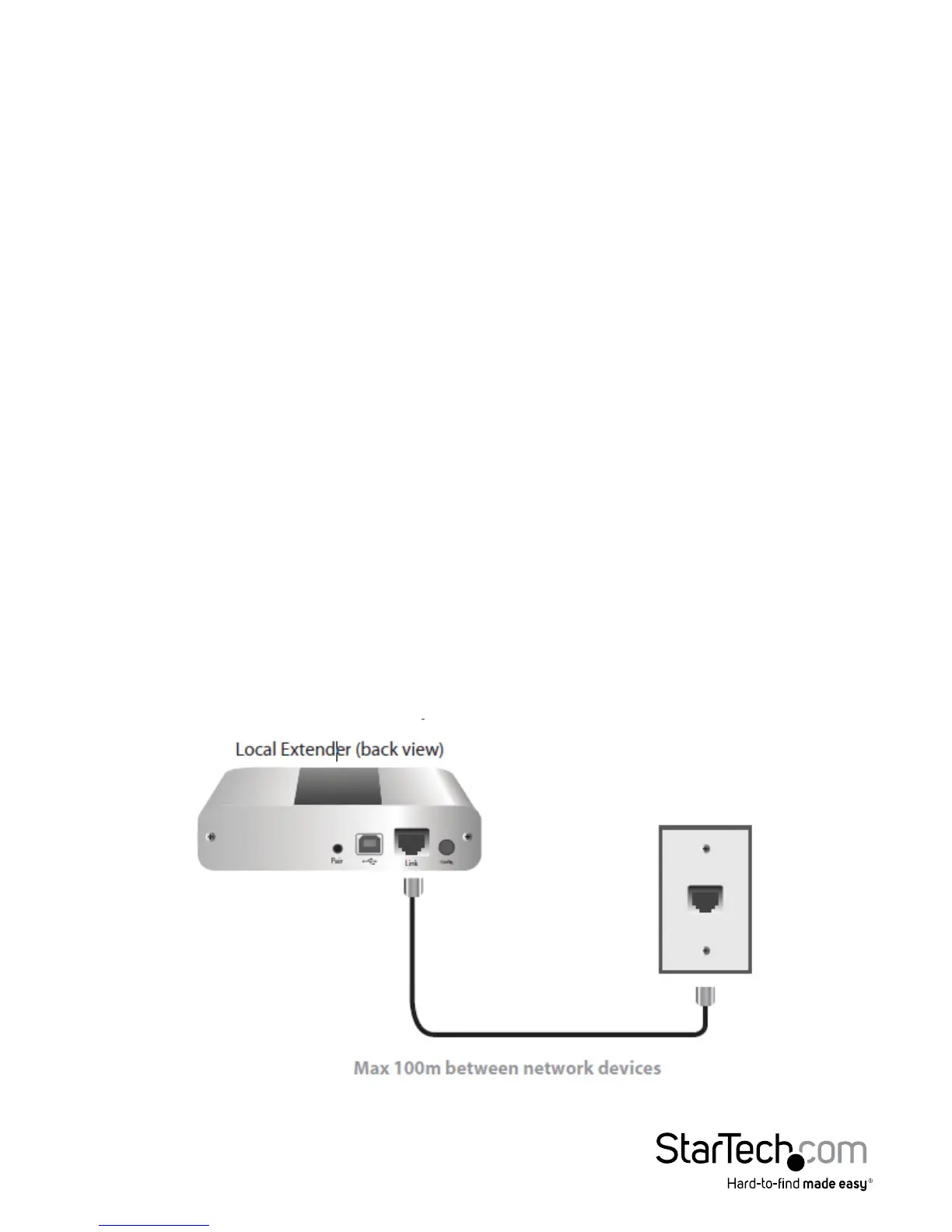

Installing the Local Extender
1. Place the Local Extender near the computer.
2. Connect the provided USB cable between the Local Extender host port and a
USB port on the host computer.
3. Connect a Cat 5e (or better) cable (not provided) into to a network switch or wall
network port connected to a switch.
4. Connect the opposite end of the Ethernet cable into the Link port of the
Local Extender

StarTech.com USB2G4LEXT2 Specifications

General

DC-in jack	Yes
RJ-45 ports quantity	2
USB 2.0 Type-A ports quantity	4
USB 2.0 Type-B ports quantity	1
Type	Console transmitter & receiver
Certification	FCC, CE
Product color	Black
LED indicators	Activity, Link, Power
Housing material	Aluminum
Cable types supported	Cat5e, Cat6
Maximum transfer distance	100 m
Sustainability certificates	RoHS
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	20 - 80 %
Cables included	USB
Input current	0.6 A
Input voltage	100 - 240 V
Output current	1 A
Output voltage	24 V
Power plug type	Type M
Power consumption (typical)	24 W
Master (outer) case width	403 mm
Master (outer) case height	275 mm
Master (outer) case length	565 mm
Harmonized System (HS) code	84733020
Quantity per master (outer) case	20 pc(s)

Weight and Dimensions

Depth	100 mm
Width	76 mm
Height	26 mm
Weight	363 g
Package depth	197 mm
Package width	194 mm
Package height	108 mm
Package weight	1200 g
