Graphical yield (day, month, year)

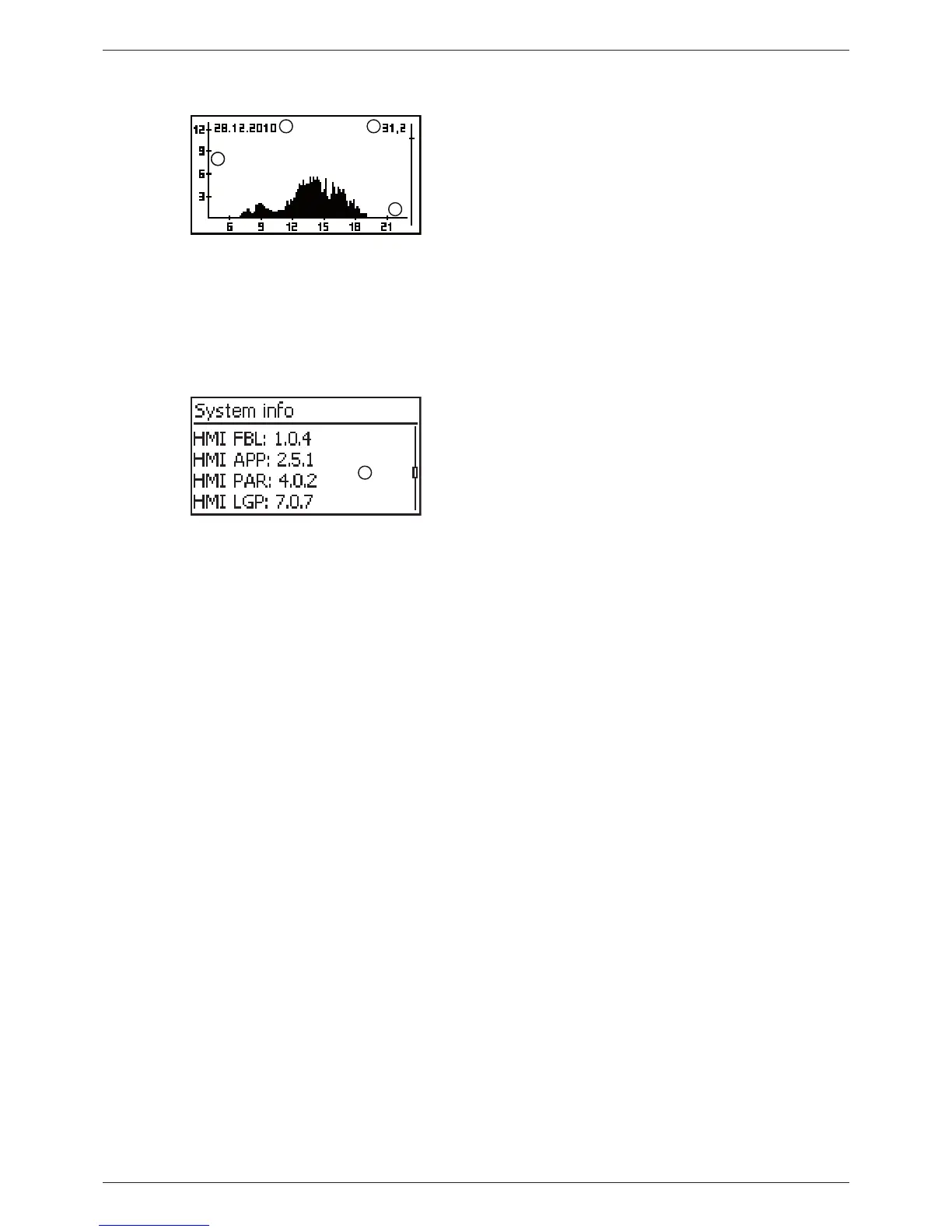

Daily, monthly and annual yields can be displayed graphically in a chart.
2
2
3
1
4
Period for a single yield value (here: Day yield)
y-axis:
– Yield in kWh
– With an extra M: yield in MWh
– The scaling changes depending on the maximum value
x-axis: time in hours/days/months/years
Total of all individual yields shown in the diagram, in kWh
The graphical representation can show annual yields for the
last 20 years.
Event messages
See Section 11, p. 73.
Information
1
The Information menu item contains the following sub-
menu items.
• Contact info
• System info (see fig. left):
– Product designation
– Serial number of the inverter
– Information on the software and hardware versions of
the inverter (see example in fig. left)
– Country setting (country currently set)
– Inverter address
– Version of the operating instructions for the inverter
• Country setting: country that is currently set and
country-specific grid parameters; see also p. 78
• React. pwr. char. curve: reactive power characteristic
curve graph (only when prescribed for currently set coun-
try)
• Self test: result of the last successfully performed self
test (only when the configured country is Italy)
