4 KNEE
Selects the knee type of the compressor.
5 SIDE CHAIN Q
Adjusts the band width of the side chain filter.
Range: 0.50 - 16.00
6 SIDE CHAIN F
Adjusts the center frequency of the side chain filter.
Range: 20.0 Hz - 20.0 kHz
7 SIDE CHAIN G
Adjusts the gain of the side chain filter.
Range: -18.0 dB − +18.0 dB
8 COMPRESSOR On/Off
Turns the compressor on (lit) and off (unlit).
9 Compressor Curve
This graph indicates the approximate compressor
response.
The vertical axis indicates the output signal level, and the
horizontal axis indicates the input signal level.
) Gain Reduction Meter
Indicates the gain reduction.
! DRIVE
Adjusts the degree to which the compressor is applied.
The higher the value, the greater the effect.
Range: 0.00 − 10.00

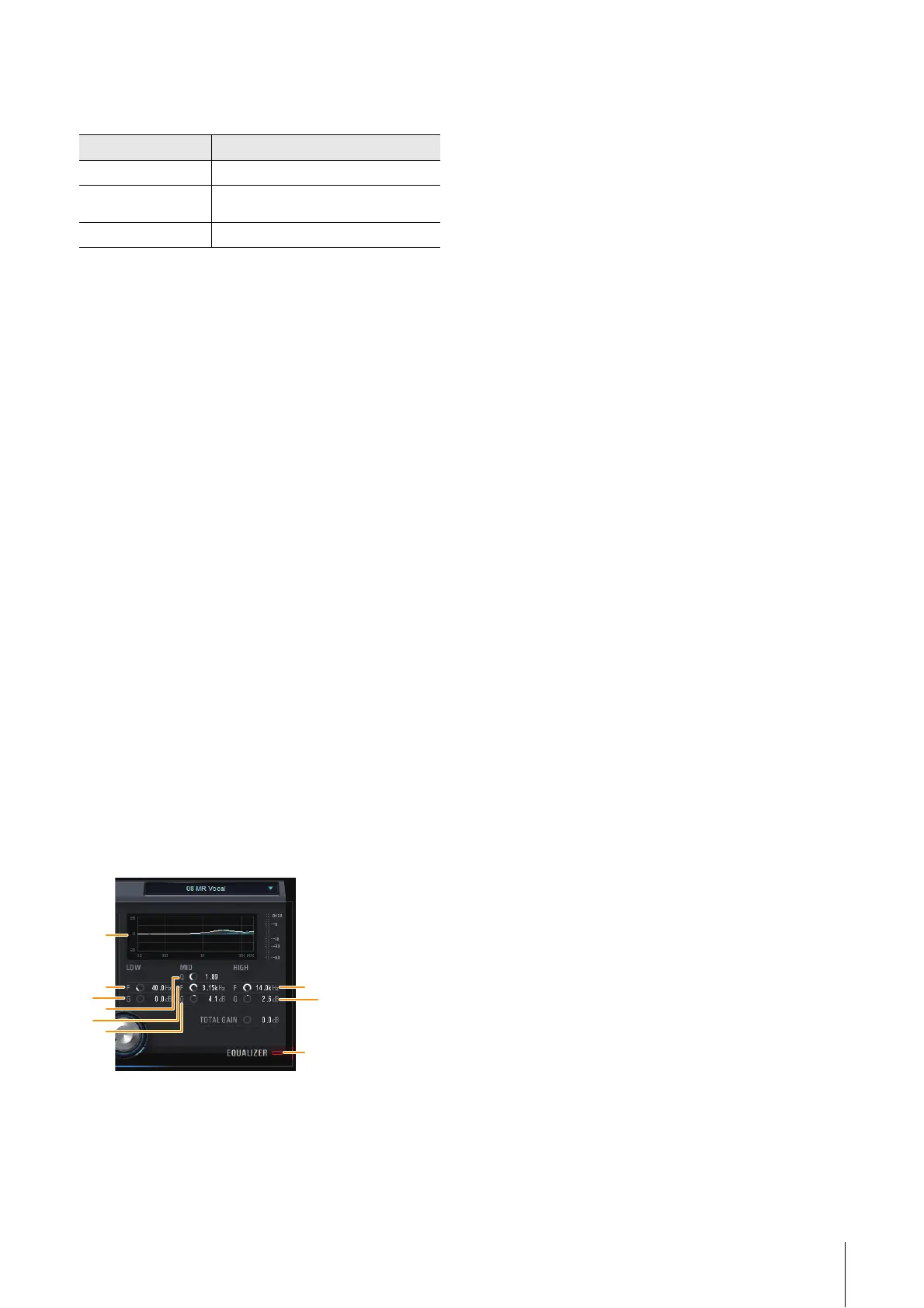

Equalizer
1 Equalizer Curve
This graph indicates the characteristics of the 3-band
equalizer. The vertical axis indicates the gain, and the
horizontal axis indicates the frequency. You can adjust
LOW, MID, and HIGH by dragging each handle in the
graph.
2 LOW F
Adjusts the center frequency of the low band.
Range: 20.0 Hz − 1.00 kHz
3 LOW G
Adjusts the gain of the low band.
Range: -18.0 dB − +18.0 dB
4 MID Q
Adjusts the band width of the middle band.
Range: 0.50 − 16.00
5 MID F
Adjusts the center frequency of the middle band.
Range: 20.0 Hz − 20.0 kHz
6 MID G
Adjusts the gain of the middle band.
Range: -18.0 dB − +18.0 dB
7 HIGH F
Adjusts the center frequency of the high band.
Range: 500.0 Hz − 20.0 kHz
8 HIGH G
Adjusts the gain of the high band.
Range: -18.0 dB − +18.0 dB
9 EQUALIZER On/Off
Turns the equalizer on (lit) and off (unlit).
Options Description
SOFT Produces the most gradual change.
MEDIUM Results in a setting midway between SOFT
and HARD.
HARD Produces the sharpest change.
