Using with an iOS device
UR-RT4 / UR-RT2 Operation Manual 30
Using with an iOS device

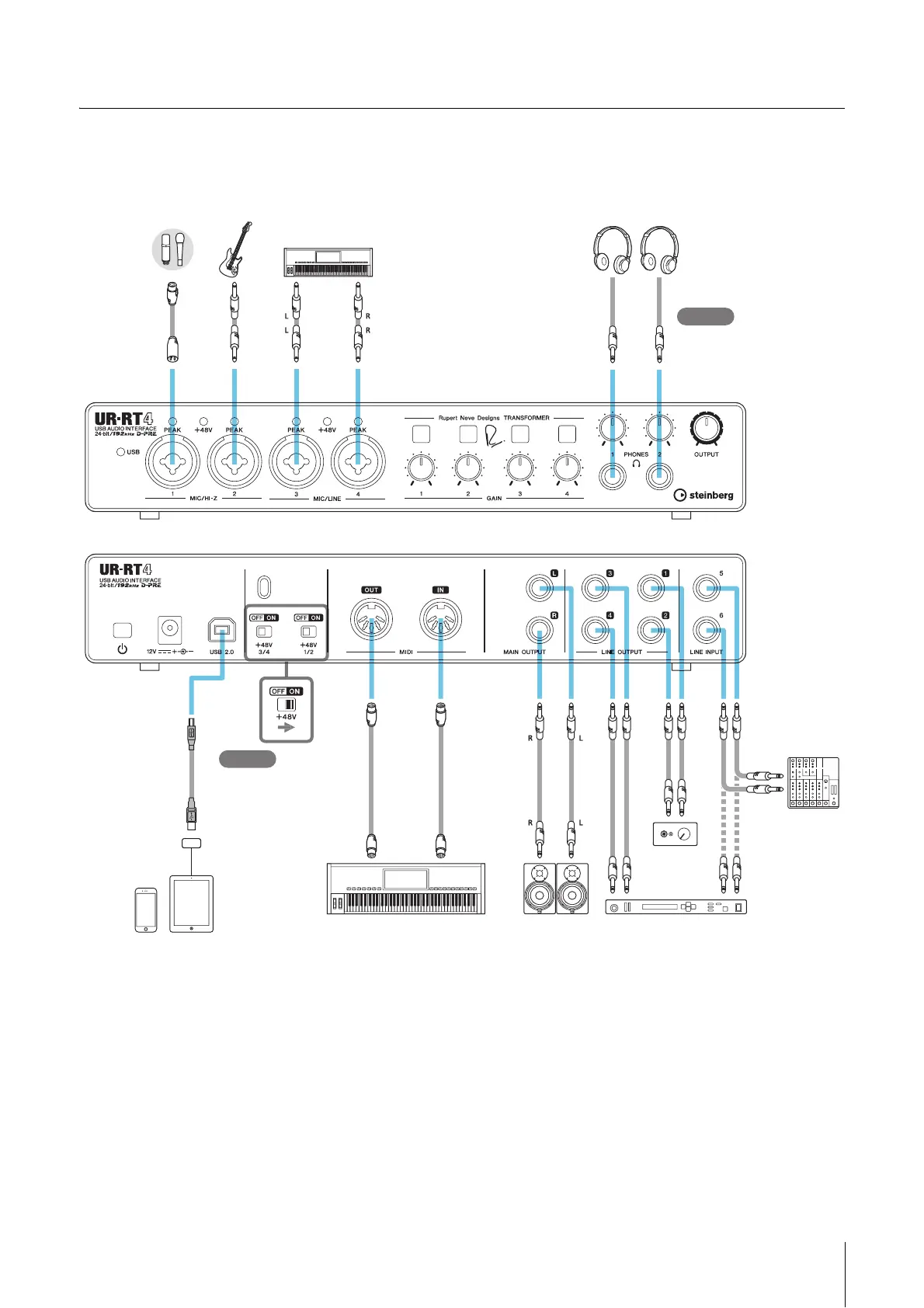

Connection Example UR-RT4
NOTE
• AppleiPadCameraConnectionKitorLightningtoUSBCameraAdapterarerequiredwhenconnectingtheUR-RTwithan
iOSdevice.
• ForthelatestinformationoncompatibleiOSdevices,refertotheSteinbergWebsitebelow.
http://www.steinberg.net/
Set all volume levels to
minimum before connecting or
disconnecting
the external device.
Check!
When using the
condenser microphone,
turn the switch on
after connecting it.
(Turn the switch off
before disconnecting it.)
Check!
iPad
Apple iPad
Camera
Connection Kit/
Lightning to
USB Camera
Adapter
iPhone
Synthesizer/MIDI keyboard
Monitor speakers Outboard
Headphone
amp
Microphone Guitar
Keyboard
Headphones
Rear panel
Front panel
Mixer
