OPERATION
3 4 5
2
1
--
--
'
~~-
· ,_ ' C]
r.,
,,_--:,-
•~. I
~
~·
)'
,..
..,,.
•
• ll-__
·t
:
_~~
·
~_;_
i
__
1_~
·-
...
;;
-
·)
1
·.
-:-
•
- ,
i-
,:..
~
l:
I
-~
10

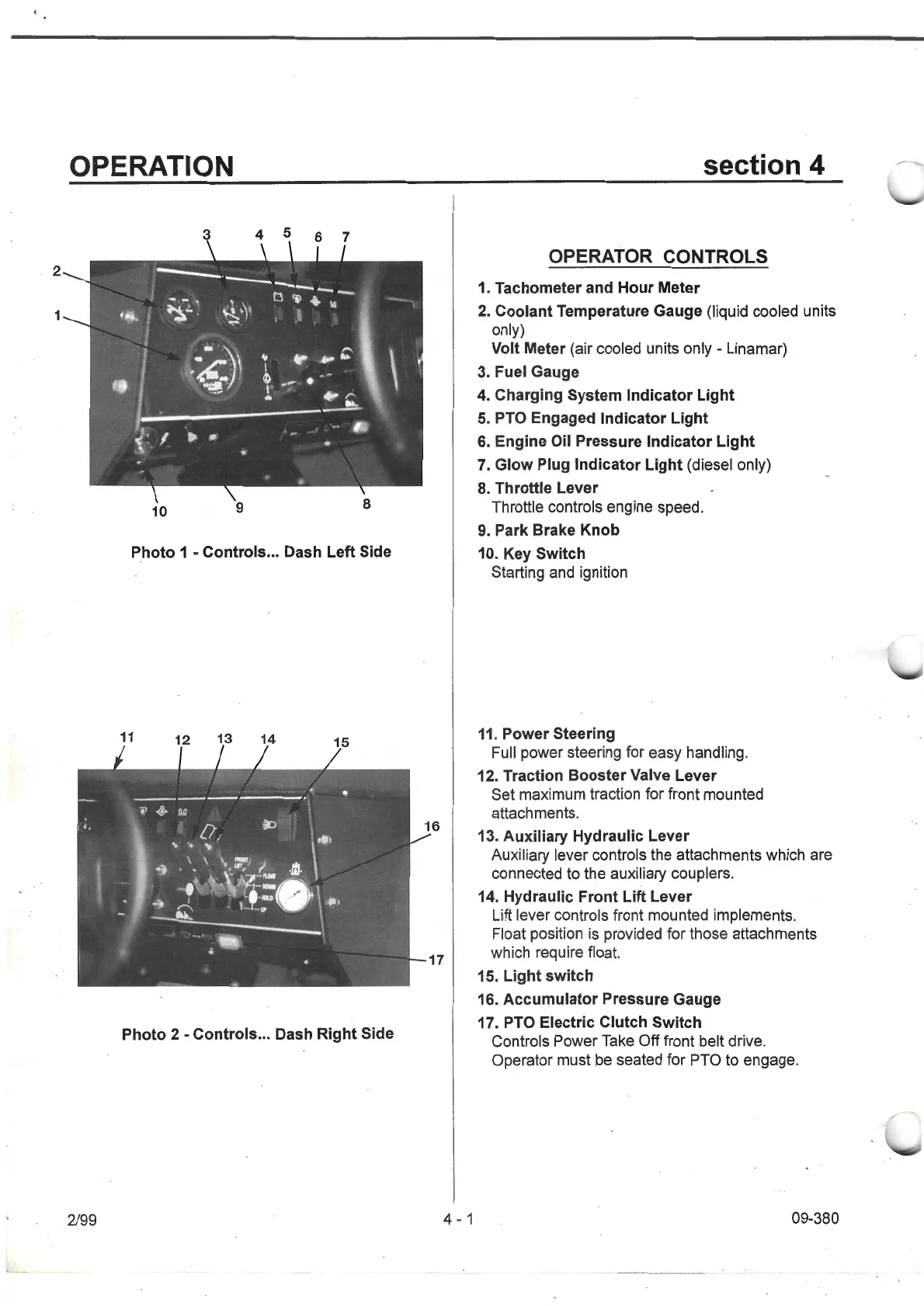

Photo 1 - Controls ... Dash Left Side
11
12 13 14
Photo 2 - Controls ... Dash Right Side
2/99
4 - 1
section 4
OPERATOR
CONTROLS
1. Tachometer and Hour Meter
2.
Coolant Temperature Gauge (liquid cooled units
only)
Volt Meter (air cooled units only - Linamar)
3.
Fuel Gauge
4.
Charging System Indicator Light
5.
PTO Engaged Indicator Light
6.
Engine Oil Pressure Indicator Light
7.
Glow Plug Indicator Light (diesel only)
8.
Throttle Lever
Throttle controls engine speed.
9. Park Brake Knob
10. Key Switch
Starting and ignition
11. Power Steering
Full power steering for easy handling.
12. Traction Booster Valve Lever
Set maximum traction for front mounted
attachments.
13. Auxiliary Hydraulic Lever
Auxiliary lever controls the attachments which are
connected to the auxiliary couplers.
14. Hydraulic Front Lift Lever
Lift lever controls front mounted implements.
Float position
is
provided for those attachments
which require float.
15. Light switch
16. Accumulator Pressure Gauge
17. PTO Electric Clutch Switch
Controls Power Take Off front belt drive.
Operator must be seated for PTO to engage.
09-380
