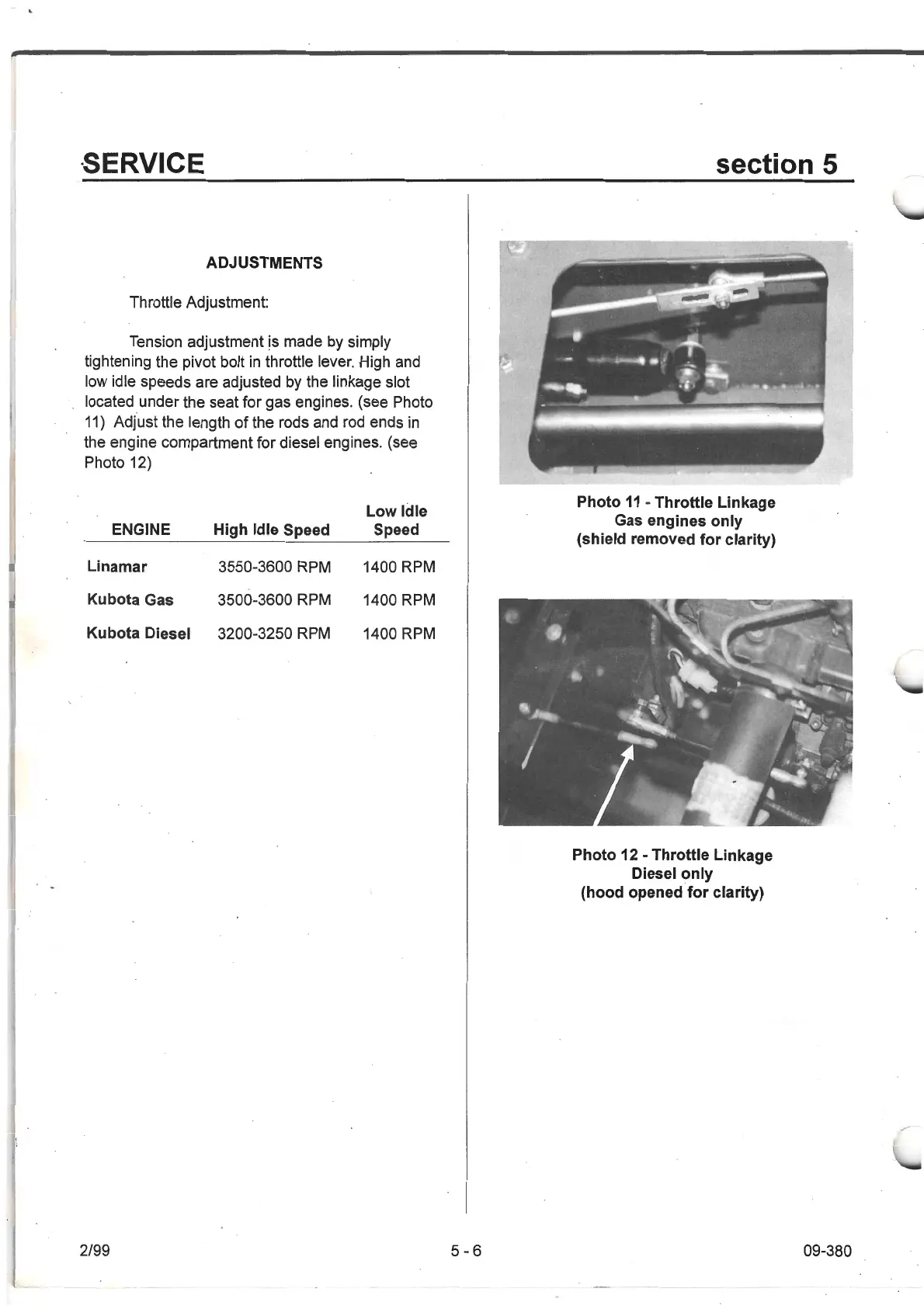

·SERVICE
ADJUSTMENTS
Throttle Adjustment:
Tension adjustment is made by simply
tightening the pivot bolt
in
throttle lever. High and
low idle speeds are adjusted
by
the linkage slot
located under the seat for gas engines. (see Photo
11)
Adjust the length
of
the rods and rod ends
in
the engine compartment for diesel engines. (see
Photo 12)
ENGINE
High Idle Speed
Linamar
3550-3600 RPM
Kubota Gas 3500-3600 RPM
Kubota Diesel 3200-3250 RPM
2/99
Low Idle
Speed
1400 RPM
1400 RPM
1400 RPM
5-6
section 5
11
- Throttle Linkage
Gas engines only
(shield removed for clarity)
Photo 12 - Throttle Linkage
Diesel only
(hood opened for clarity)
09-380
