SERVICE
SERVICE CHART
Lubrication:
Grease steer
in
g linkage, rear axle (See Fi
g.
A).
Grease front idl
er
and idler arm (See F
ig
. B).
Grease drive line and PTO bear
in
gs (See Fi
g.
C
).
Grease foot pedal (See Fi
g.
D).
Re-pack rear wheel bear
in
gs
Storage:
Dra
in
fuel tank.
Maintain proper tire pressure.
Remove battery and mainta
in
charge.
Grease exposed cylinder shafts.
(See note on page 5-5 concerning electric c
lu
tch
when returning unit to service after storage.)

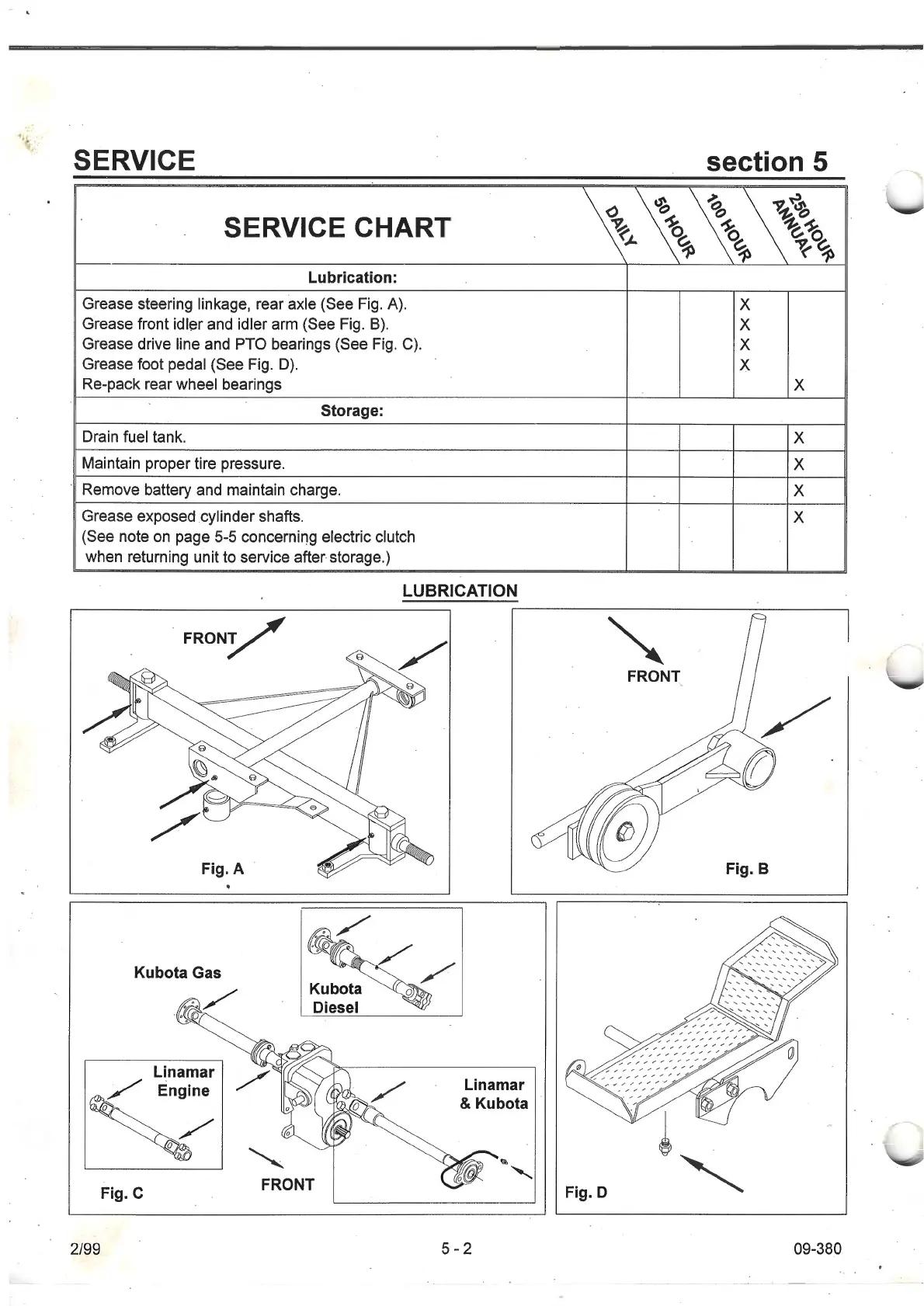

LUBRICATION
