OPERATION section 4

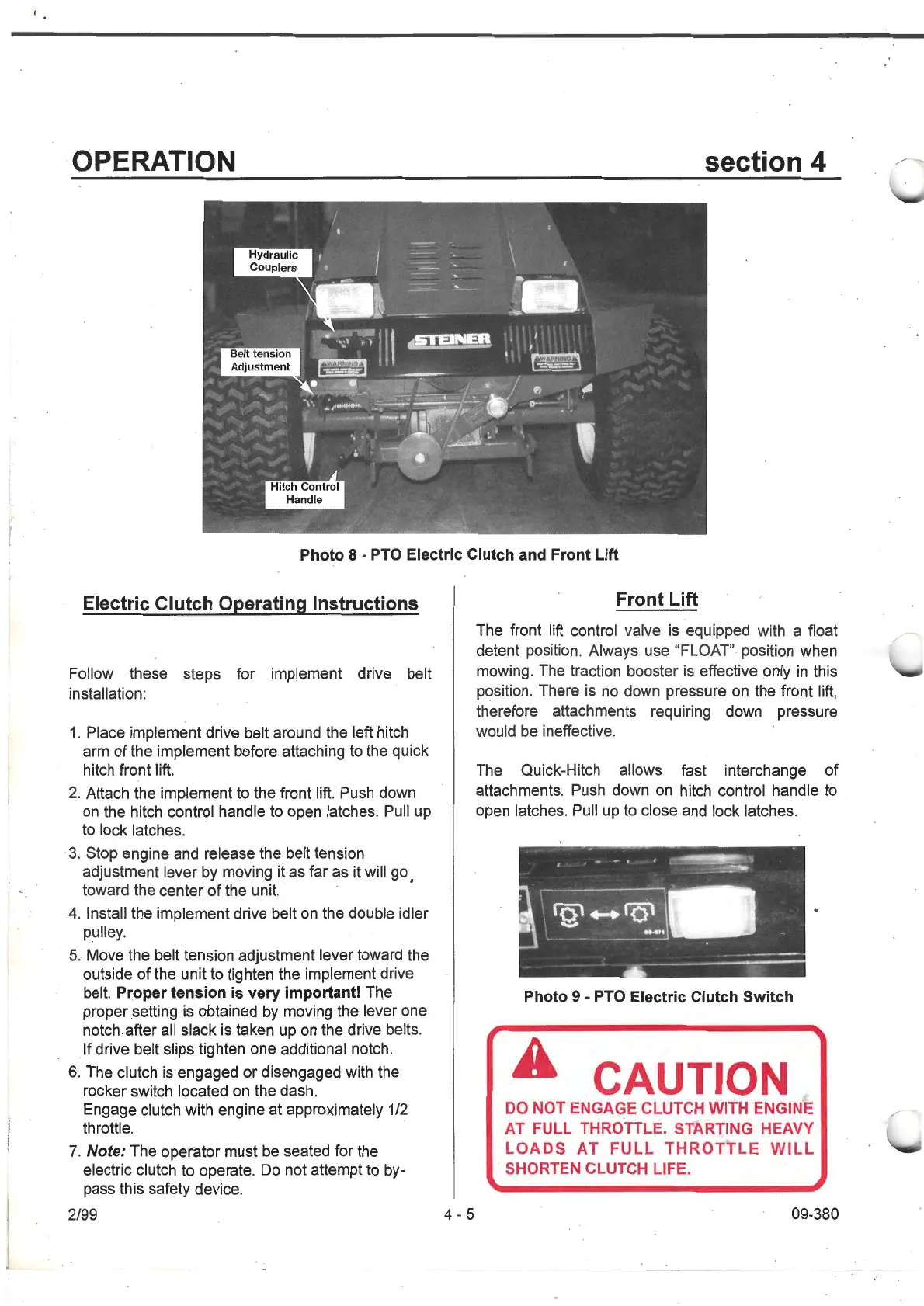

Photo 8 - PTO Electric Clutch and Front Lift
Electric Clutch Operating Instructions
Fo
llow these steps for implement drive belt
installation:
1. Place implement drive belt around the left hitch
arm
of
the implement before attaching to the quick
hitch front lift.
2.
Attach the implement to the front lift. Push down
on
the hitch control handle to open latches.
Pu
ll
up
to lock latches.
·
3.
Stop engine and release the belt tension
adjustment lever by moving it as far as it will go
toward the center
of
the unit. •
4. Install the implement drive belt
on
the double idler
pulley.
5. Move the belt tension adjustment lever toward the
outside of the unit to tighten the implement drive
belt. Proper tension
is
very important! The
proper setting is obtained
by
moving the lever one
notch after all slack is taken up
on
the drive belts.
If drive belt slips tighten one additional notch.
6. The clutch is engaged or disengaged with the
rocker switch located
on
the dash.
Engage clutch with engine at approximately 1/2
throttle.
7.
Note: The operator must be seated for the
electric clutch to operate. Do not attempt to by-
pass this safety device.
2/99
4-5
Front Lift
The front lift control valve is equipped with a float
detent position. Always use "FLOAT" position when
mowing. The traction booster is effective only
in
this
position. There is no down pressure
on
the front lift,
therefore attachments requiring down pressure
would be ineffective.
The Quick-Hitch allows fast interchange of
attachments. Push down
on
hitch control handle to
open latches.
Pu
ll
up
to
close and lock latches.
..
Photo 9 - PTO Electric Clutch Switch
CAUTION
DO NOT ENGAGE CLUTCH WITH ENGINE
AT
FULL THROTTLE. STARTING HEAVY
LOADS
AT
FULL
THROTTLE
WILL
SHORTEN CLUTCH LIFE.
09-380
