SERVICE
HYDROSTATIC TRANSMISSION
Neutral Linkage Adjustment:
To
achieve absolute neutral
it
is
necessary to
slide the neutral centering assembly
in
the slotted
mounting hole. Absolute neutral
is
when the tractor
will not creep with the engine running and the
Forward - Reverse pedal
in
neutral. The attaching
bolt can be reached through the toolbox and the
underseat access hole (see Photo 13). Tighten bolt
securely after setting is achieved.
Pedal Position Adjustment:
Perform the neutral position adjustment before
adjusting pedal position. Pedal position can
be
changed by adjusting the connecting link length
between pedal and hydrostat control arm.
FRAME
1. Check for loose or missing fasteners after first 1 O
hours. - Every 100 hours thereafter.
• Torque all standard hardware bolts to standard
grade 5 spec.
2.
Do
not remove guards, shields or lock straps.
• Repair or replace any broken parts.
• Keep frame parts clean, it makes it easier to find
loose or broken parts.
• If used
in
toxic areas, wash after each use -
fertilizer, manure, etc., can cause corrosion of
aluminum parts.
2/99
5-8
section 5

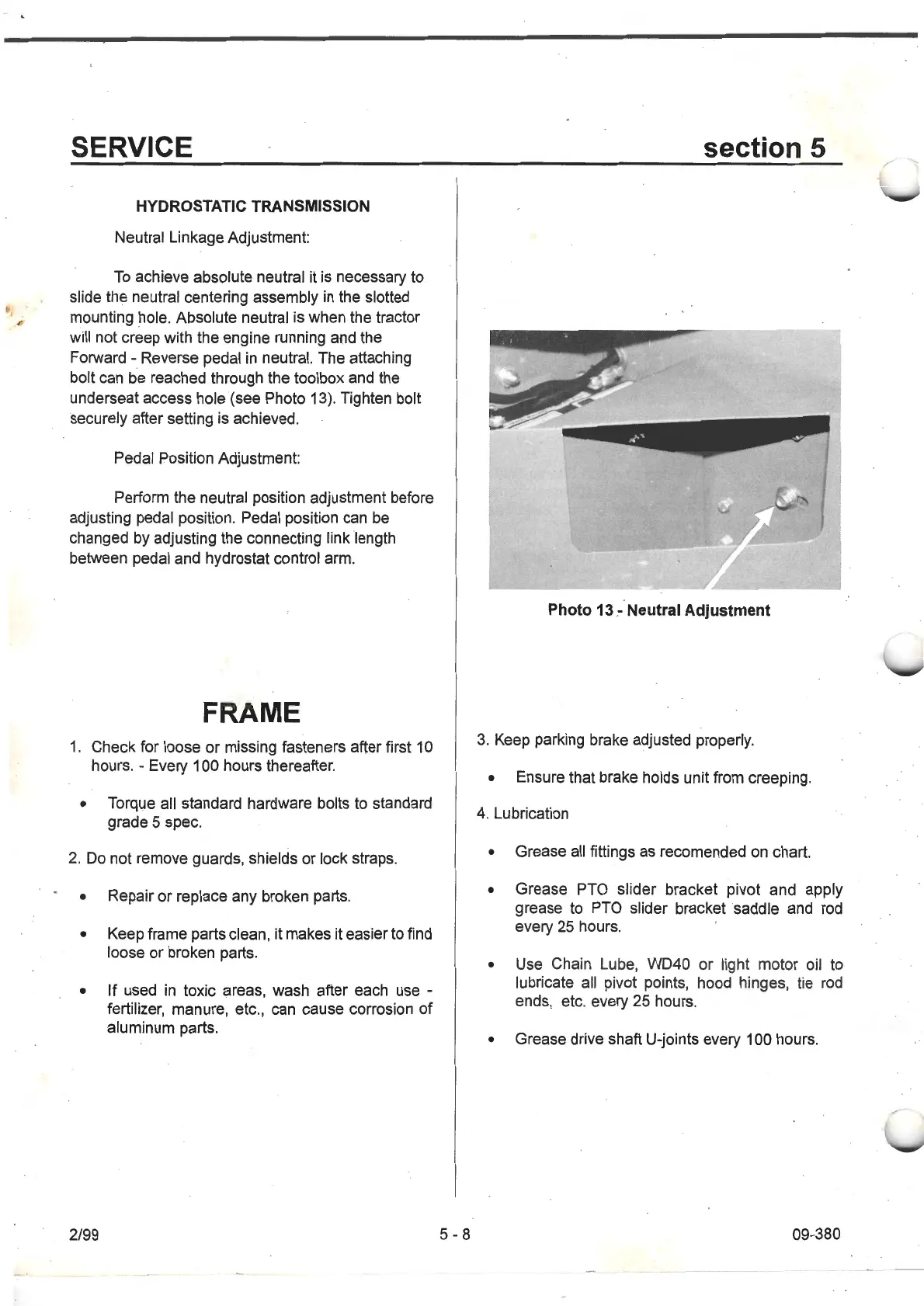

Photo 13 - Neutral Adjustment
3. Keep parking brake adjusted properly.
• Ensure that brake holds unit from creeping.
4. Lubrication
• Grease all fittings as recomended on chart.
• Grease PTO slider bracket pivot and apply
grease to PTO slider bracket saddle and rod
every 25 hours.
• Use Chain Lube, WD40 or light motor oil to
lubricate all pivot points, hood hinges, tie rod
ends, etc. every 25 hours.
• Grease drive shaft U-joints every 100 hours.
09-380
