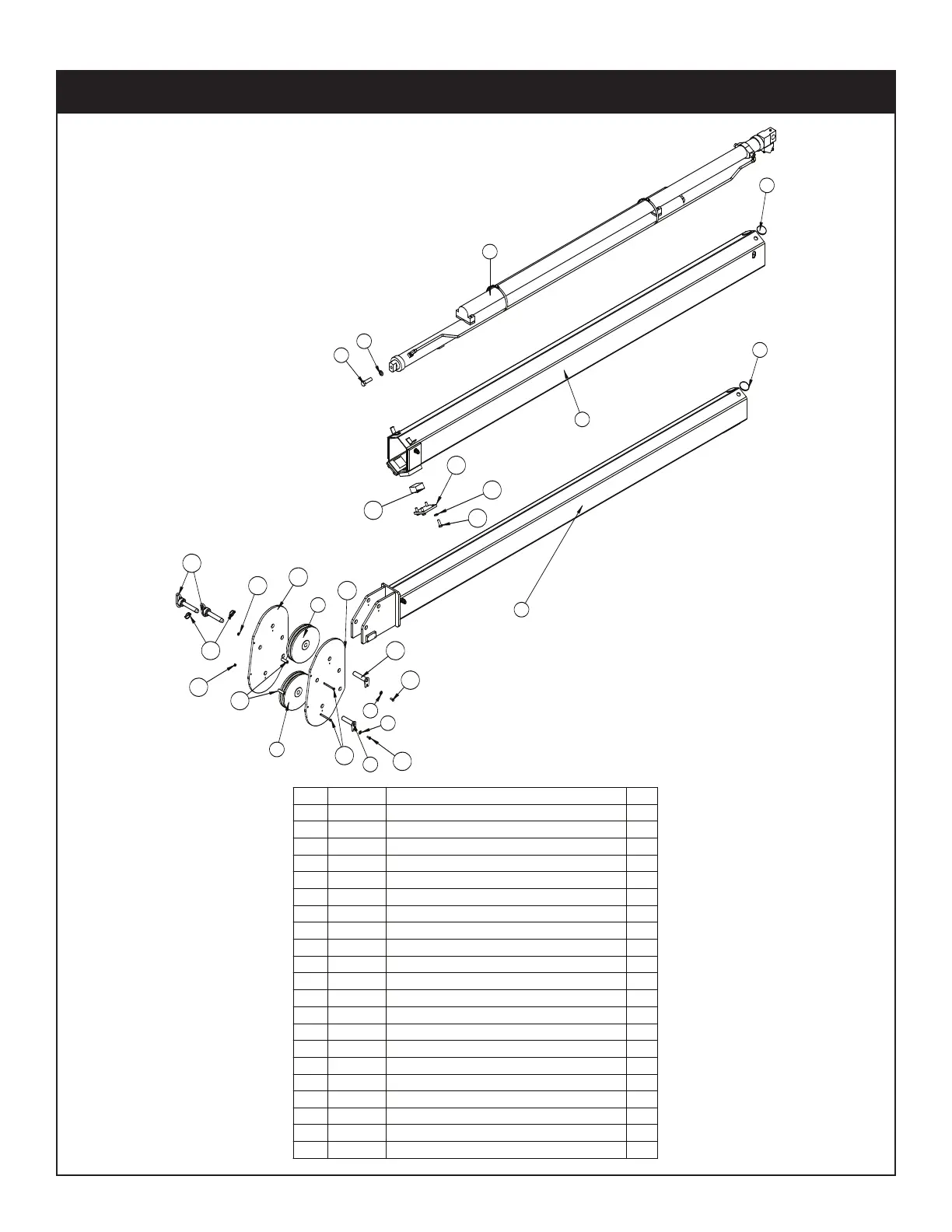

stellar labs 14528 - Extension Boom Assembly - PN 26757

38 14528 Owner’s Manual
15
10
7
11
7
18
19
13
8
9
10
17
16
21
14
2
1
6
5
4
3
3
20
20
9
12
13
.YTQNOITPIRCSEDTRAPMETI
134770 EXT BOOM 1ST 14528 1
234771 BOOM 2ND EXT 14528 1
3 9991 WEAR PAD 0.19X2.50 RND NYLATRON 4
426756 CYLINDER ASM 14528 EXT 1
5C6219 WASHER 0.75 SAE FLAT YELLOW GR8 1
64974 CAP SCR 0.75-10X2.50 HHGR8 ZY 1
724557 SHEAVE 14528 10.00 DIA .50R/1.94 THK 2
8 13399 PIN TEAR DROP 1.00X3.81 1
90343 WASHER 0.31 USS FLAT ZINC 2
10 0420 CAP SCR 0.31-18X0.75 HHGR5 2
11 27719 SPACER BOOM TIP 6620 UHMW 2
12 0490 CAP SCR 0.31-18X3.50 HHGR5 2
13 0342 NUT 0.31-18 HH NYLOC 2
14 26758 WEAR PAD 2.50X2.50X1.50 NYLATRON 2
15 26759PC PLATE WEAR PAD SUPPORT 14528 2
16 D0790 WASHER 0.50 FLAT GR8 8
17 10548 CAP SCR 0.50-13X1.50 HHGR8 8
18 12824 PIN HITCH 1.00X4.50 2
19 5753 PIN 0.19X1.56 LYNCH 2
20 24556PC PLATE SHEAVE MOUNTING 14528 2
21 13400 PIN TEAR DROP 1.00X4.38 1
PN 26757
Extension Boom Assembly - PN 26757
