Stellar 4500 Manual
6-1
Chapter 6 - Installation
General Installation
This chapter is designed to serve as a general guide for the
installation of a Stellar 4500 Articulating Crane on a Stellar
Service Body. Each installation is considered unique so
certain portions of this chapter may or may not apply to
your direct application. If a question should arise during
the installation process, please contact Stellar Customer
Service at (800) 321 3741.
This crane is designed for use with a Stellar Service Body
installed on a vehicle that meets the minimum chassis
requirements of the crane. Check with Stellar Industries
before installing this crane on a body other than a Stellar
Service Body.
Installation Notice
According to Federal Law (49 cfr part 571), each final-
stage manufacturer shall complete the vehicle in such a
manner that it conforms to the standards in effect on the
date of manufacture of the incomplete vehicle, the date of
final completion, or a date between those two dates. This
requirement shall, however, be superseded by any
conflicting provisions of a standard that applies by its terms
to vehicles manufactured in two or more stages.
Therefore, the installer of Stellar cranes and bodies is
considered one of the manufacturers of the vehicle. As
such a manufacturer, the installer is responsible for
compliance with all applicable federal and state
regulations. They are required to certify that the vehicle is
in compliance with the Federal Motor Vehicle Safety
Standards and other regulations issued under the National
Traffic and Motor Vehicle Safety Act.
Please reference the Code of Federal Regulations, title 49
- Transportation, Volume 5 (400-999), for further
information, or visit:
http://www
.gpoaccess.gov/nara/index.html
for the full text of the Code of Federal Regulations.
Notice: Read this Page Before Installation of the Crane
WARNING!
The use of this crane on a body not capable
of handling the loads imposed on it may
result in serious injury or death.
Notice:
PTO and Pump installation instructions are provided by
the proper manufacturers. For more information on which
PTO and Pump fit your application, please contact your
local Stellar Distributor or Stellar Customer Service.
Installation Guidelines (For more detail, please
contact Stellar Customer Service)
1. Locate mounting brackets and clamp to
chassis1” (min) from rear of cab (or desired
location).
2. Set crane on chassis and check for
interferences.
3. Using mounting bracket as a guide, mark holes
to be drilled into truck frame.
4. Remove mounting brackets and drill holes.
5. Mount brackets using 3/4” Grade 8 bolts, flast
washers, and nyloc nuts.
6. Lower crane onto mounting brackets.
7. Mount crane using 1” Grade 8 bolt, flat washers,
and nyloc nuts.
8. Connect pressure and return lines per hydraulic
kit.
9. Connect (+12V) Power and ground wires inside
crane box.
10. Check reservoir for oil and fill if necessary.
11. Operate crane several cycles.

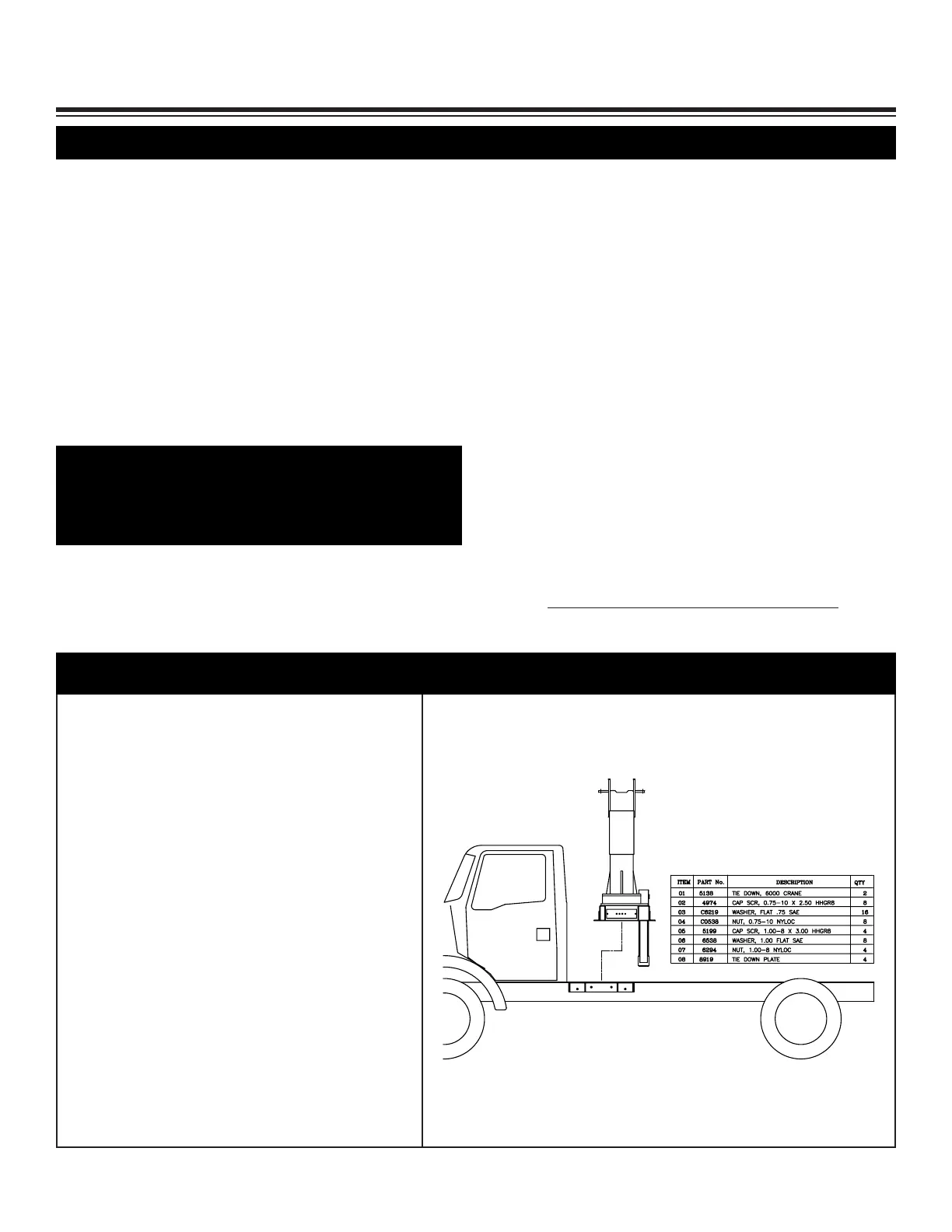

Installation Kit (PN 5195)
Installation Overview
