stellar labs Flex36 60-8 - Rotary Valve (All Models) - PN 37741

24 Flex36 Owner’s Manual
6
5
4
3
10
1
11
8
7
2
9
6
7
13
12
7
.
YTQN
O
ITP
I
RCS
E
DTR
APME
T
I
1MSA
E
V
L
AV YRATOR6
5
4221
2 22450 WLDMT ROTARY VALVE ECCENTRIC 1
3D1638 O'RING 1.12X1.38X0.12 568-216 1
4 3748 WASHER ROTARY VALVE 1
5 0480 CAP SCR 0.25-20X1.00 HHGR5 1
6 0353 CAP SCR 0.38-16X2.00 HHGR5 3
7 0347 NUT 0.38-16 HH NYLOC 3
8 0977 O'RING 1.00X1.25X0.12 568-214 1
9 22449 PLATE ROTARY VALVE ARM 1
10 0482 CAP SCR 0.25-20 X 3.00 HHGR5 2
11 0333 NUT 0.25-20 HHGR5 NYLOC 2
12 7350 FTG ST RUN TEE 8R5OLO 2
13 D1535 PLUG STR HOLLOW HEX 0.50 8-HP5ON 2
37741

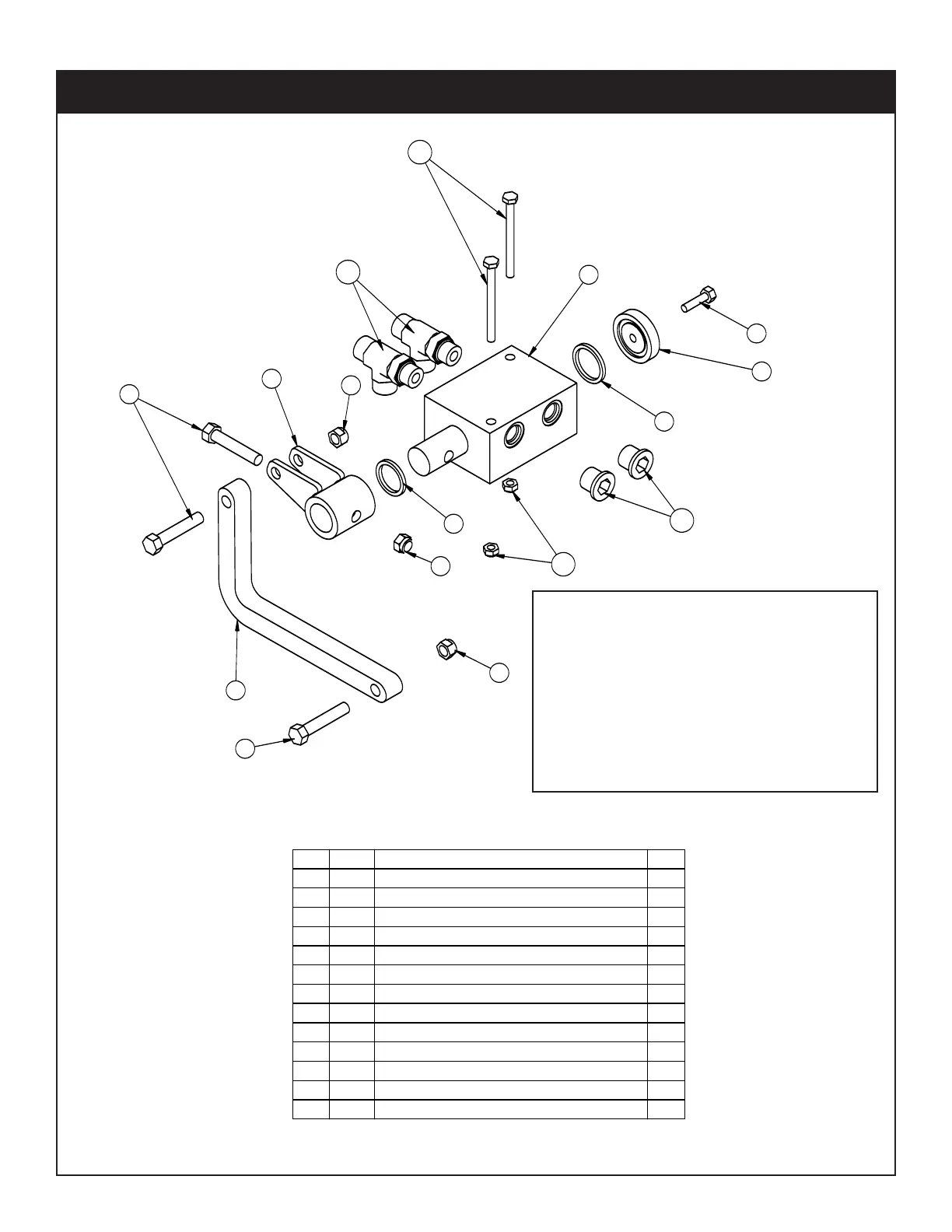

Rotary Valve (All Models) - PN 37741
To adjust rotary valve move hooklift into
stowed position. Loosen the bolts that are
attaching the valve block to the dump
section. Adjust rotary arm so that it is in
contact with the dump plate. Push the
rotary arm up as you pull the valve block
back towards the rear of the loader.
Tighten valve block bolts while making
sure valve block is snug. Note: It should
engage between 4 and 10 degrees.
