1
12
2
0
4

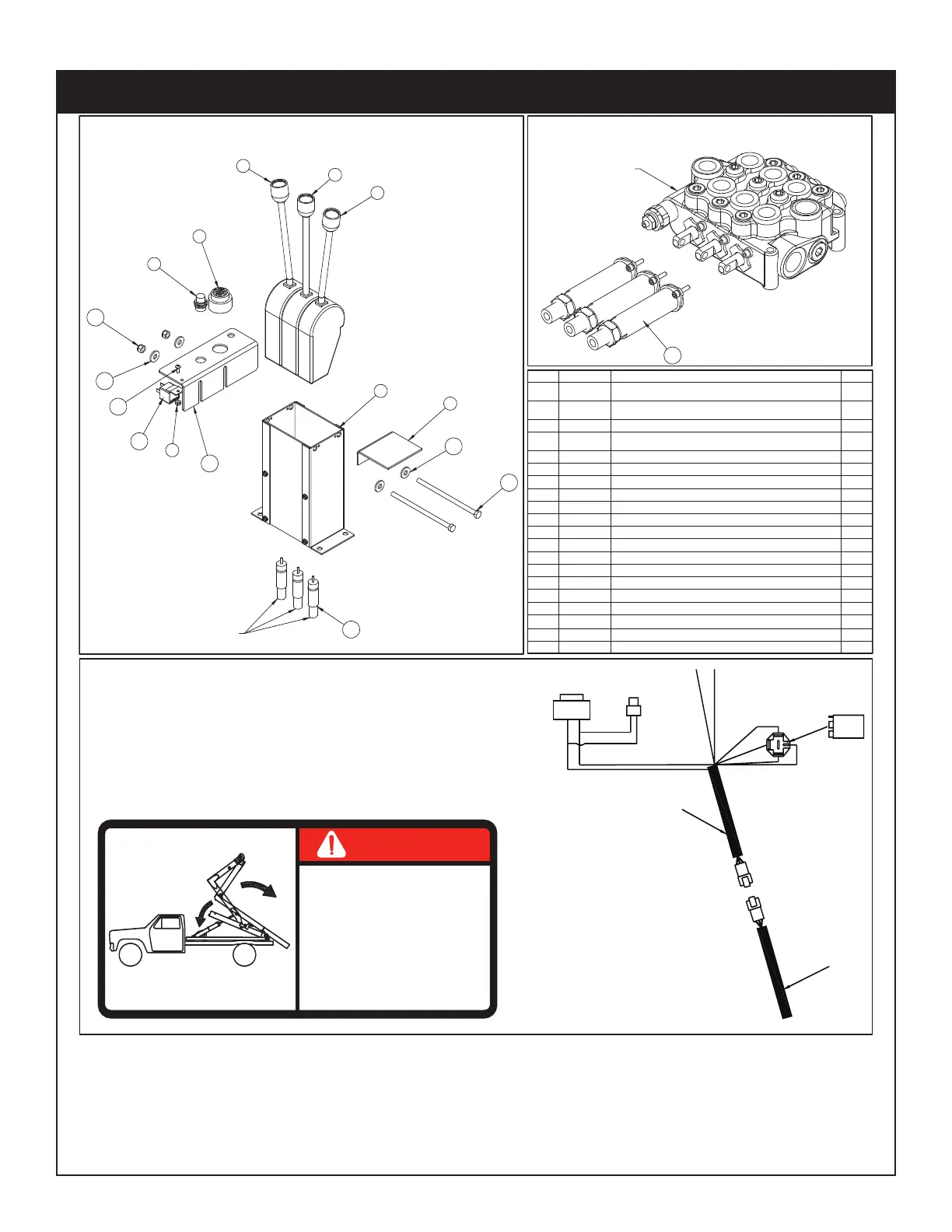

In Cab Installation
19
5
9
19
6
3
17
14
8
10
11
CONTROL CABLES
TO VALVE BANK
7
13
Valve Bank Shown
F
or Reference
At Valve Installation
.YT
Q
N
O
I
T
P
I
RCSEDTRAPMETI
1 38351 VALVE CTRL CONSOLE 3LEV
ER RVC (3 Section Only) 1
1 37470 VALVE CTRL CONSOLE 2LEV
ER RVC (2 Section Only) 1
3 37475 CONTROLLER CTR LOCK LEFT BEND 1
4 37476 CONTROLLER CTR LOCK NO BEND (3 Section Only) 1
5 37474 CONTROLLER CTR LOCK RIGHT BEND 1
6 25933 BRKT CONTROLLER DECAL 1
7 26031 BACKUP ALARM PIEZO JAMECO 123537 1
8 26034 NUT #10-24 HH NYLOC 1
9 26288 LIGHT INDICATOR RED FORCE PTO 1
10 26293 PLATE TAB ALARM MNT 1
11 C6072 RELAY BOSCH 20-30 AMP 1
12 D1711 CAP SCR #10-24X0.50 BTNHD SS 1
13 37469 CABLE CONN. KIT FOR VD8A/VDM8 2/3
14 37471 CONTROL CABLE 96 IN WESCON 2/3
14 37472 CONTROL CABLE 144 IN WESCON 2/3
14 37473 CONTROL CABLE 192 IN WESCON 2/3
17 20057 CAP SCR 0.31-18X6.50 HHGR5 (3 Section Only) 2
1
7 0491 CAP SCR 0.31-18X4.00 HHGR5 (2 Section Only) 2
19 0343 WASHER 0.31 USS FLAT ZINC 4
20 0342 NUT 0.31-18 HHGR5 NYLOC 2
Ground
Relay
Wire Harness
From Chassis
Wire Harness
From Hooklift
Light
Ignition
+
-
+
-
Safety
Ground
Buzzer
12 Volt Ignition
Installation Instructions:
1. Connect the 12 Volt ignition wire to a key-on battery source.
2. Hook the wire harness in the cab to the wire harness from the
hooklift.
Note: Alarm will now sound when dump tabs have been
damage. Tab alarm installtion is required.
DANGER
MISUSE HAZARD
Operation of loader when
dump tabs are not properly
fastened, can result in
unexpected personal and
equipment damage.
Inspect tabs daily.
26134
PN 26291
PN 26289
2 SECTION 3 SECTION
96 INCH
PN 50835 PN 50836
144 INCH
PN 53444 PN 53445
192 INCH
P
N 50837 PN 50838
To Next Page
