stellar labs Flex36 60-8 - Tilt Assembly (All Flex36 Models) - PN 33049

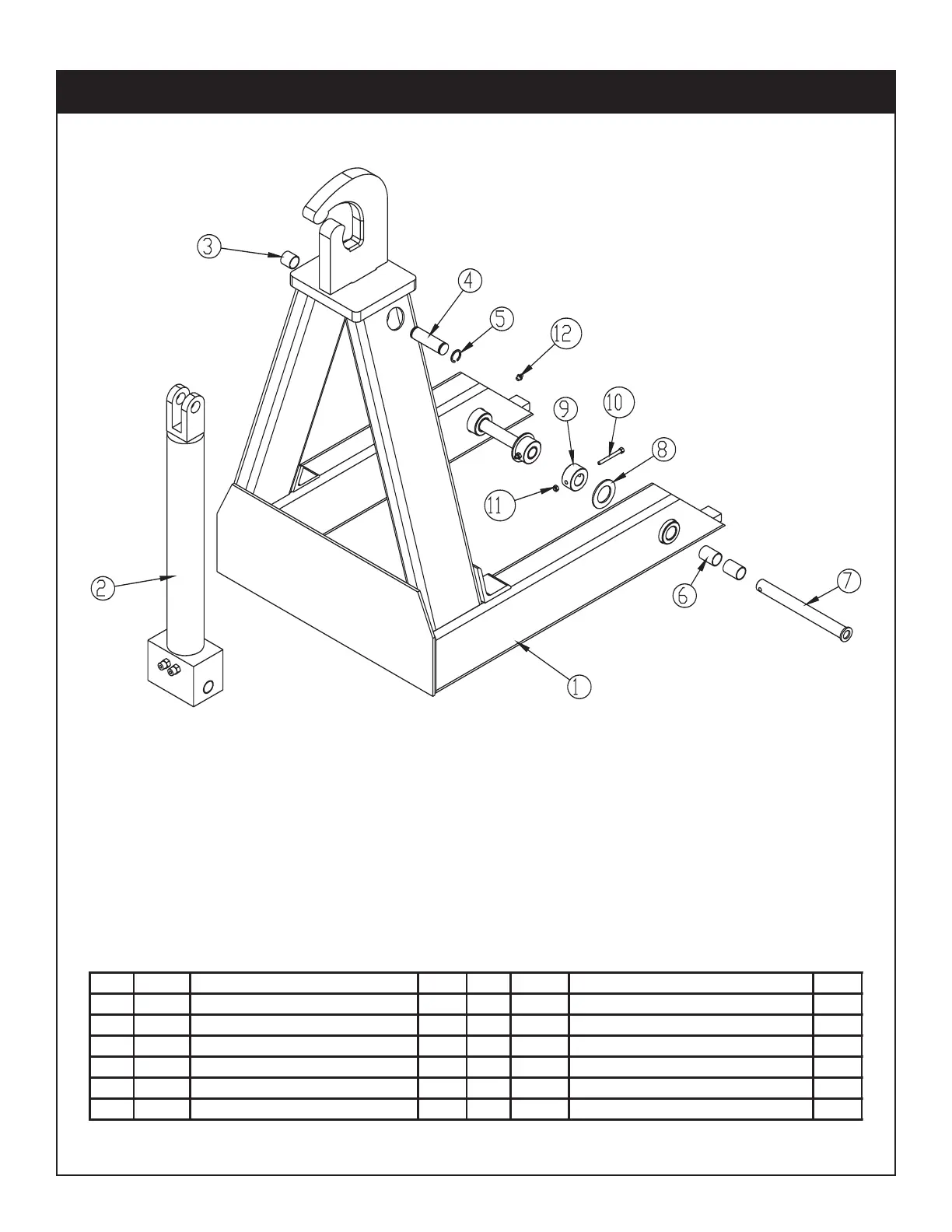

Assembly Drawings 53
PN 33049
ITEM PART DESCRIPTION QTY. ITEM PART DESCRIPTION QTY.
1 33050 TILT WLDMT FLEX36 1 7 33103 PIN WLDMT 1.00X10.50 2
2 23460 CYLINDER ASM 3.00X17.00 1 8 D0419 THRUST WASHER 2
3 0069 BUSHING QSI-1618-16 1 9 33104 COLLAR 1.03X2.00X1.00 2
4 0064 PIN 1.00X3.38 1 10 0339 CAP SCR 0.25-20X2.50 HHGR5 2
5 0110 SNAP RING 1.00 ID 7200-100 2 11 0333 NUT 0.25-20 HHGR5 NYLOC 2
6 0068 BUSHING QSI-1618-24 4 12 c1592 ZERK 1/8 NPT STRAIGHT 2
Tilt Assembly (All Flex36 Models) - PN 33049
