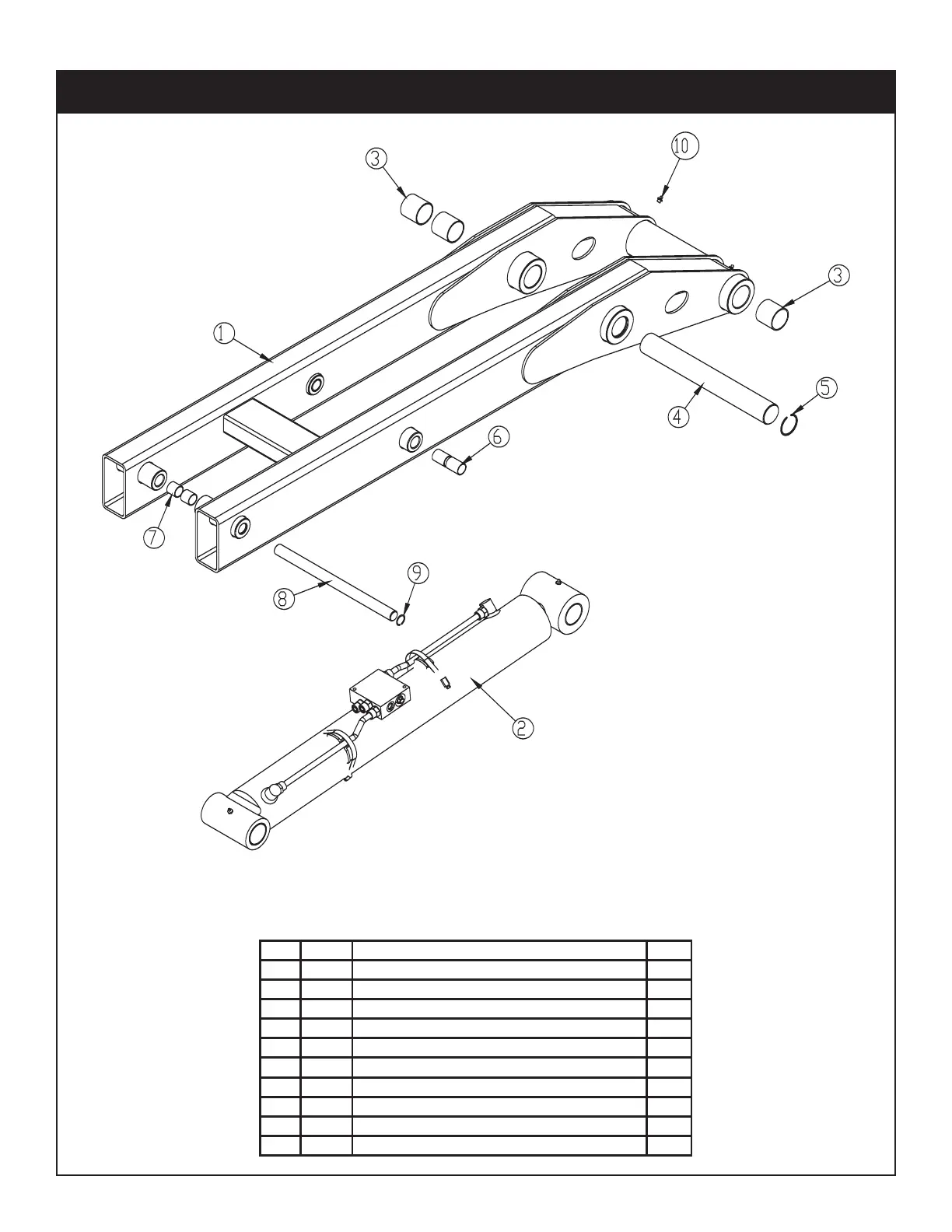

Assembly Drawings 49
PN 33047
ITEM PART DESCRIPTION QTY.
133048 SECONDARY WLDMT 60-8 FLEX36 1
227116 CYLINDER ASM 27020 4.00X29.63 1
3 4381 BUSHING 32DXR32 2.00X2.00 GARLOCK 6
4 22286 PIN 2.00X16.00 1
5 2257 SNAP RING INSIDE 2.00 2
6 0068 BUSHING QSI-1618-24 4
7 0069 BUSHING QSI-1618-16 4
8 22285 PIN 1.00X15.00 1
9 3875 SNAP RING 1.00 INTERNAL 2
10 c1592 ZERK 1/8 NPT STRAIGHT 2
Secondary Assembly (60-8) - PN 33047
