• Bolt L-bracket to front of base, drilling and tapping holes in appropriate area.
• Attach dump light switch to L-bracket.
• Drill and tap ¼-20 hole in bottom of secondary tube. Hole should be located
directly above dump light switch when secondary is in lowered position.
• Screw in elevator bolt, and adjust so that switch is engaged when secondary is in
lowered position.
• Install light in bracket provided with control console.
• Complete the wiring; following instructions provided with dump light kit.

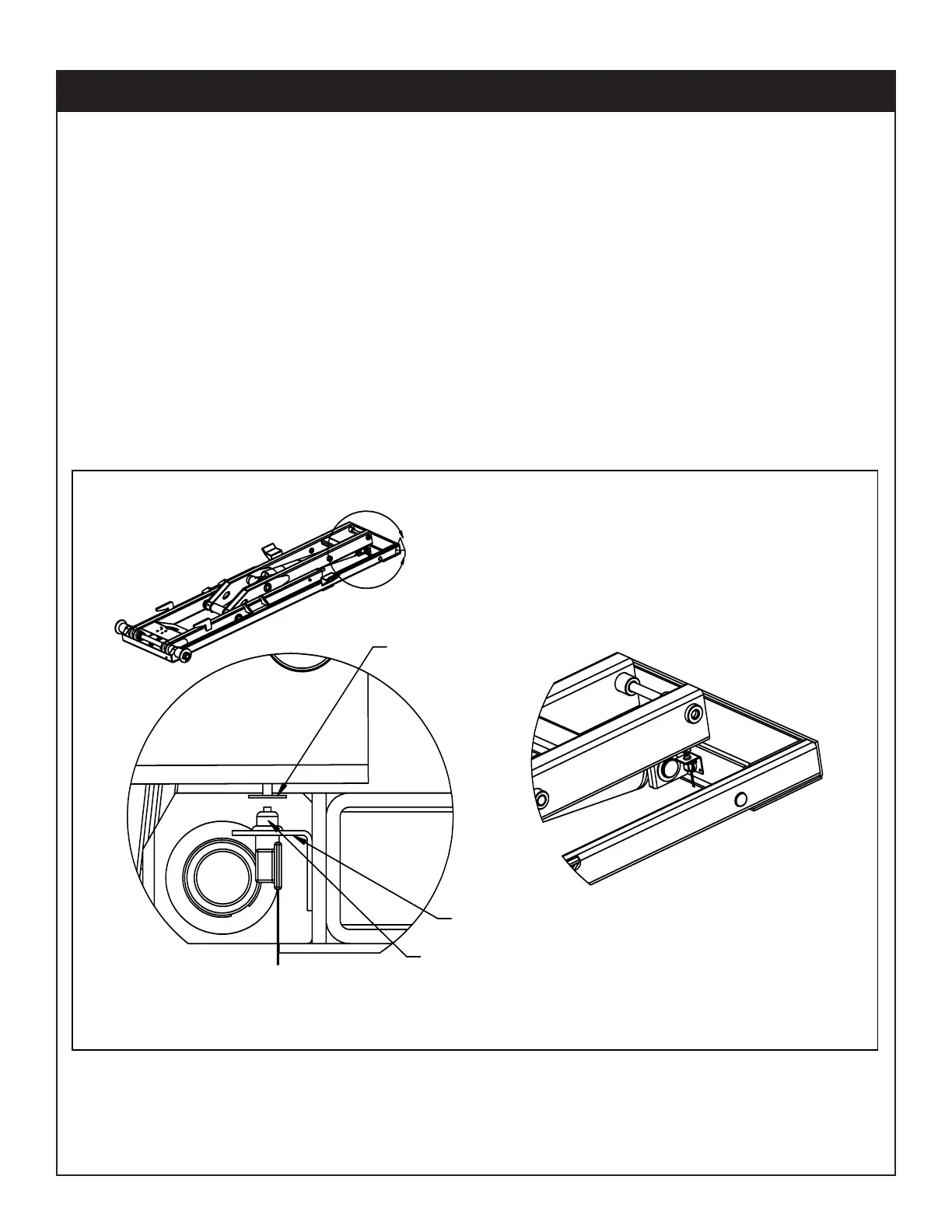

Elevator bolt
L-bracket
Dump light switch
Detail A
Scale 1 : 8
