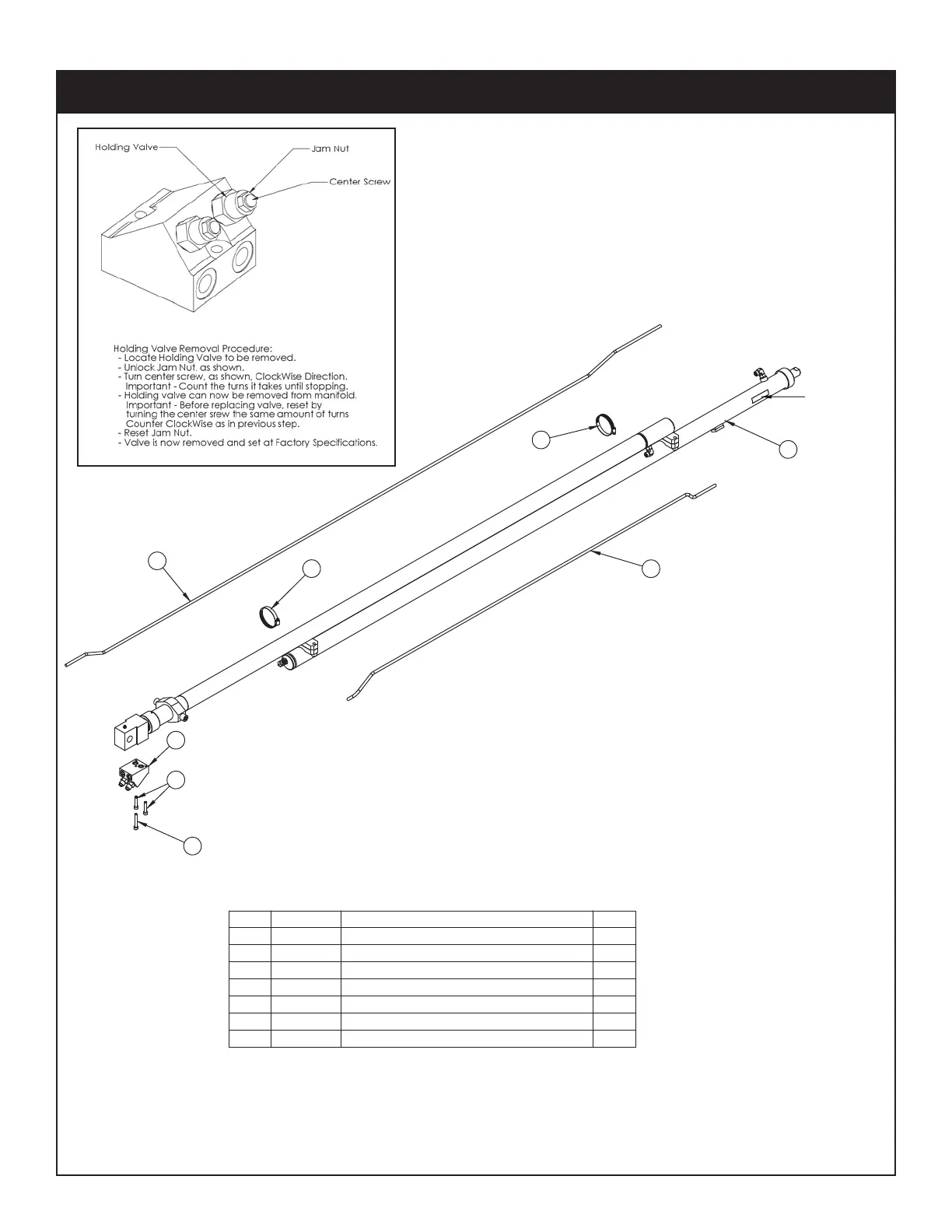

stellar labs Model 7628 - Extension Cylinder Assembly - PN 50929

Assembly Drawings 
PN 50929
.YTQNOITPIRCSEDTRAPMETI
150919 CYLINDER EXT 6628 2 STAGE 2.0/2.0 1
214115MANIFOLD ASM 6620 EXT CBBD-LJN-XVN 1
311882 CAP SCR 0.38-16X1.75 SH ZC 2
414601 CAP SCR 0.38-16X2.25 SH ZC 1
531652 TUBE ASM 0.38X 72.86 EXT CYL 6628 1
631651 TUBE ASM 0.38X 119.75 EXT CYL 6628 1
724729 HOSE CLAMP #52 3.00 - 3.75 2
7
1
5
2
4
6
3
7
Cylinder
Serial Tag
Location
Extension Cylinder Uses:
Upper Seal Kit - PN 54778
Lower Seal Kit - PN 20310
Extension Cylinder Assembly - PN 50929
