-8-
Proceed as follows for the tool change:
- Lock the spindle 1 (Fig. 1) to unclamp the tool by pressing the locking button 4 (Fig. 1).
- Detach union nut 3 with an open-ended spanner AF 17 or AF 25.
- Pull off the tool to the front.
- Push the new tool into the tool holding fixture up to the limit stop.
- Check the tool’s seat.
- Spindle 1 (Fig. 1) is locked when the tool is clamped.
- Tighten union nut 3 with the open-ended spanner.

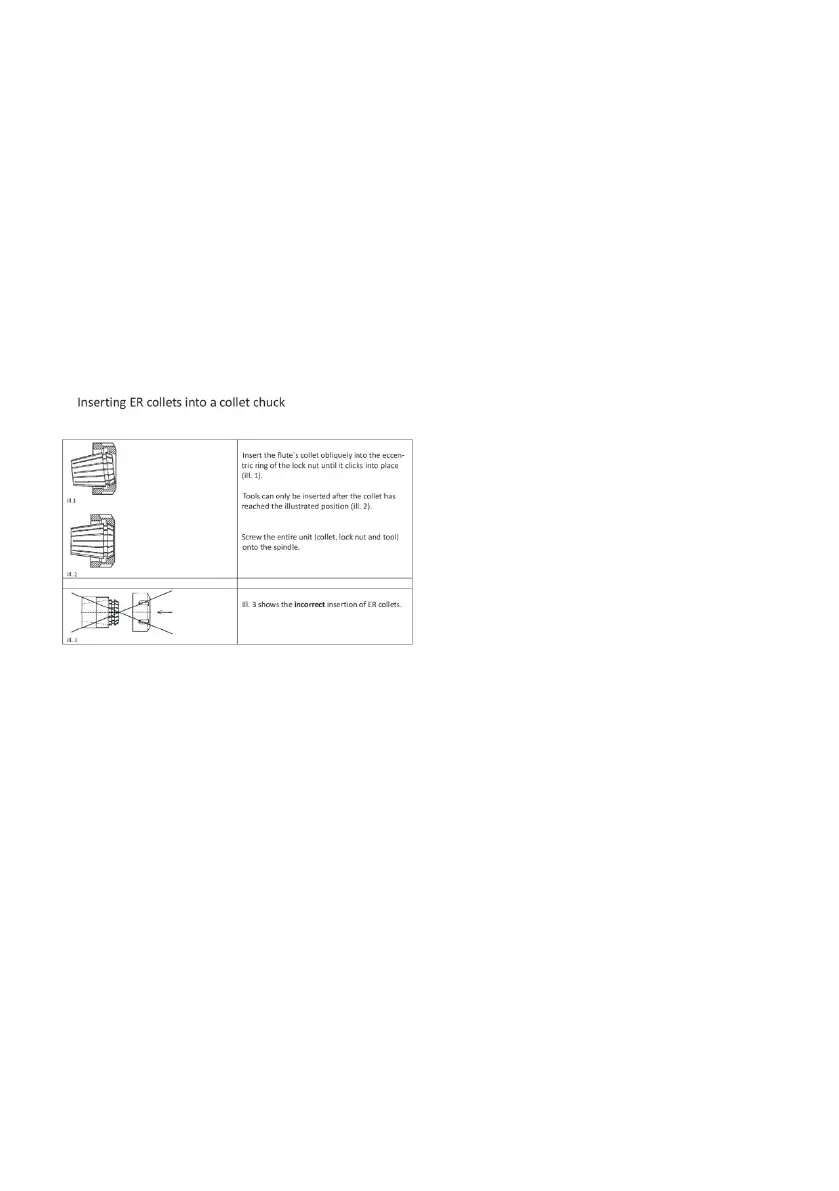

4.2.2 Quick tool clamping
The collets must snap into the clamping nut. Only then, a correct clamping of the end mill and, above all, a
rerelease of the collet are possible.
5 Operation
5.1 Initial operation
Personnel entrusted to work with the power tool must be made aware of the operating manual, calling
particular attention to the chapter “Safety instructions”.
This operating manual only deals with the power tool and does not take the installation situation into account.
Please take note of any other operating manuals.
5.1.1 Switching on
Push the power switch 5 (Fig. 1) forward until it engages. If the power tool is connected to the mains voltage,
the setting wheel X (Fig. 2) lights up in blue (BU) and the power tool accelerates to the previously set speed
after 0.2 s with a soft start. The duration of the soft start depends on the set speed and is approx. 1.2 s at
maximum speed.
5.1.2 Switching off
Push onto the rear end of the power switch 5 (Fig. 1). The switch audibly jumps back to off position. The
lighting on the setting wheel X (Fig. 2) goes out and the motor coasts to a standstill.
