2 Mechanical structure
10 SA-112-0106V1.0-WEM-GB © F. Stephan GmbH

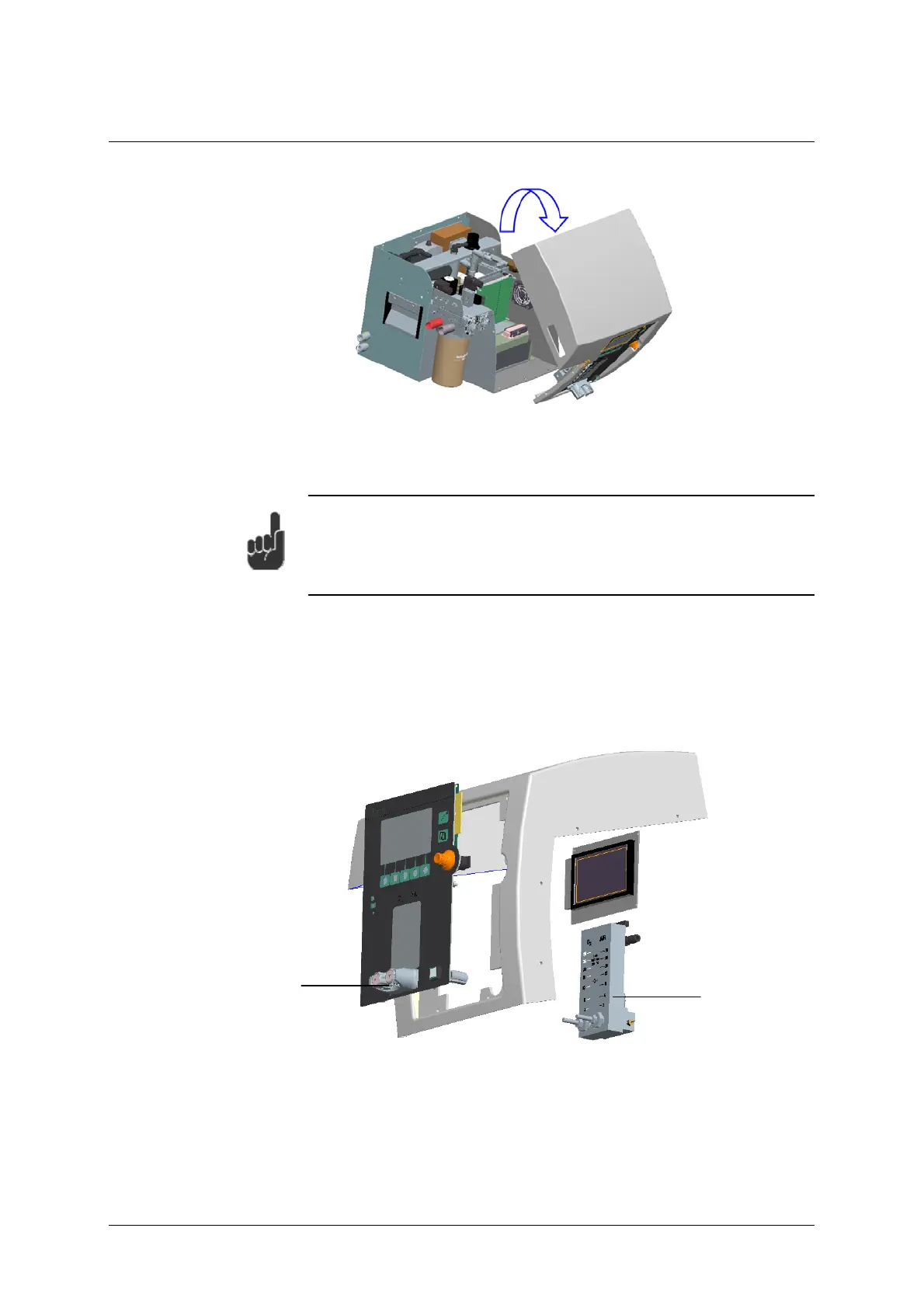

Fig. 2: Hinging open the housing
Before hinging open the front housing, ensure that the connectors for the
tube heating, the temperature sensors and the pneumotachograph have
been disconnected.
The plastic front housing is coated with an EMC varnish on the inside. It
contains the input periphery of the A
LIA ventilator.
This input periphery consists of touch buttons, the IGR (push/turn knob),
the LCD display, the controller board, the double flowmeter ON/OFF
switch on the front pane.
Fig. 3: Front housing with input periphery
1 double flow meter
2 FiO
2
and flow adjustment
1
2
