4.3 Output of measured values
The output function "out"-ENTER can be used for direct reading of the
current IO values of the A
LIA ventilator. These values are shown in the
sections INTADC, EXTADC, CTRLREG and Vimage with additional
abbreviations. These act as interpretation help.
These input values are used as the basis for calculations which are shown
in the last section, broken down according to pressure, flow, O
2
and
temperature.

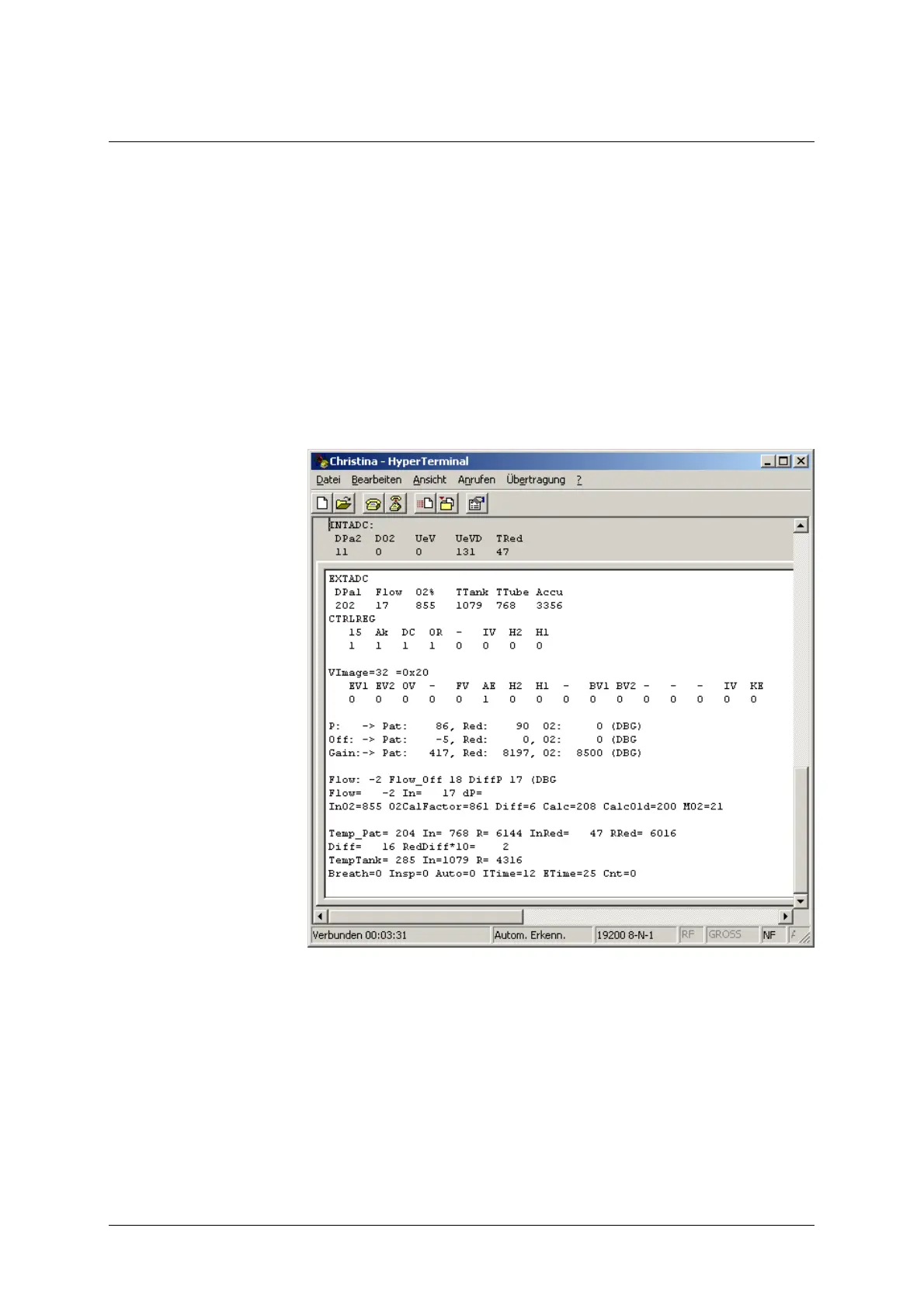

Fig. 42: Output function "out"
INTADC stands for the output values of the AD converter in the
controller board.
DPa2 = Digital value of the redundant patient pressure sensor
DO2 = Monitoring the oxygen pressure switch
UeV = Measuring the valve flows
UeVD = Measuring the power supply of the pressure sensors
TRed = Digital value of the redundant temperature sensor
INTADC
