3.2.3 Inverter
The integrated clocked inverter is used only to supply power to the
internal compressor for generating compressed air.
The power supply is switched directly from the Power Distribution Unit
PDU (compressor ON/OFF).

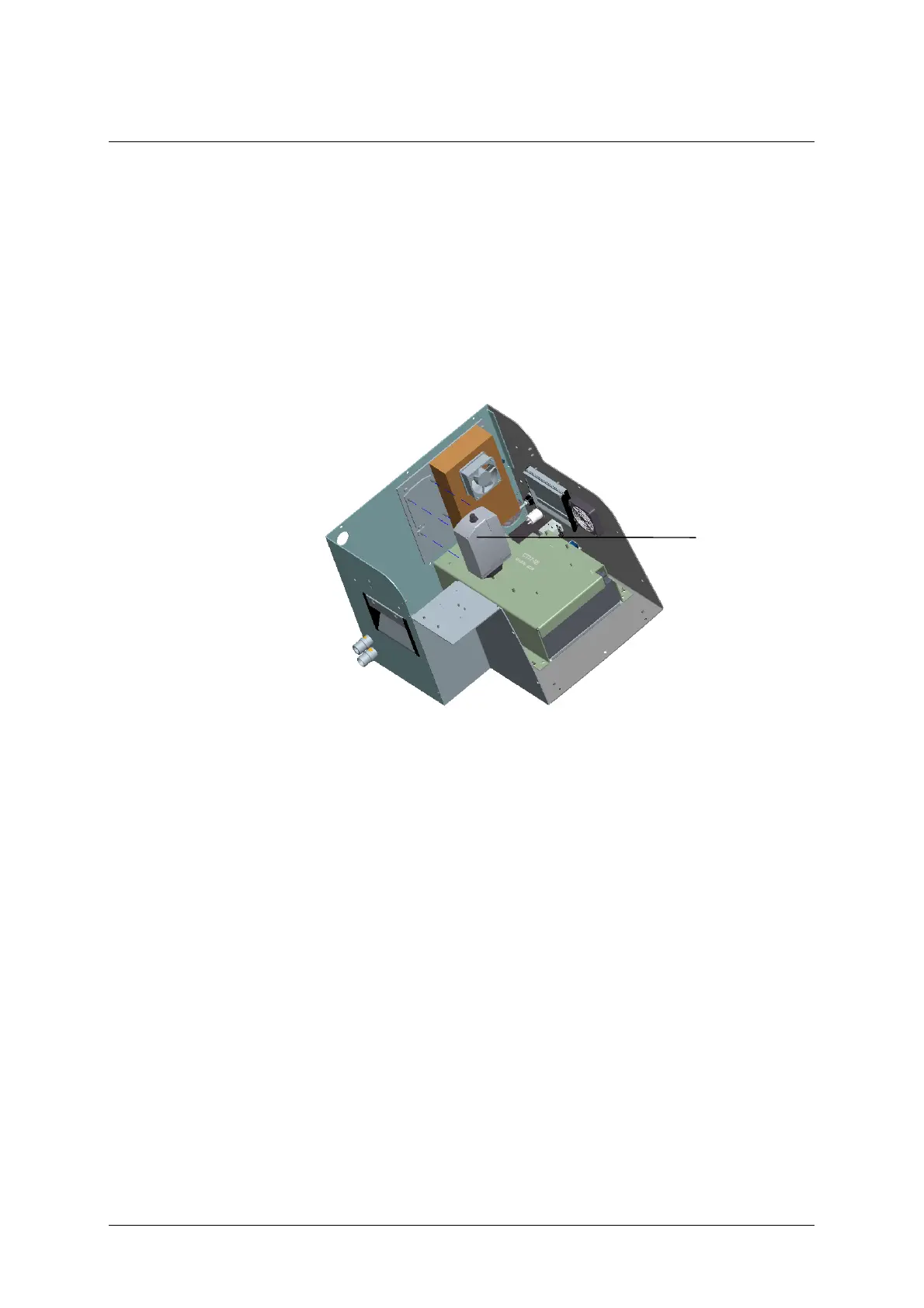

Fig. 20: Inverter
1 inverter
Input voltage : 15V/DC
Output voltage: 230V/AC, 50 Hz stabilized
Continuous power: 100 W
The inverter has thermal overload protection and electronic short-circuit
protection.
