3.2.1 Power supply unit
The A
LIA ventilator is equipped with a Power supply unit in accordance
with DIN EN 60601.

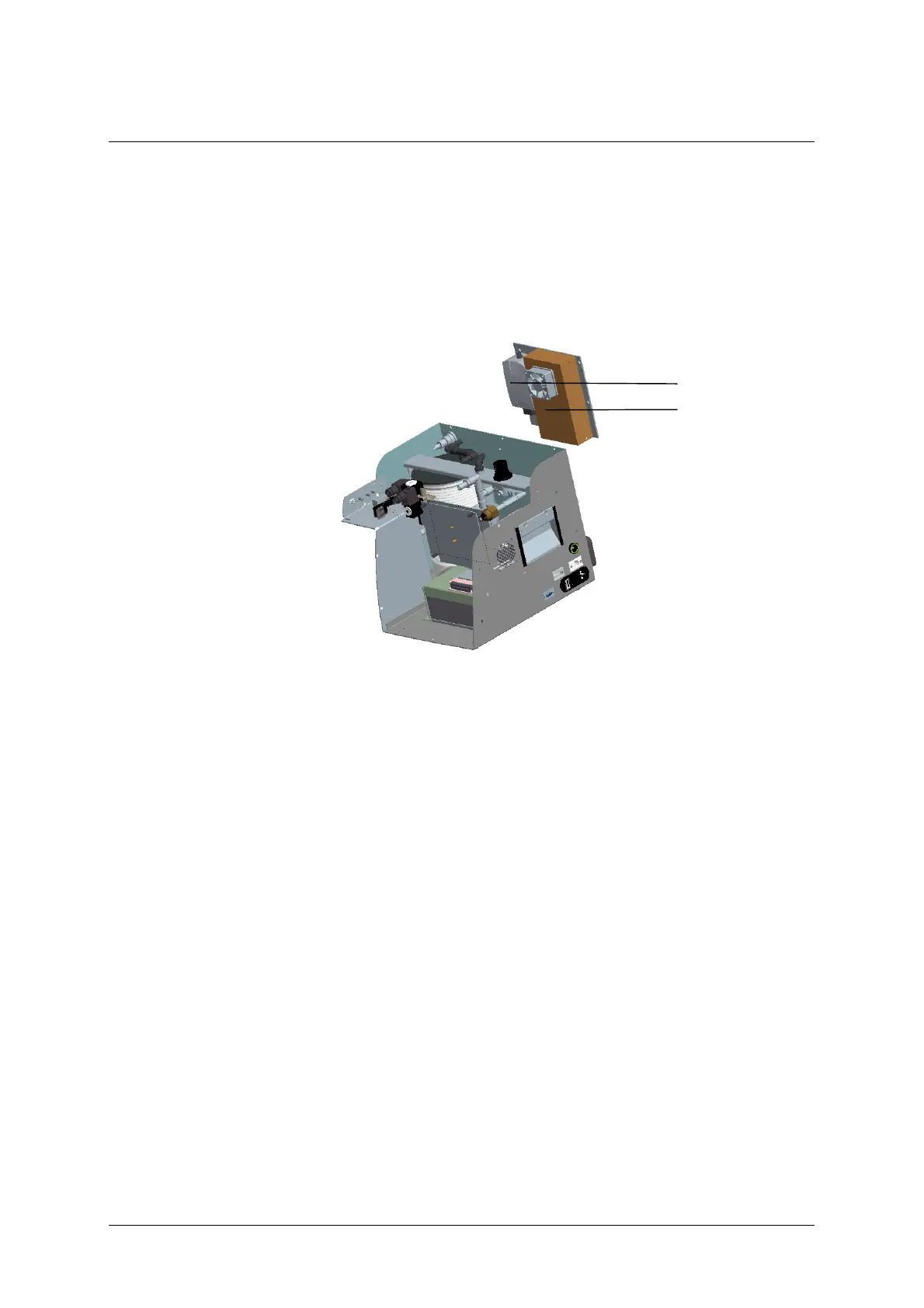

Fig. 18: A
LIA power supply unit
1 inverter 2 power supply unit
Input voltage: 100 – 240 V AC, 2 A, 50/60 Hz
Fuse: 2 A
Output voltage: 15 V DC, 185 W
Fuse: 16 A
The output voltage of 15V DC and the DC_good signal are conveyed
directly to the Power Distribution Unit PDU.
