3 Components and functions
© F. Stephan GmbH SA-112-0106V1.0-WEM-GB 41

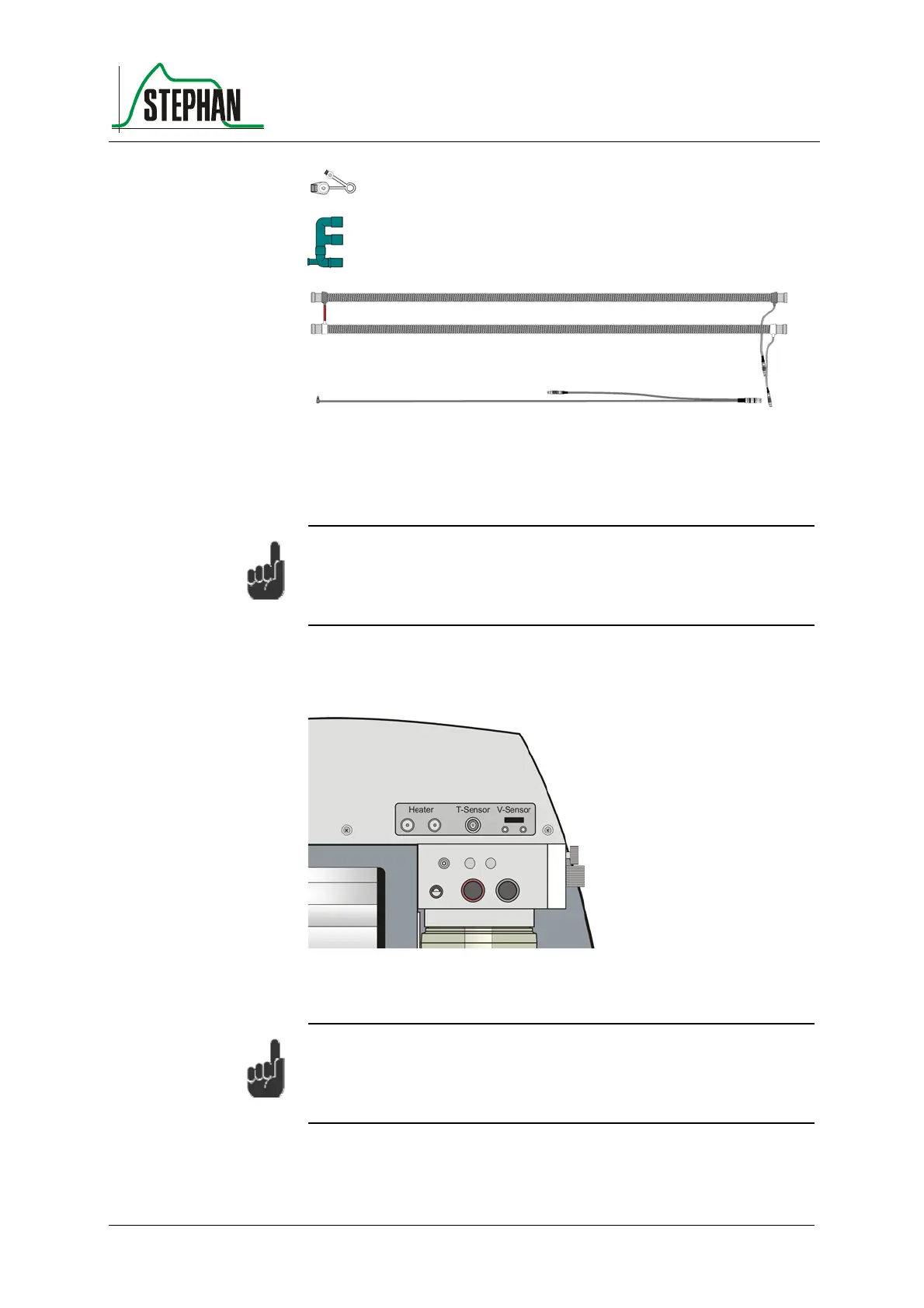

Fig. 35: Tube system for adults
At the patient's end of the inspiration tube, the temperature sensor for
controlling the tube temperature is inserted in the tube fitting.
The patient tube system can only be operated with temperature sensor,
because otherwise the opening for the sensor would prevent any build up
of pressure!
The connectors for the heating are plugged into the corresponding sockets
on the ventilator.
Fig. 36: Heating connection
To measure the inspired or expired flow, a pneumotachograph type D
make F. S
TEPHAN GMBH must be used together with a patient tube
system for adults.
