CL57T(V4.0) Closed-Loop Stepper Drive
2

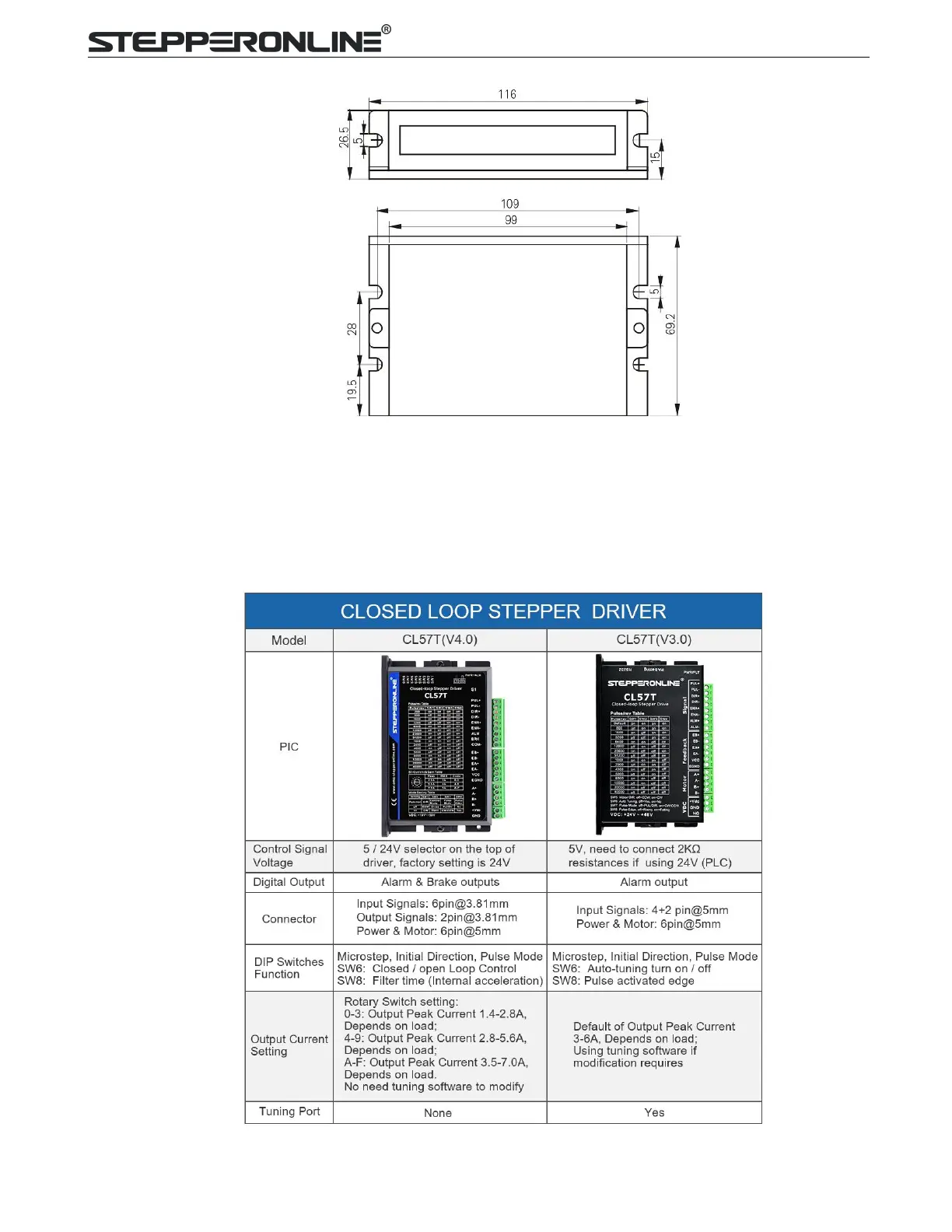

2.3 Mechanical Specifications
(unit: mm [1inch=25.4mm])
Figure 1: Mechanical specifications
2.4 Heat Dissipation
 CL57T(V4.0) reliable working temperature should be no more than 40℃ (109°F)
 It is recommended to mount the drive vertically to maximize heat dissipation. Mount a cooling fan nearby if
necessary.
 If multiple CL57T(V4.0) drives are installed, it is suggested to keep a minimal 30mm (12 inches) between two of
them.
