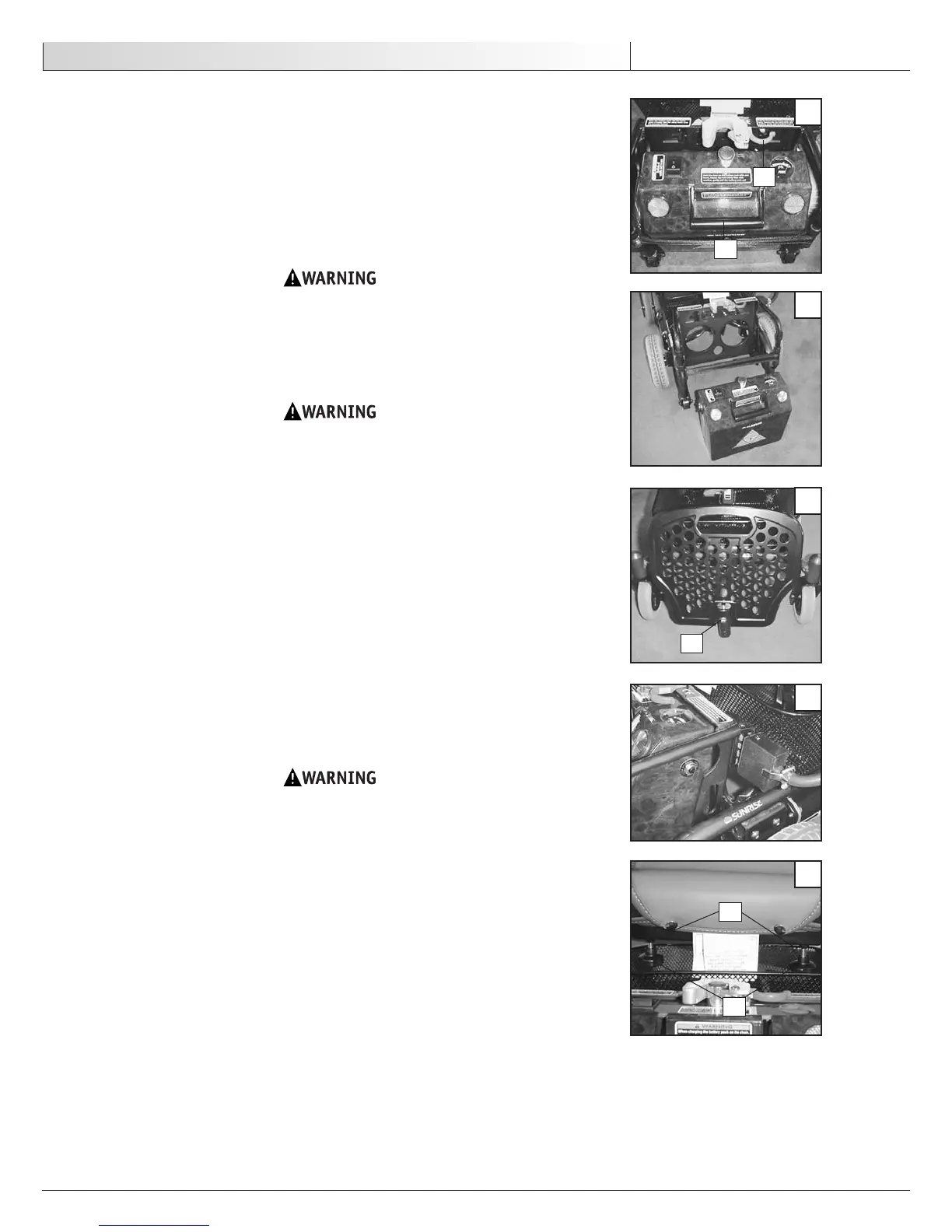

A. BATTERY CASE REMOVAL (Figures 1 & 2)
To remove the batteries for transporting or servicing:
1. Remove Battery Case
a. Pull red battery pack release (A) forward.
d. To remove battery pack, lift up on battery pack handle (B).
2. Battery Installation
See Section XI. Batteries, D for installation and wiring diagram.
Batteries may weigh up to 55 lbs. Care must be taken to avoid injury when lifting
up on battery straps.
B. FOOTPLATE ANGLE ADJUSTMENT (Figure 3)
Adjust bolt (C) until desired angle is reached.
Avoid opening doors with footplate or legrests. Damage or injury may result.
C. INTEGRAL JOYSTICK
(Figure 4)
1. To Connect
a. Line up receptacle on large rectangular connector (Beau Connector) located behind
the seat with the pins on the connecter located on the joystick harness.
b. Push in firmly.
2. To Disconnect
Pull up on beau connector until it disconnects from the frame mounted receptacle, located
behind the seat.
D. ARMRESTS WIDTH ADJUSTMENT (Figure 5)
a. Insert armrest support inside of 1" square tube (D) located on back of the seat.
b. Repeat for other side of seat.
c. Position armrest at appropriate width.
d. Tighten knob screws (E) on square tube.
Avoid pinching fingers in the flip-back armrest.
IX. Set-Up, Adjustment & Use
21
1
2
3
A
B
C
4
5
E
D
