24

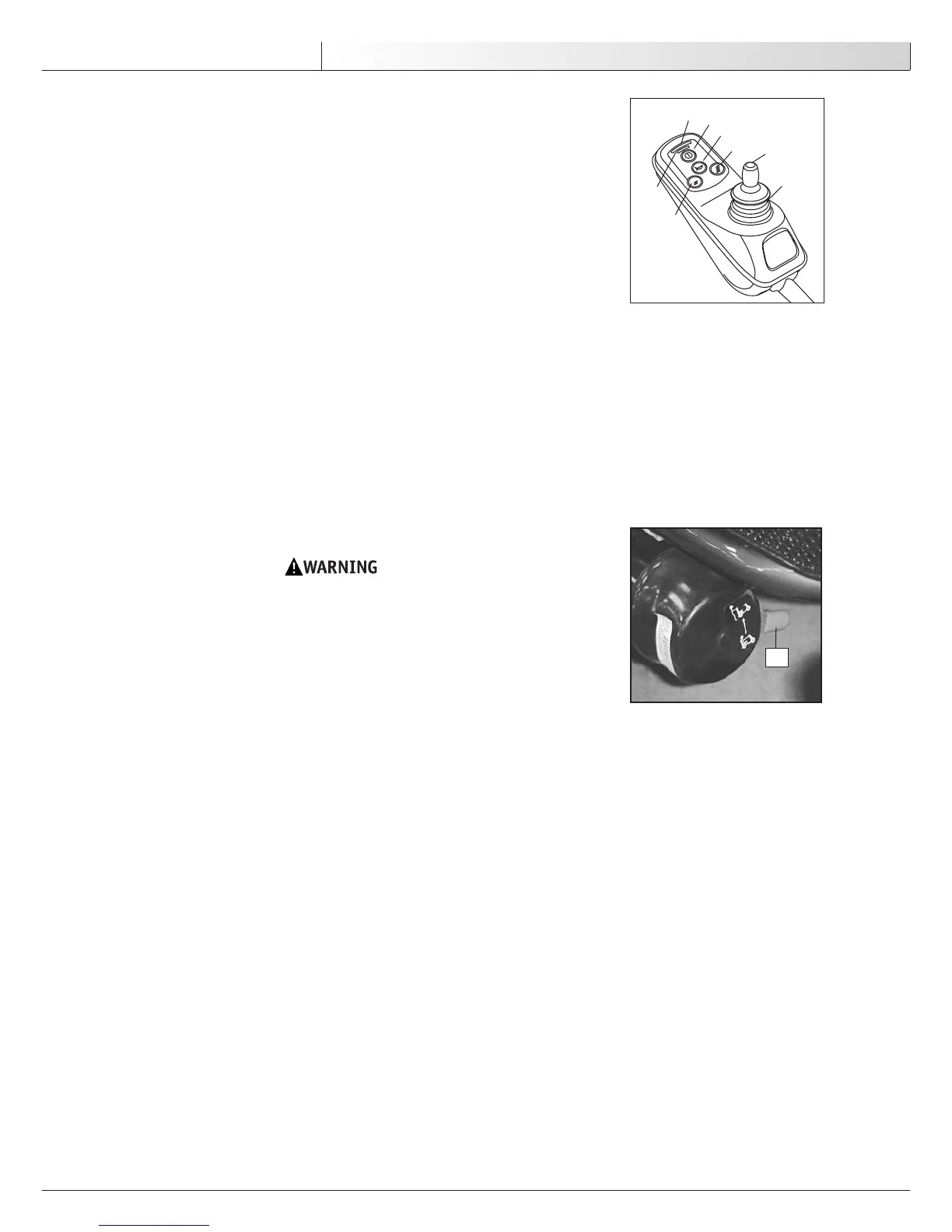

X. Operating Guide
A
4. Horn (F)
5. Joystick (G)
The joystick controls the direction and speed of your chair. Turn the chair on and move the
joystick in the direction you want to go.
•Moving the joystick from the neutral (center) position disengages the motor locks,
allowing the chair to move.
•The chair will move faster the more you move the joystick away from neutral.
NOTE– If your speed becomes hard to manage, release the Joystick and the chair will come to a com-
plete stop.
•When you release the joystick it will return to neutral; the chair will slow to a stop
and the motor locks will reengage.
•We recommend that you switch the chair off if you stop for any length of time. This
will conserve battery power.
NOTE– Once the chair stops, switching the chair off will not affect the motor locks.
6. Joystick Boot (H)
Make sure the boot is not torn or cracked (this could allow debris, water or moisture to
enter). If the boot is torn or cracked, replace it as soon as you can.
E. MOTOR LOCKS
Disconnect the motor locks when you need to manually push the chair.
(For example, in an emergency, or if batteries fail).
1. Do not disengage motor locks unless power to the chair is off.
2. With either one or both brakes released, the chair will not operate and the
battery charge indicator will flash 9 bars rapidly (if power to the chair is on.)
3. Be aware that the chair will not have brakes in the free-wheel position.
4. Make sure that the person pushing the chair has full control when motor
locks are disengaged.
1. Release Motor Locks
a. Underneath the chair you will find two levers marked in red.
b. Push the brake releases upward.
2. Engage Motor Locks
a. Underneath the chair you will find two levers marked in red.
b. Push the brake releases down. (A).
A
D
F
G
H
B
E
C
Integral Joystick
To Next Page
