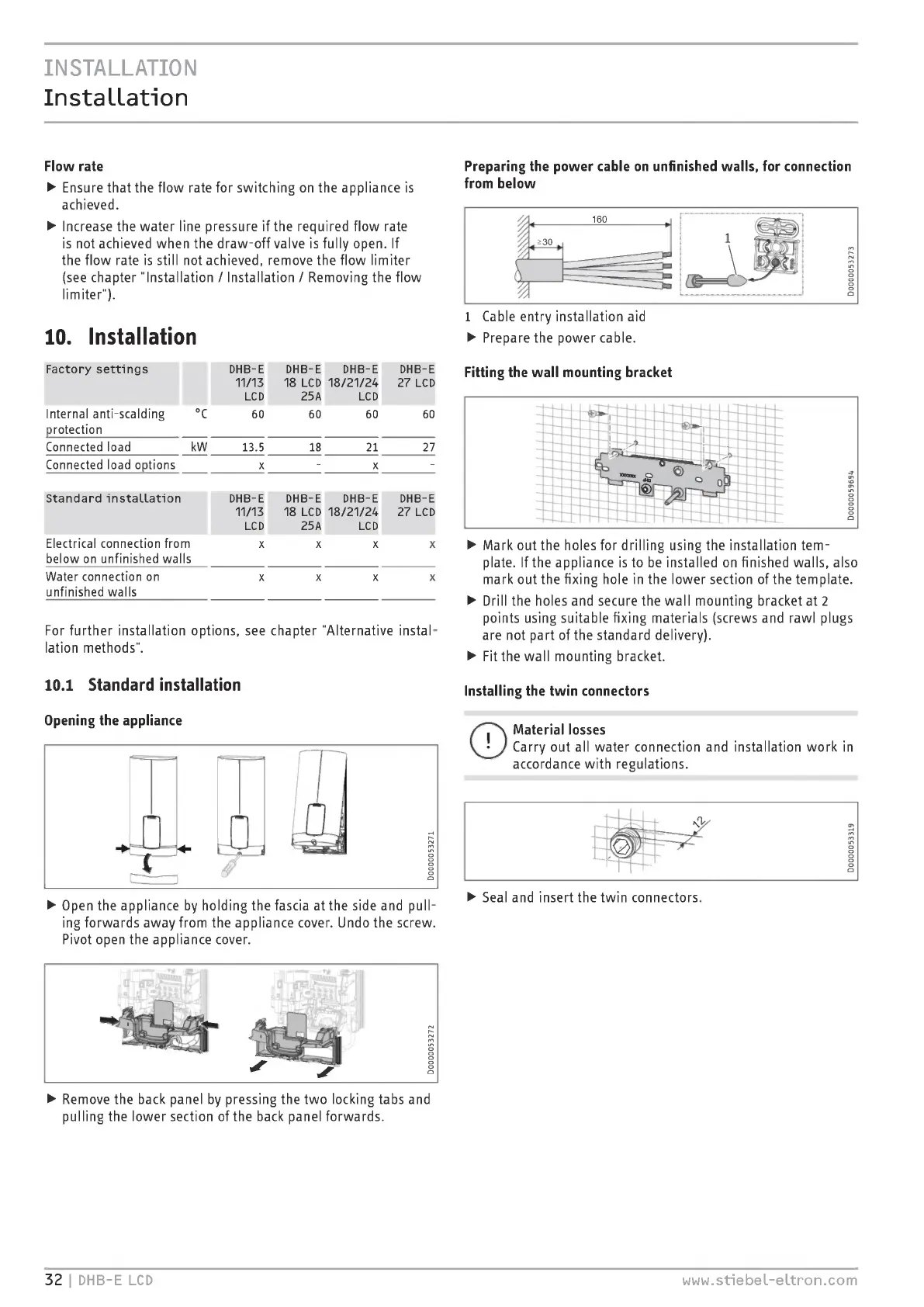

INSTALLATION
Installation
Flow rate Preparing the power cable on unfinished walls, for connection
from below
> Ensure that the flow rate for switching on the appliance is
achieved.
> Increase the water line pressure if the required flow rate
is not achieved when the draw- off valve is fully open. If
the flow rate is still not achieved, remove the flow limiter
(see chapter " Installation / Installation / Removing the flow
limiter").
10. Installation
Factory settings DHB-E DHB-E DHB-E DHB-E
11/13 18 LCD 18/21/24 27 LCD
LCD 25A LCD
Internal anti- scalding ° C 60 60 60 60
protection
Connected load kW 13.5 18 21 27
Connected load options x - x
Standard installation
Electrical connection from
below on unfinished walls
DHB-E DHB-E DHB-E DHB-E
11/13 18 LCD 18/21/24 27 LCD
LCD 25A LCD
X x x x
Water connection on
unfinished walls
x x x x
For further installation options, see chapter " Alternative instal-
lation methods".
10.1 Standard installation
Opening the appliance
> Seal and insert the twin connectors.
>
Open the appliance by holding the fascia at the side and pull-
ing forwards away from the appliance cover. Undo the screw.
Pivot open the appliance cover.
> Remove the back panel by pressing the two locking tabs and
pulling the lower section of the back panel forwards.
1 Cable entry installation aid
> Prepare the power cable.
Fitting the wall mounting bracket
D0000059694
> Mark out the holes for drilling using the installation tem-
plate. If the app iance is to be installed on finished walls, also
mark out the fix ng hole in the lower section of the template.
> Drill the holes and secure the wall mounting bracket at 2
points using suitable fixing materials ( screws and rawl plugs
are not part of the standard delivery).
> Fit the wall mounting bracket.
Installing the twin connectors
O
Material losses
Carry out all water connection and installation work in
accordance with regulations.
32 I DHB-E LCD www.stiebel-eltron.com
