ENGLISH
  95


 Reposition the threaded stud on the wall mounting bracket
(the stud has a self-tapping thread).
 Rotate the wall mounting bracket 180° and mount it on the
wall (the DHF logo is then turned towards the reader).

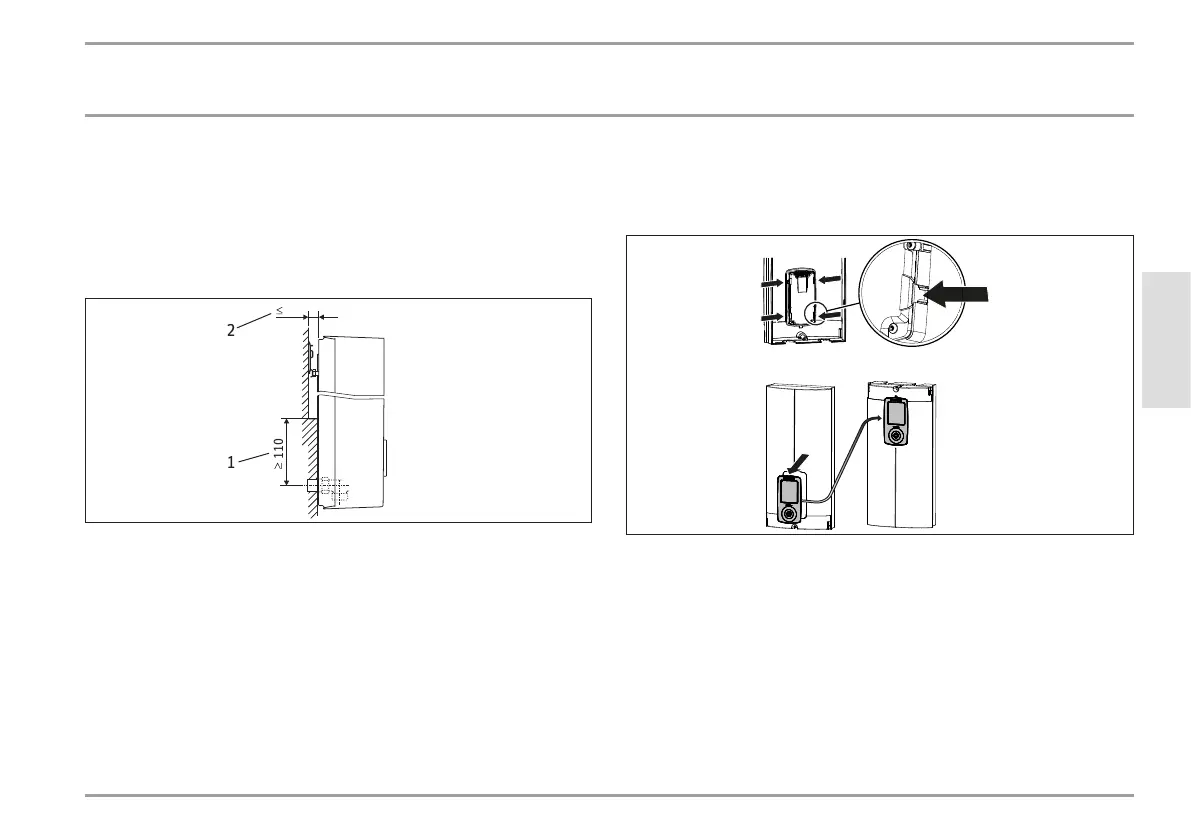

13.11 Installation with offset tiles
110
20
26_02_02_1066_
2
1
1 Minimum contact area of the appliance
2 Maximum tile offset
 Adjust the wall clearance. Lock the back panel in place using
the fixing toggle (turn 90° clockwise).
13.12 Pivoting appliance cover
The appliance cover can be turned round for undersink instal-
lation.
D0000053287
 Remove the programming unit from the appliance cover by
pressing the locking hooks and removing the programming
unit.
 Turn the appliance cover (not the appliance) and refit the
programming unit. Push the programming unit home in par-
allel until all locking tabs engage. When engaging the locking
tabs, apply counter-pressure by pushing against the appli-
ance cover from the inside.

STIEBEL ELTRON DHE Connect 18/21/24 Specifications

General

Power Output	18/21/24 kW
Voltage	400 V
Frequency	50/60 Hz
Control	Electronic
Protection Class	IP25
Rated Current	26/30/35 A
Energy Efficiency Class	A
Connection Type	Fixed Connection
Type	Instantaneous Water Heater
Connectivity	WiFi
Temperature Range	20°C to 60°C
