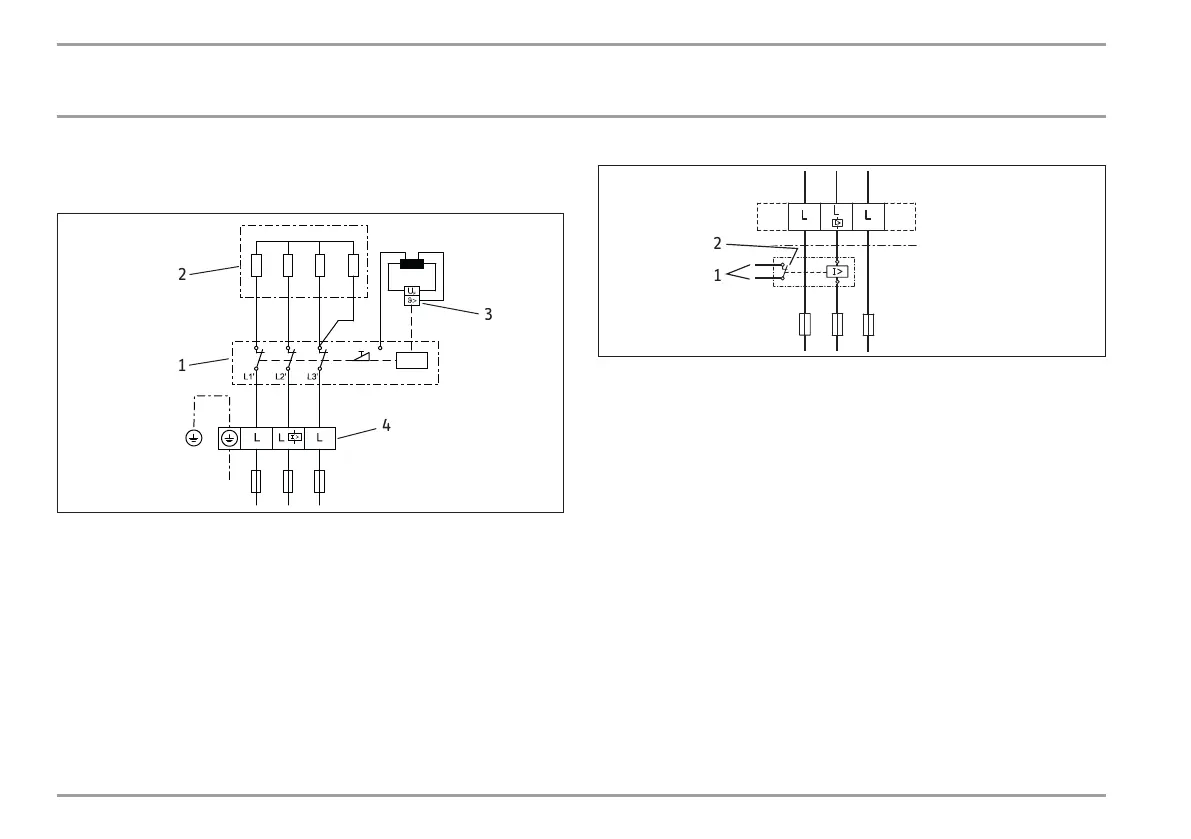

18.2 Wiring diagram
3/PE ~ 380-415 V
D0000053424
1
3
4
2
1 Power PCB with integral safety switch
2 Bare wire heating system
3 High limit safety cut-out
4 Mains terminal
Priority control with LR 1-A
85_02_02_0003_
2
1
1 Control cable to the contactor of the second appliance (e.g.
electric storage heater)
2 Control contact drops out when switching the instantaneous
water heater on.
