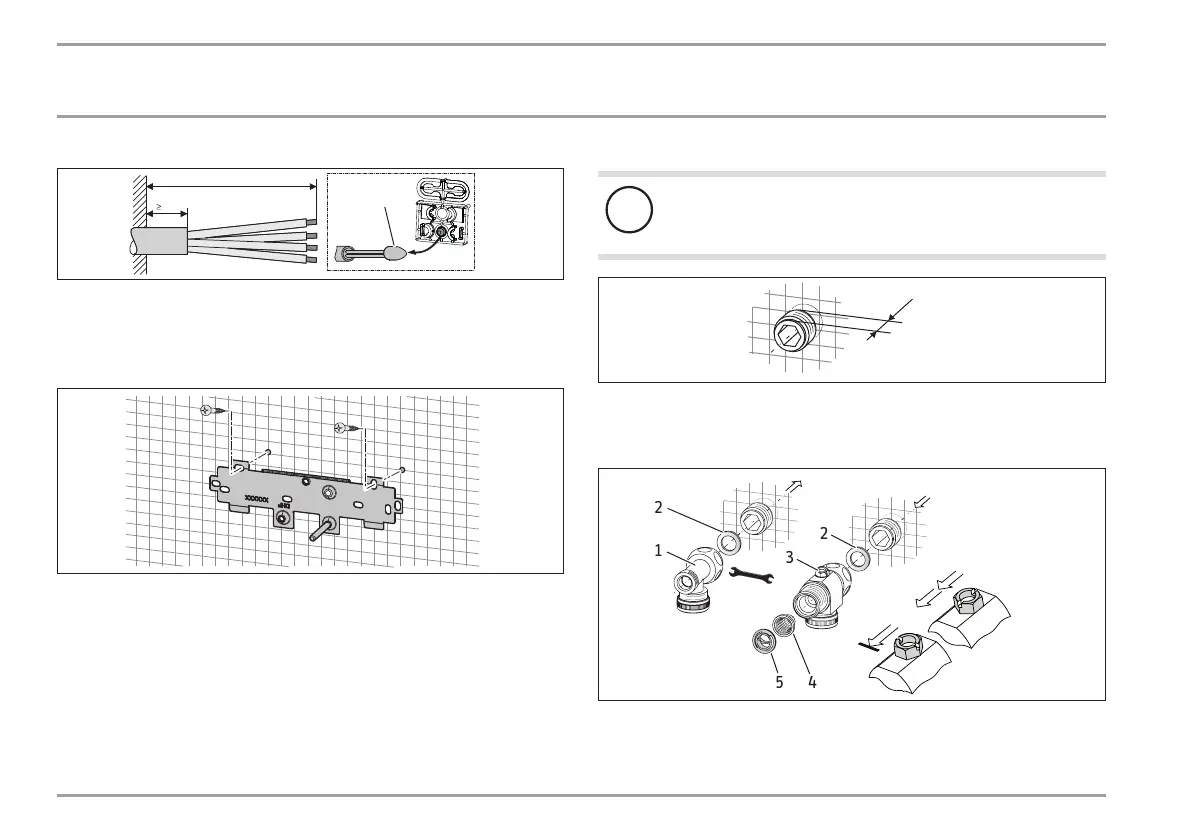

Preparing the power cable
160
30
D0000053273
1
1 Cable entry installation aid
Prepare the power cable.
Fitting the wall mounting bracket
D0000059694
Mark out the holes for drilling using the installation tem-
plate. If the appliance is to be installed with water connec-
tions on finished walls, also mark out the fixing hole in the
lower section of the template.
Drill the holes and secure the wall mounting bracket at 2
points using suitable fixing materials (screws and rawl plugs
are not part of the standard delivery).
Fit the wall mounting bracket.
Installing the twin connectors
!
Material losses
Carry out all water connection and installation work in
accordance with regulations.
12
D0000053319
Seal and insert the twin connectors.
Making the water connection
5 Nm
24
D0000059695
1
4
5
2
3
2
1 DHW with tee
2 Gasket
3 Cold water with 3-way ball shut-off valve
