14.7 Water installation on finished walls with
solder/press-fit fittings
You can connect copper or plastic pipes using the accessories
"solder fitting" or "press-fit fitting".
With "solder fitting" with threaded fitting for 12mm copper pipes,
proceed as follows:
Push the union nuts over the connection pipes.
Solder the inserts to the copper pipes.
Push the lower back panel section under the connection
pipes of the tap and push it into the back panel.
Secure the connection pipes to the tee and the 3-way ball
shut-off valve.
Note
Observe the tap manufacturer's instructions.

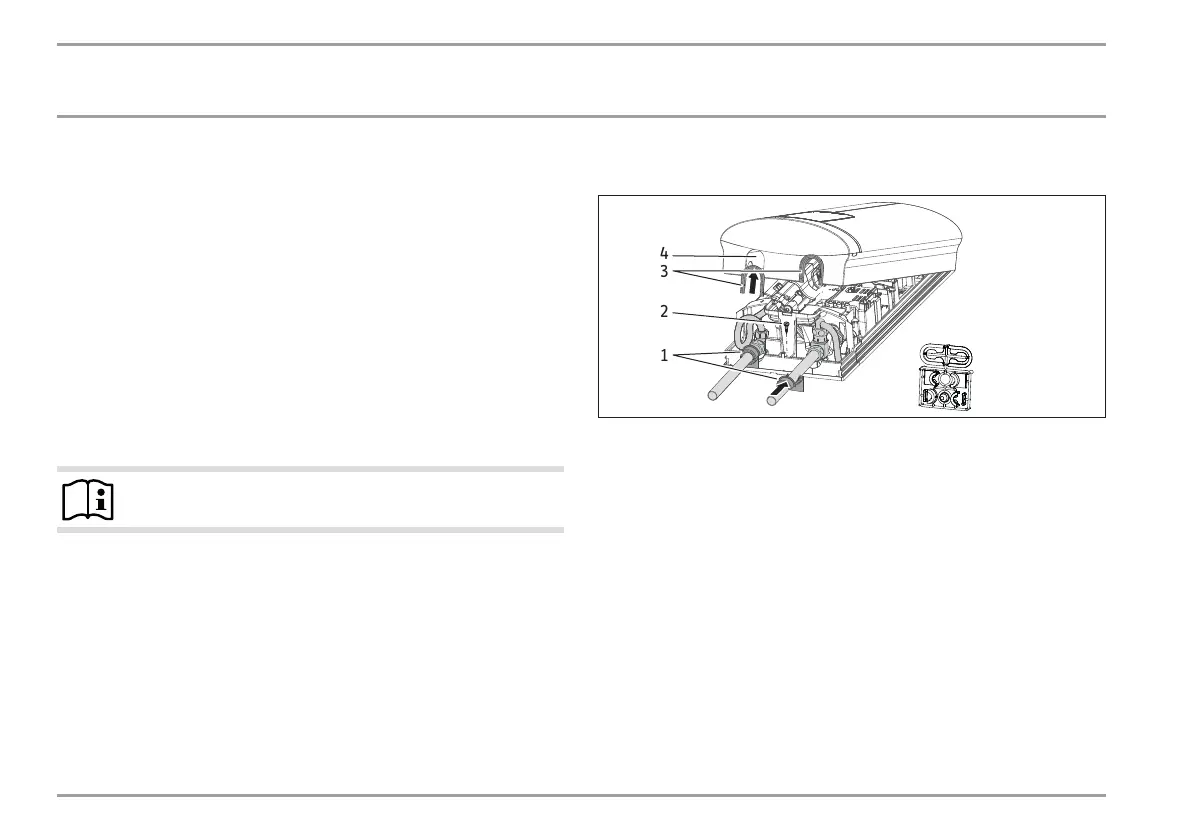

14.8 Fitting appliance cover for water installation on
finished walls
D0000073170
4
3
2
1
1 Back panel guides
2 Screw
3 Cover guides with sealing lips on the pipe side
4 Pipe knock-out
Cleanly saw and break out the pipe knock-outs in the appli-
ance cover. If necessary, use a file.
When installing the connection pipes without an offset, break
off the sealing lips on the cover guides.
Click the cover guides into place in the knock-outs.
Position the back panel guides on the pipes. Push them to-
gether. Then push the guides against the back panel as far
they will go.
Secure the lower back panel section with a screw.
