30 

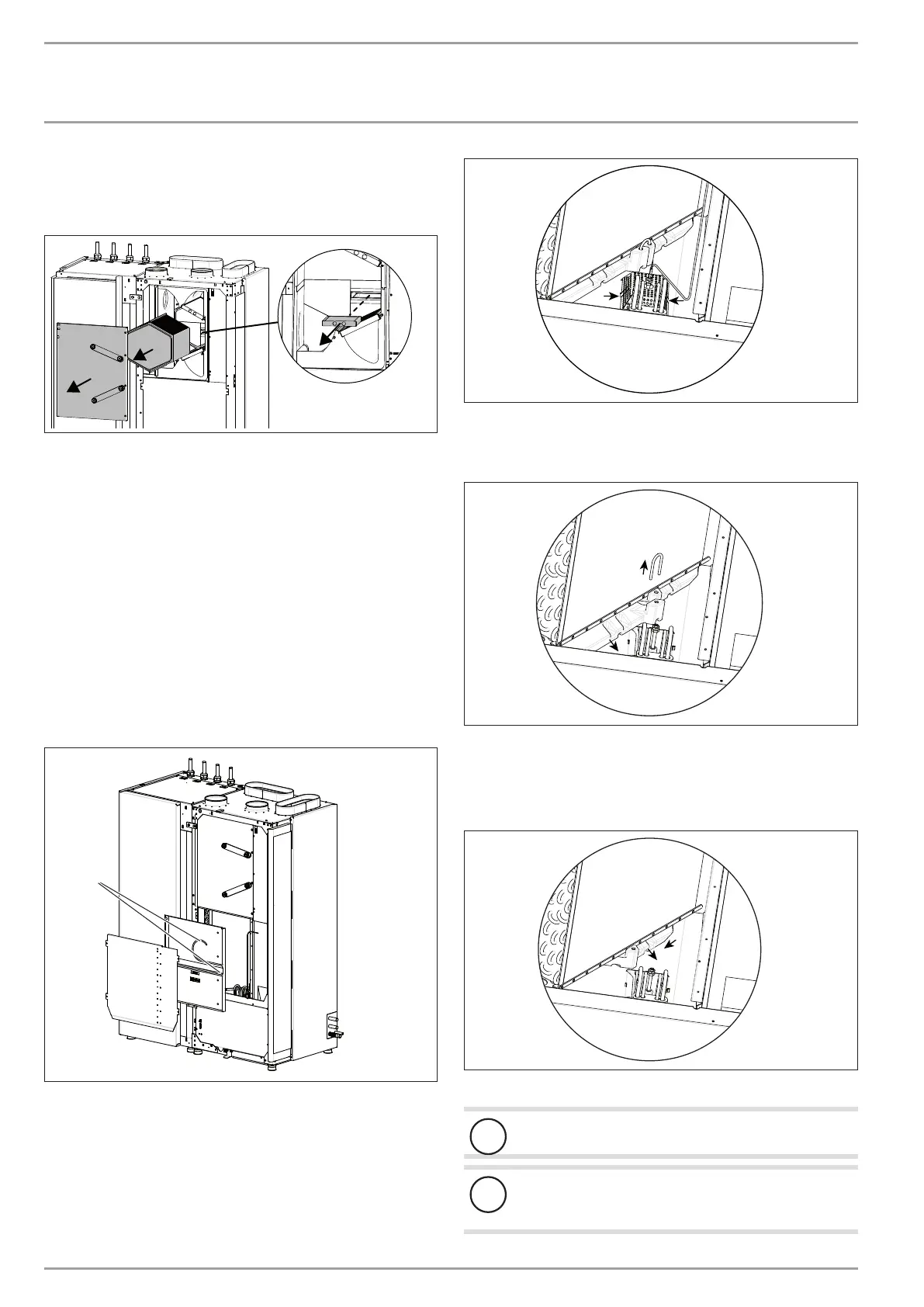

9.2 Cleaning the outdoor air filter
The outdoor air filter is fitted downstream of the cross-counter-
current heat exchanger.
1.
2.
3.
26_04_01_0613
1 Upper front panel
2 Cross-countercurrent heat exchanger
3 Outdoor air filter cassette
Pull out the cross-countercurrent heat exchanger.
Grasp the outdoor air filter cassette by the grip holes and
remove it.
Remove the filter from the outdoor air filter cassette, clean it,
and insert a new filter if required.
Refit the outdoor air filter cassette in the appliance.
Refit the cross-countercurrent heat exchanger in the
appliance.
Refit the upper front panel and the fascia.
9.3 Cleaning the evaporator fins
Check the evaporator fins for dirt from time to time.
26_04_01_0574
1
1 Defrost hose (hose of the pressure differential switch for cap-
turing the end of defrosting)
Undo the screws and remove the central front panel.
Remove the defrost hoses from the guide grooves in the EPS
cover.
Pull the now accessible EPS cover 6 to 8cm to the right.
Tilt the top of the EPS cover towards you from the appliance.
Pull the EPS cover upwards to remove.
26_04_01_0575
Remove the dirt grille fitted above the condensate pan by
compressing it from its sides and removing it upwards.
Check the defrost pan drain and clean it, if required.
26_04_01_0577
Below the evaporator is a two-part evaporator gasket. The two
parts of the gasket are connected with a bracket.
Pull the bracket upwards to remove.
First remove the l.h. half of the evaporator cover.
26_04_01_0591
Then remove the r.h. half of the evaporator cover.
!
Material losses
Do not use any cleaning agents, just water.
!
Material losses
Do not use a high pressure cleaner otherwise the evapo-
rator fins may be bent.
