10. Specification

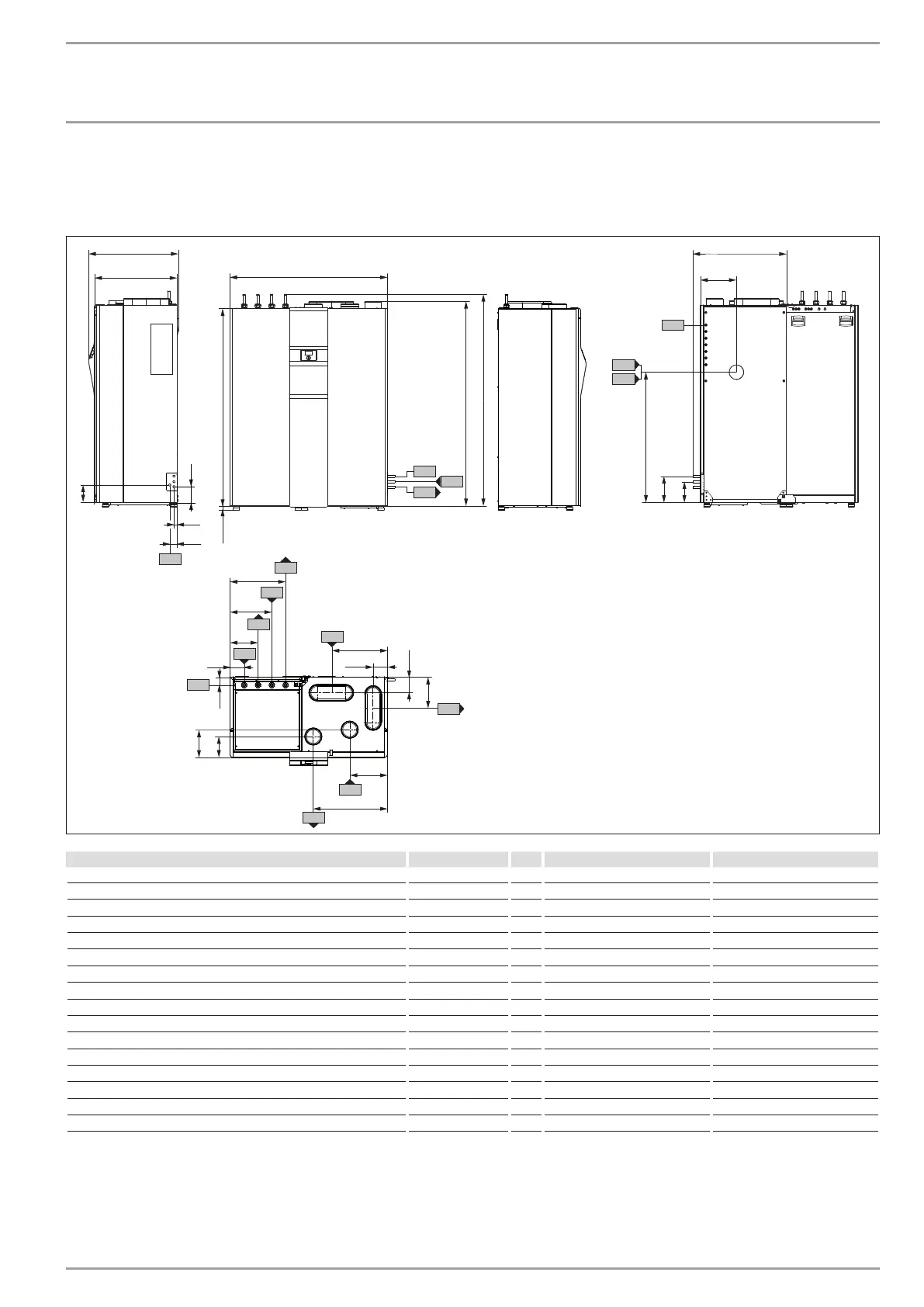

10.1 Dimensions and connections
70
30
130
130
255
380
505
75
187
145
510
343
675
1916
243
248
1180
334
283
289
35-45
1790
1430
850
1850
812
750
g04
g09
g07
g03
e02
c01
c09
g06
g05
e01
c06
d25
c12
d26
d45
193
203
b01
D0000038613
 
b01 Entry electrical cables
c01 Cold water inlet Diameter mm 22 22
c06 DHW outlet Diameter mm 22 22
c09 Entry DHW circulation
c12 Safety valve drain Diameter mm 19 19
d25 Solar flow Diameter mm 22 22
d26 Solar return Diameter mm 22 22
d45 Condensate drain Diameter mm 22 22
e01 Heating flow Diameter mm 22 22
e02 Heating return Diameter mm 22 22
g03 Outdoor air Nominal diameter DN 315 DN 315
g04 Exhaust air Nominal diameter DN 315 DN 315
g05 Extract air Nominal diameter DN 160 DN 160
g06 Supply air Nominal diameter DN 160 DN 160
g07 Outdoor air geothermal heat exchanger Nominal diameter DN 160 DN 160
g09 Outdoor air mechanical ventilation opt. Nominal diameter DN 160 DN 160
