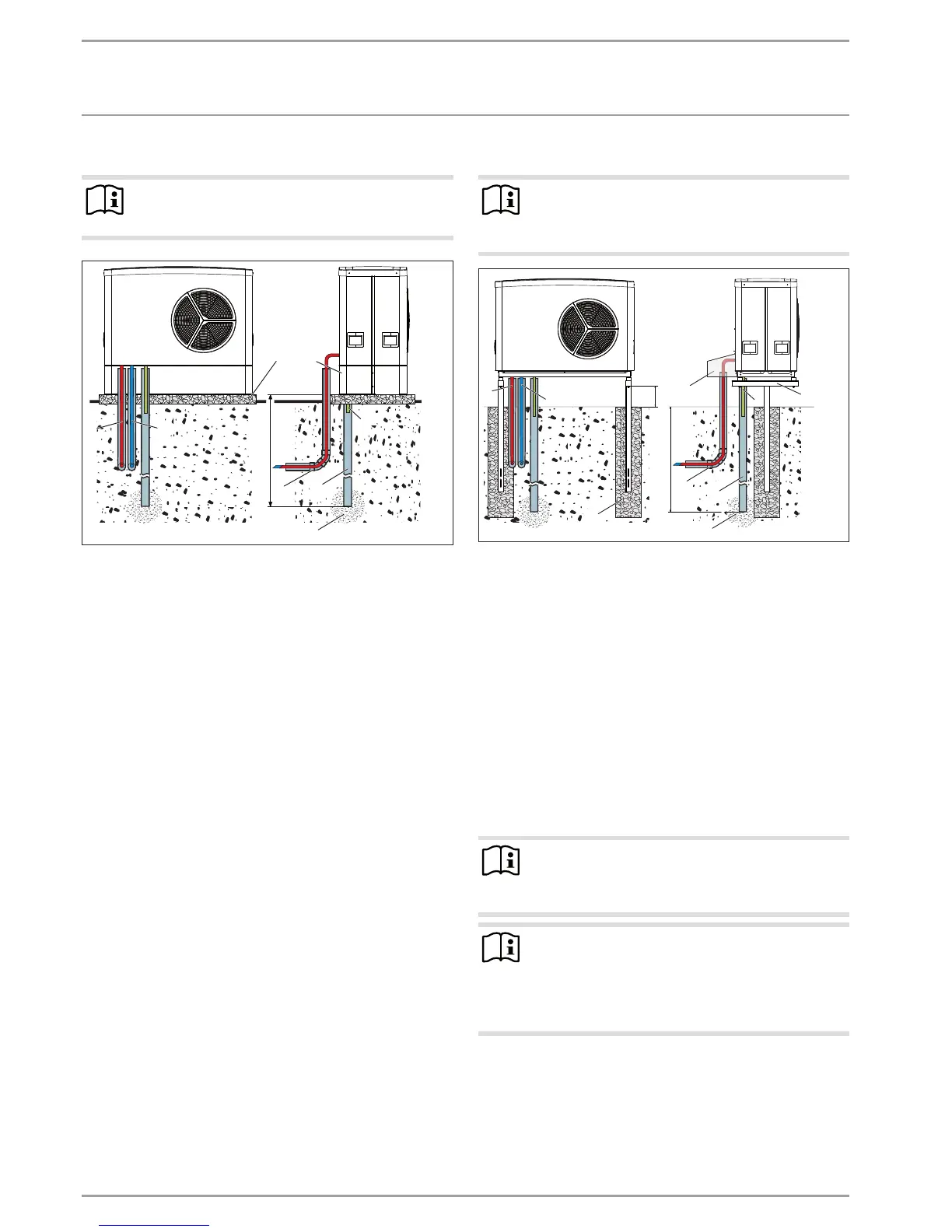

MK 1 mounting bracket (WPL15AS | WPL15ACS only)
Note
The mounting bracket cannot be used in combination
with the connection sets (AS-WP1 and AS-WP2).
7
6
1
A
8
3
1
2
4
5
D0000060818
A Depth of frost line
1 Heating flow
2 Heating return
3 Conduit for supply lines
4 Foundation
5 Mounting bracket
6 Gravel bed
7 Condensate drain conduit
8 Condensate drain
9.5.2 T-support SK1
Note
 Install a ribbon heater when mounting on the wall
bracket or T-support (see chapter "Electrical connec-
tion/ Ribbon heater").
A
B
8
5
7
3
4
9
2
1
6
D0000050006
A Depth of frost line
B 300
1 Heating flow
2 Heating return
3 Conduit for supply lines
4 Foundation
5 T-support
6 Gravel bed
7 Condensate drain conduit
8 Condensate drain
9 Cover
 Observe the structural limits of the T-support used.
 See the dimensioned connection drawing for the correct
spacing between holes (see chapter "Specification/ Dimen-
sions and connections").
9.5.3 WK 2 wall mounting bracket
Note
 Install a ribbon heater when mounting on the wall
bracket or T-support (see chapter "Electrical connec-
tion/ Ribbon heater").
Note
To prevent disturbance due to structure-borne noise
transmission, never install the wall mounting bracket on
the external walls of living areas or bedrooms.
 Install the wall mounting bracket on a garage wall,
for example.
